Instruments - Service Interval Displays Too Early
90 10 03March 16, 2010
2022844

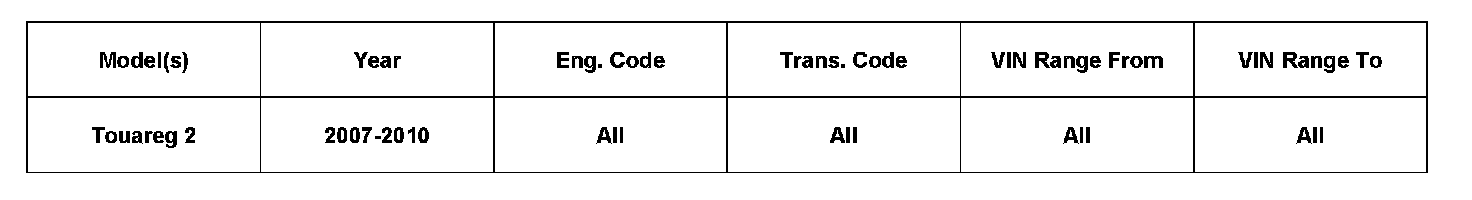

Vehicle Information
Condition
Instrument Cluster, Service Interval Displays Too Early
Oil service light appears prematurely in instrument cluster.
Technical Background
At the last service, the service interval display was incorrectly reset (Base 15.00).
The text in adaptation channels 42 and 43 may be incorrect. (Shows the multiplier is 1000km).
The actual multiplier is 100 km.
DO NOT change minimum value in channel 42, and the maximum value in channel 43, because of the wrong text (in 1000 km).
For example:
In adjustment channel 43, if you change 300 to 30, this would mean that the display will come on after 3000 km instead of 30000 km.
This leads to an unnecessary workshop visit, where the values will need to be corrected.
Production Solution
No production change required.
Service
^ Adjust channels 42 and 43 manually via the self-diagnosis, address: 17 dash insert.
^ Proceed as follows in the self-diagnosis:
^ Address: 17 dash insert
^ Adjustment channels
^ Change value for adjustment channel 42 to 150 and for channel 43 to 300.
Note:
Do not reset the service interval and perform unnecessary oil changes.
Warranty
Information only.
Required Parts and Tools
No Special Parts required.
No Special Tools required.
Additional Information
All part and service references provided in this Technical Bulletin are subject to change and/or removal. Always check with your Parts Dept. and Repair Manuals for the latest information.
