Lighting - HID Headlamp Cornering Lamps Inoperative

9409-01

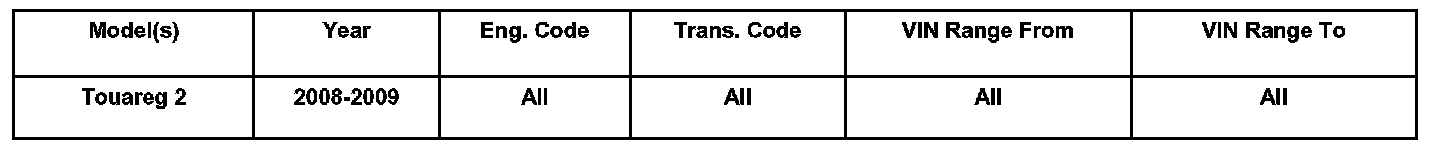

Affected Vehicles

Condition
94 09 01 Jan. 20, 2009 2019848

HID Headlamps, Cornering Bulb Inoperative

Halogen cornering bulb for HID headlight assembly is inoperative. Bulb icon illuminated in instrument cluster.

Technical Background
GFF fault codes for open circuit Left or Right cornering lamp may lead to unnecessary replacement of headlamp assembly.

Production Solution
Scan tool software update version 14.92.00 will contain an updated test plan.

Service
Check the cornering light bulb for an open circuit prior to any further diagnosis of headlight assembly.

Warranty
Information only.

Required Parts and Tools
No Special Parts required.
No Special Tools Required.

Additional Information
All part and service references provided in this Technical Bulletin are subject to change and/or removal. Always check with your Parts Dept. and Repair Manuals for the latest information.
