Cabin Air Filter / Purifier: Service and Repair

Dust and Pollen Filter

Note: There are different versions of the dust and pollen filter (without and with filter insert with activated charcoal).

Removal





- Remove the plastic screws -2- and the partition -1-.

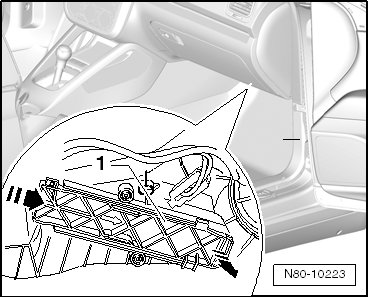

- Release cover -1- in direction of arrow.

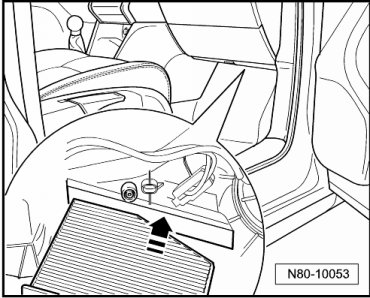

- Remove dust and pollen filter downward out of heater.

Installation





- Note installation position of dust and pollen filter.
- Install in reverse order of removal.
