Cabin Air Filter / Purifier: Service and Repair

Dust and Pollen Filter

Removing

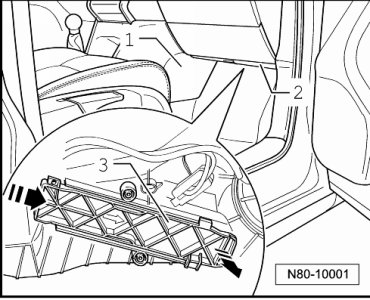

- Remove the trim panel from the front passenger side footwell -1-.
- Remove the partition -2- from the heater.
- Release cover -3- in direction of arrow.
- Remove dust and pollen filter downward out of heater.

Installing






- Install in reverse order of removal.

Note: Note installation position of dust and pollen filter.
