Engine Controls - MIL ON, Various DTC's Stored

01 12 35

December 17, 2012

2030455 *Supersedes T.B. V011229 dated October 2, 2012 to include VIN ranges and an additional DTC, P00AF.*





Vehicle Information

Condition

Update Programming MIL ON DTCs P00AF, P0606, P1388 and or P2201 Stored in ECM Fault Memory

MIL ON with NOx Sensor fault P2201 and/or Engine Control Module faults P000AF, P1388, P0606 stored in fault memory.

Technical Background

Nox sensor diagnostic strategy and ECM monitoring too sensitive.

Production Solution

Improved ECM software with revised diagnostic and monitoring strategies implemented into production

Service

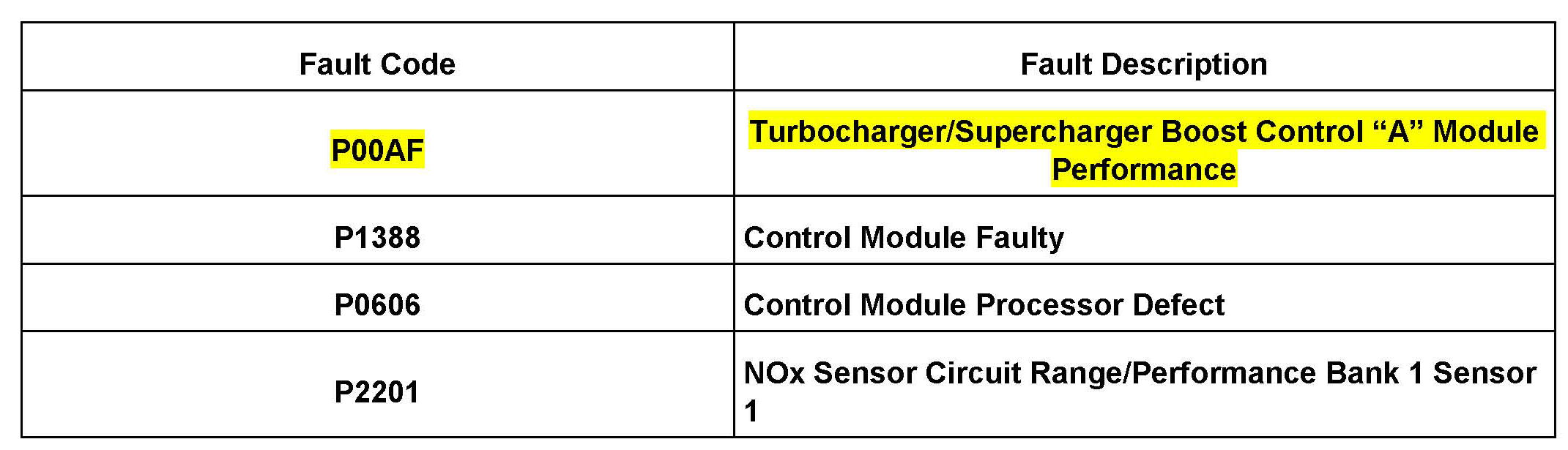

One or more of the following fault codes may be stored in the ECM Fault Memory:

Note:
DO NOT diagnose or replace any parts before performing the update function as explained in this bulletin.

Update-Programming Procedure:

Tip:
To Update-Programming using SVM, review and follow instructions in Technical Bulletin Instance 2014603 "Software Version Management".

The SVM Process must be completed in its entirety so the database receives the update confirmation response. A warranty claim may not be reimbursed if there is no confirmation response to support the claim.

Note:
Prior to launching VAS-PC application and starting control module update process, confirm tester screen saver and power settings in accordance with Special Tools and Equipment - Service Information Circular # VVT-12-02. Failure to do so may result in the tester entering power save mode during data transfer, and subsequent control module failure.

When using a VAS 6150/5051B or VAS 5052A tester in conjunction with a VAS 5054A wireless transmitter head for a flash procedure, please connect a USB cable between the transmitter head and the tester. Failure to do so may lead to errors during the flash procedure.

VAS tools must only be used with their power adapters plugged in. Under no circumstances should they be used on battery power alone during the programming procedure.

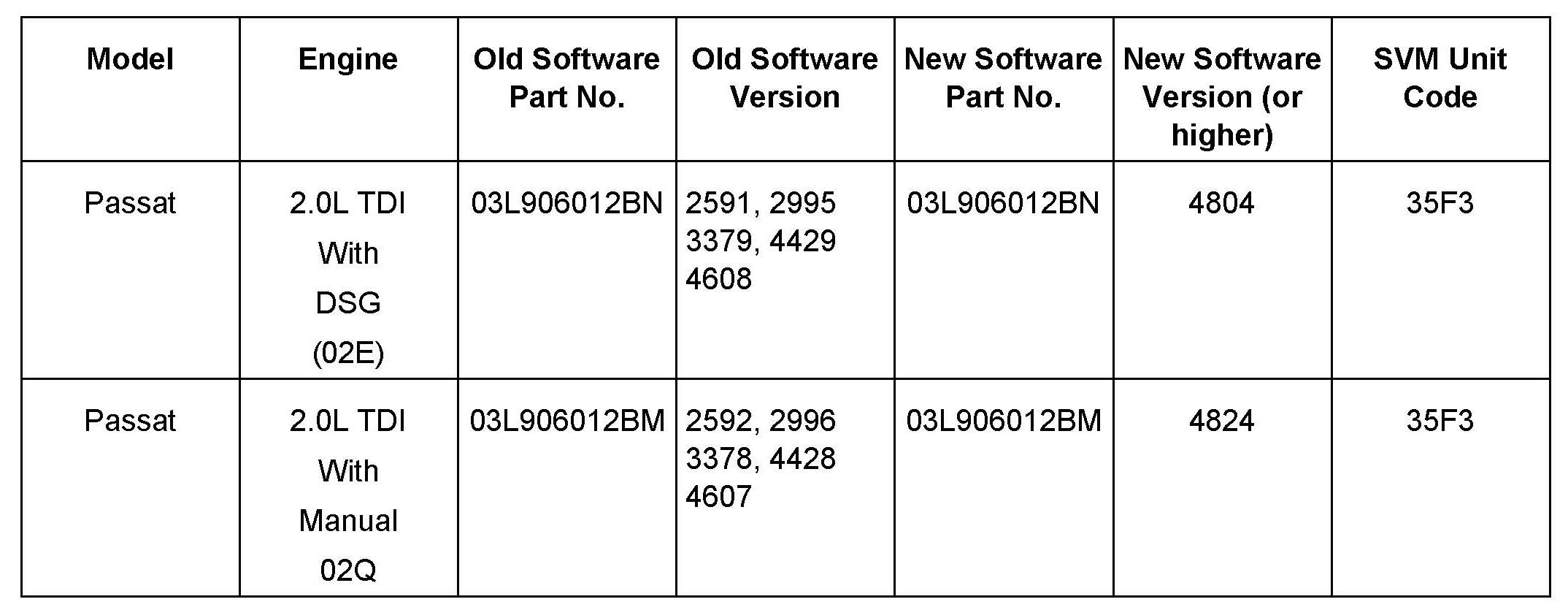

^ Update the Engine Control Module using the SVM Unit code as listed in the table.





The procedure can be found in GFF under Functions/ Component Selection, Software Version Management, Adapting Software.

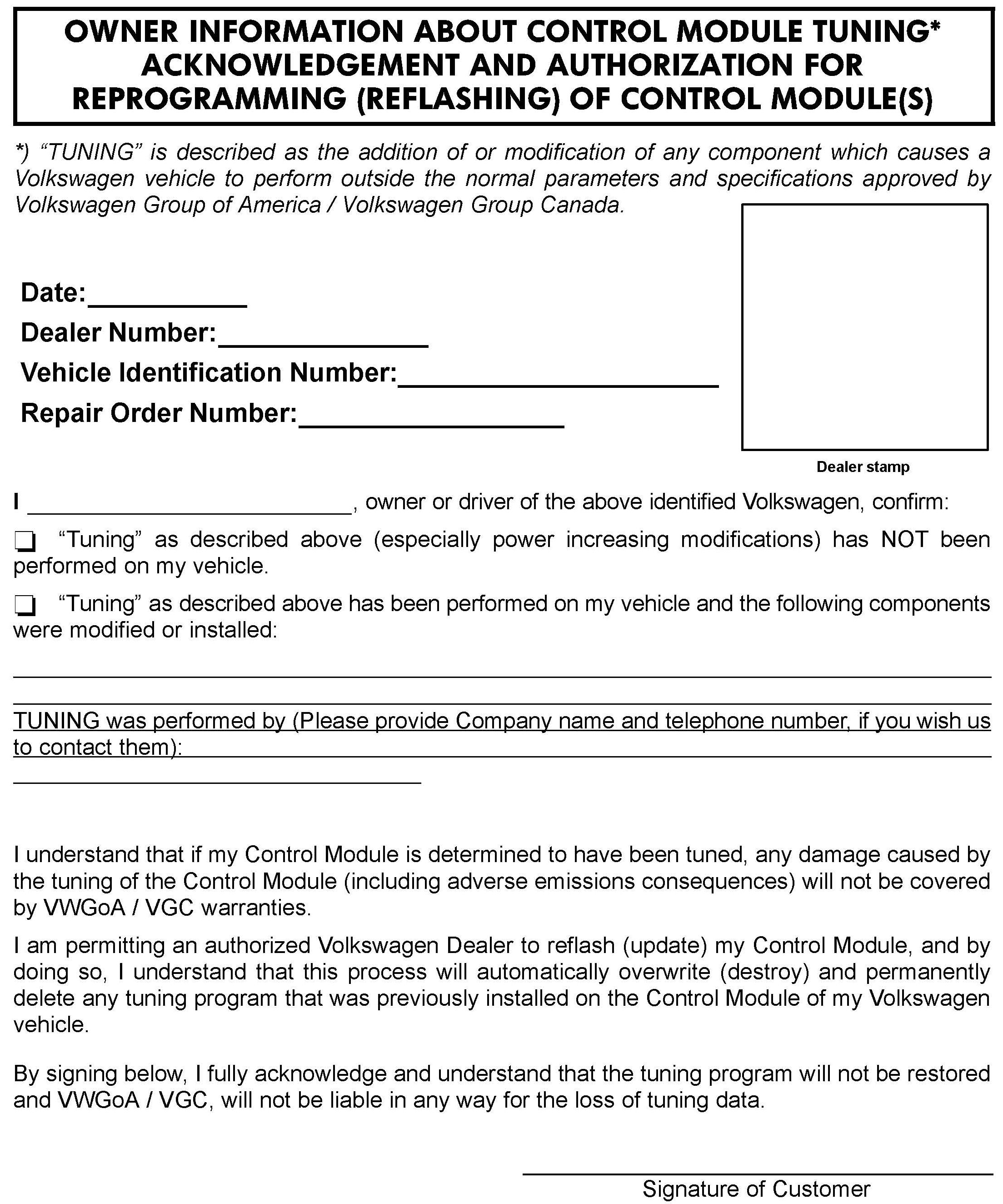

Ensure ECM/TCM Tuning Form has been completed and signed by customer as required in SVM Technical Bulletin Instance 2014603.

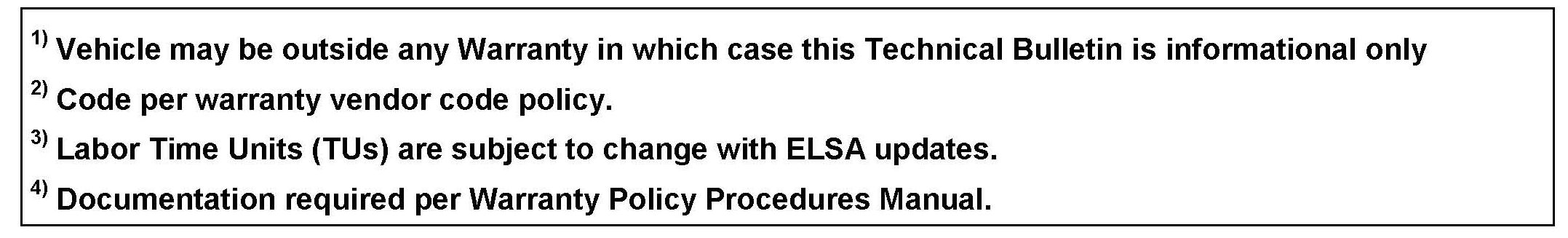

Warranty

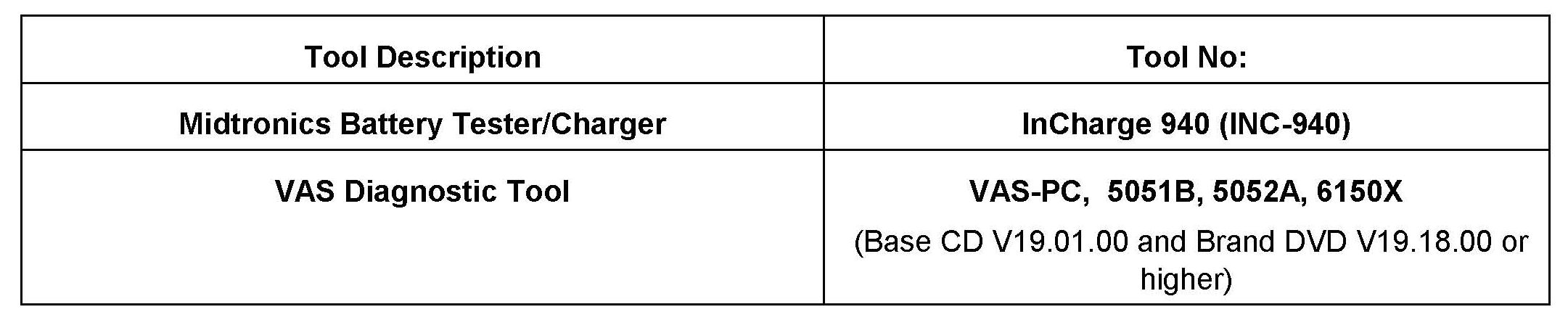

Required Parts and Tools





No Special Parts required.

Additional Information

All part and service references provided in this Technical Bulletin are subject to change and/or removal.
Always check with your Parts Dept. and Repair Manuals for the latest information.
