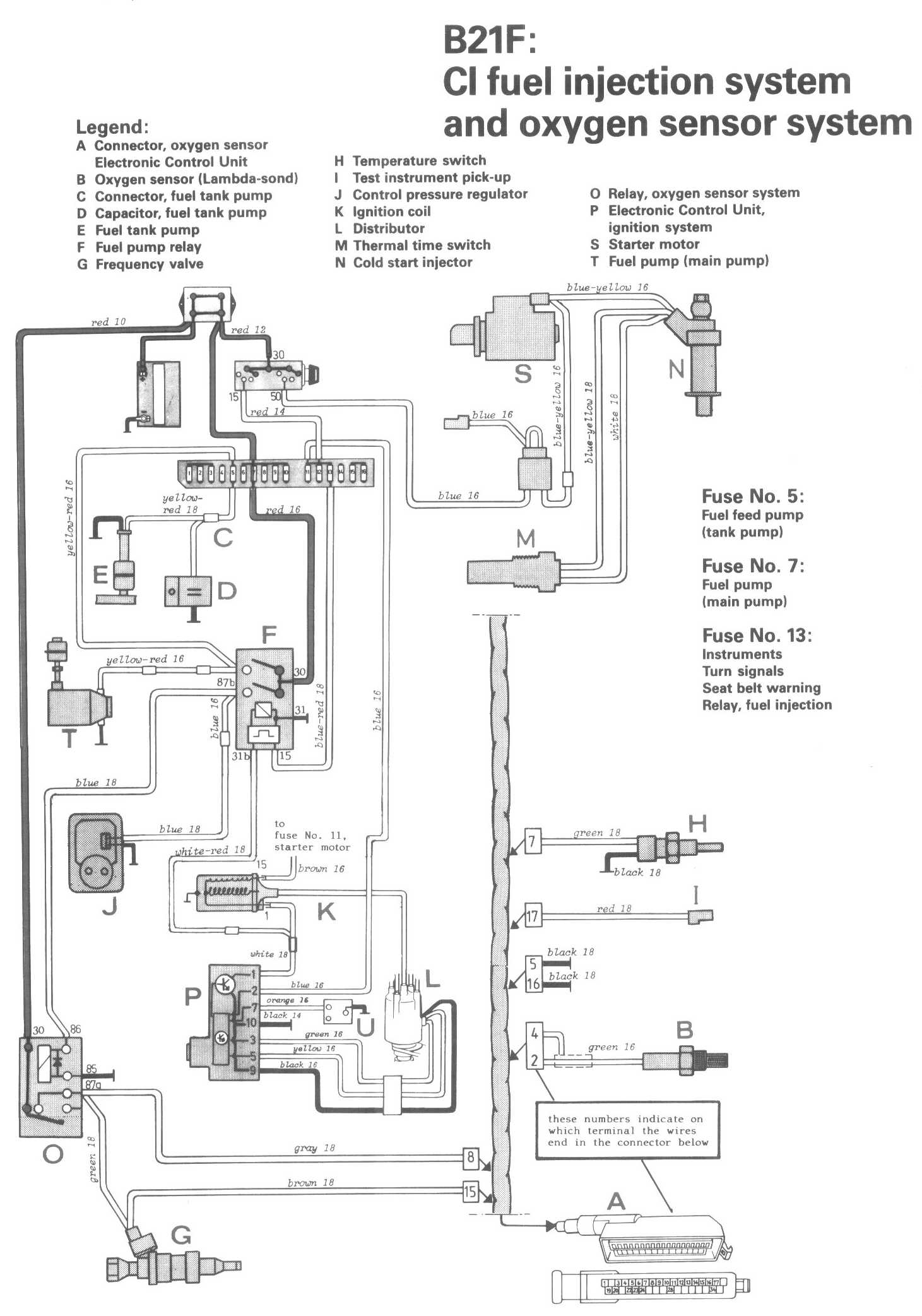

CI Fuel Injection System

Locations/Connector Views:

Diagrams:

Conditions 1:

Conditions 2:

Legend:
A Connector, oxygen sensor Electronic Control Unit
B Oxygen sensor (Lambda-sond)
C Connector, fuel tank pump
D Capacitor, fuel tank pump
E Fuel tank pump
F Fuel pump relay
G Frequency valve
H Temperature switch
I Test instrument pick-up
J Control pressure regulator
K Ignition coil
L Distributor
M Thermal time switch
N Cold start injector
O Relay, oxygen sensor system
P Electronic Control Unit, ignition system
S Starter motor
T Fuel pump (main pump)
