Air Conditioning Components

Locations/Connector Views:

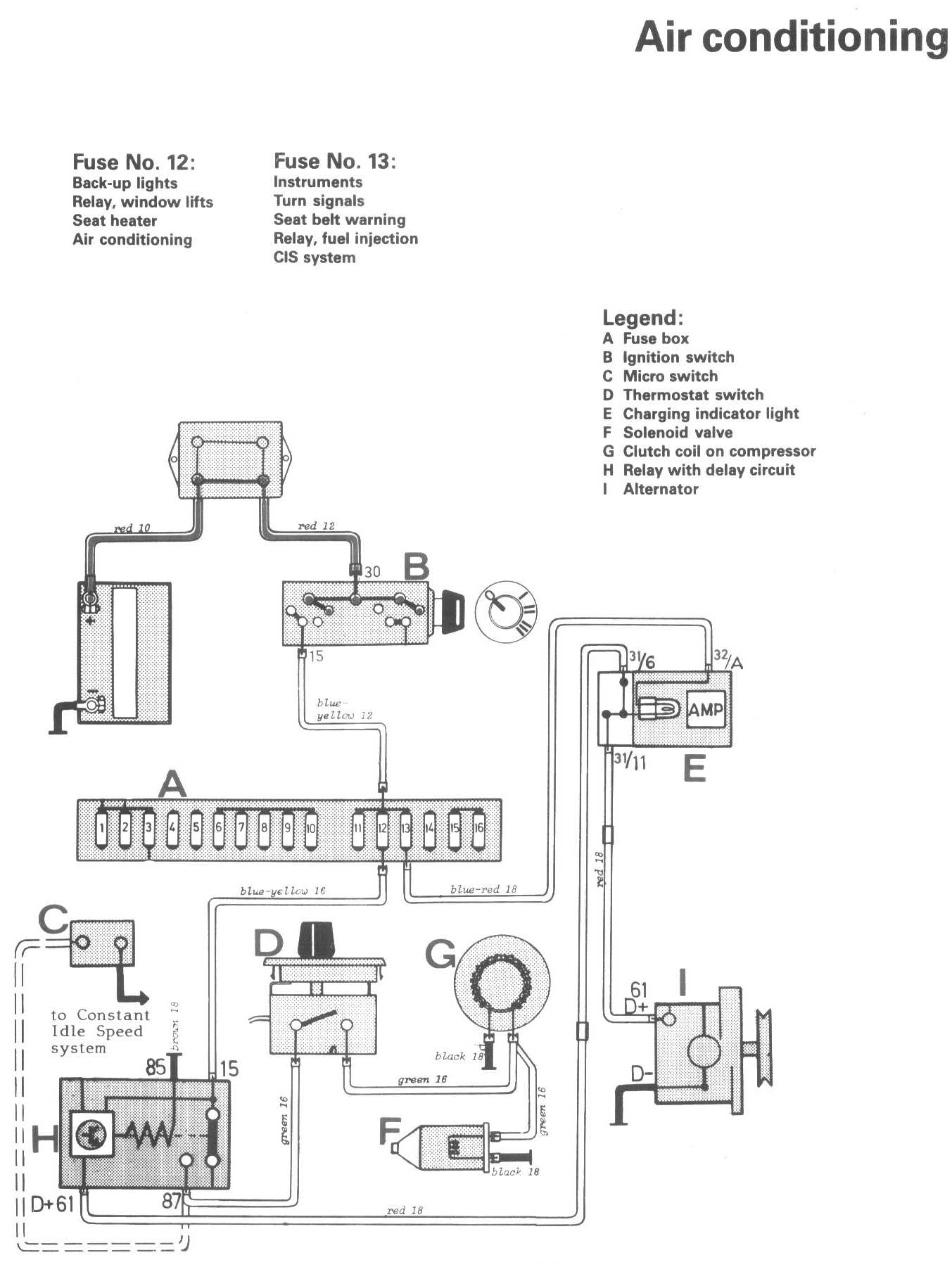

Diagrams:

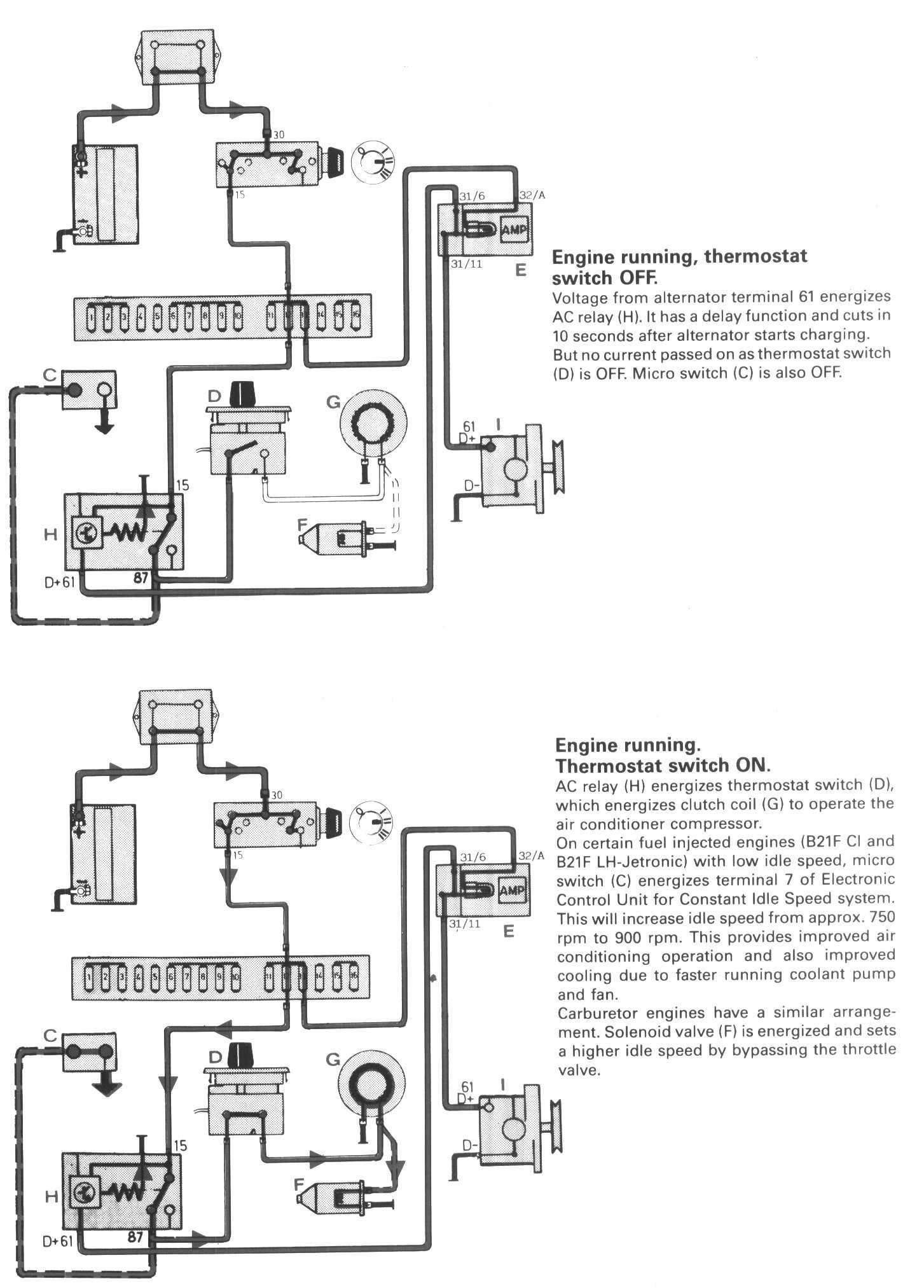

Operation Modes 1:

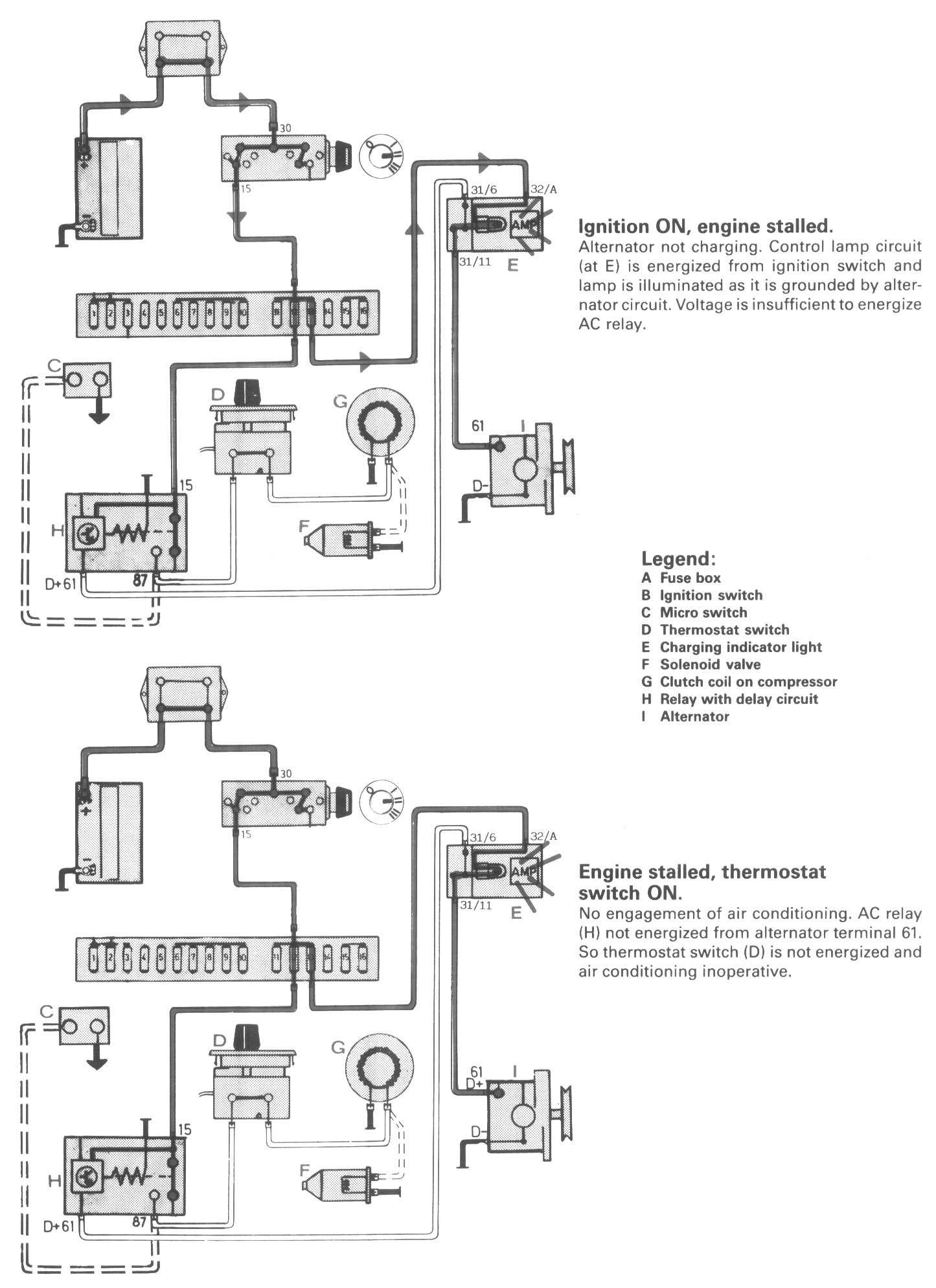

Operation Modes 2:

Legend:
A Fuse box
B Ignition switch
C Micro switch
D Thermostat switch
E Charging indicator light
F Solenoid valve
G Clutch coil on compressor
H Relay with delay circuit
I Alternator
