System Diagram

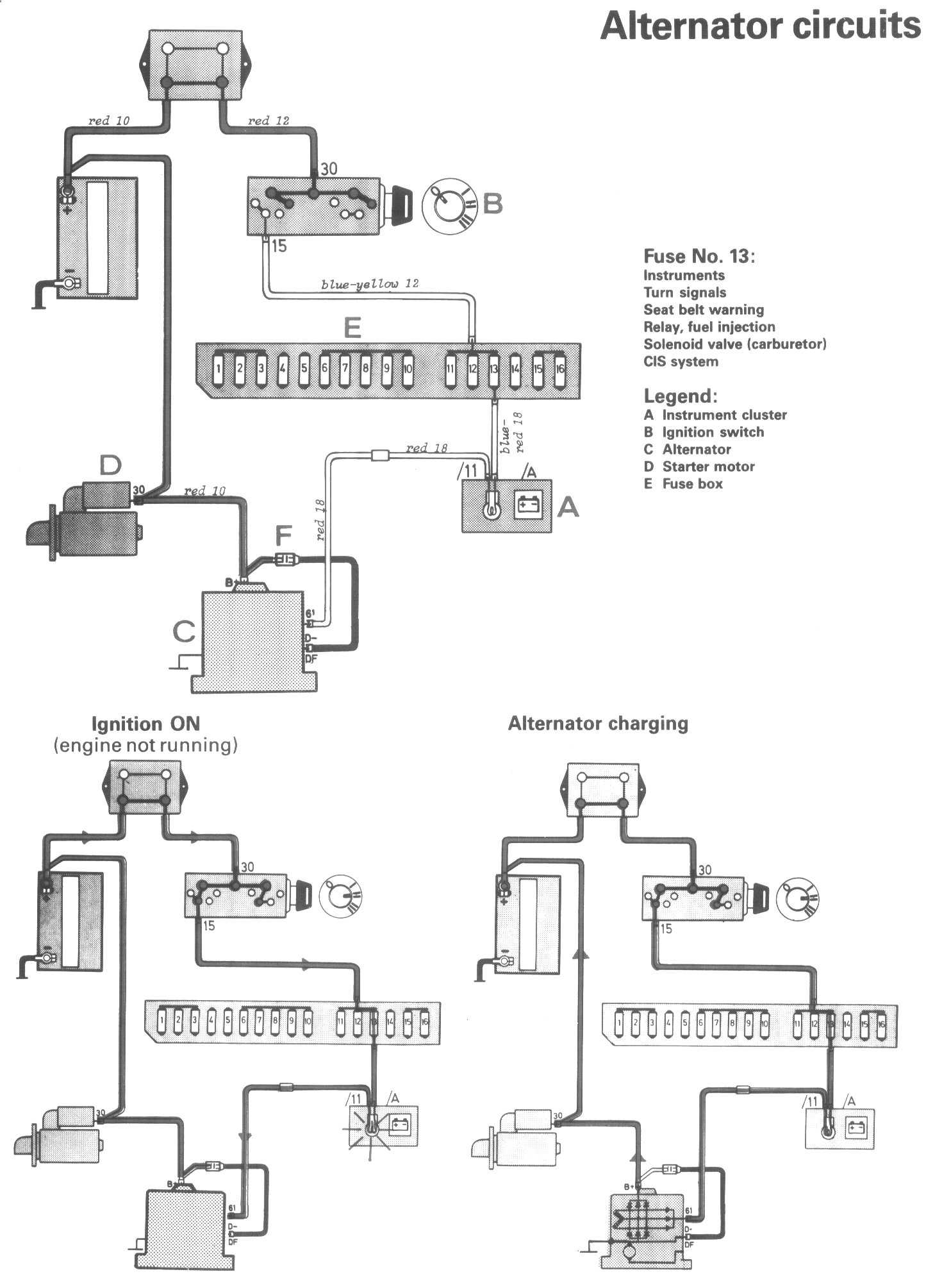

Diagrams:

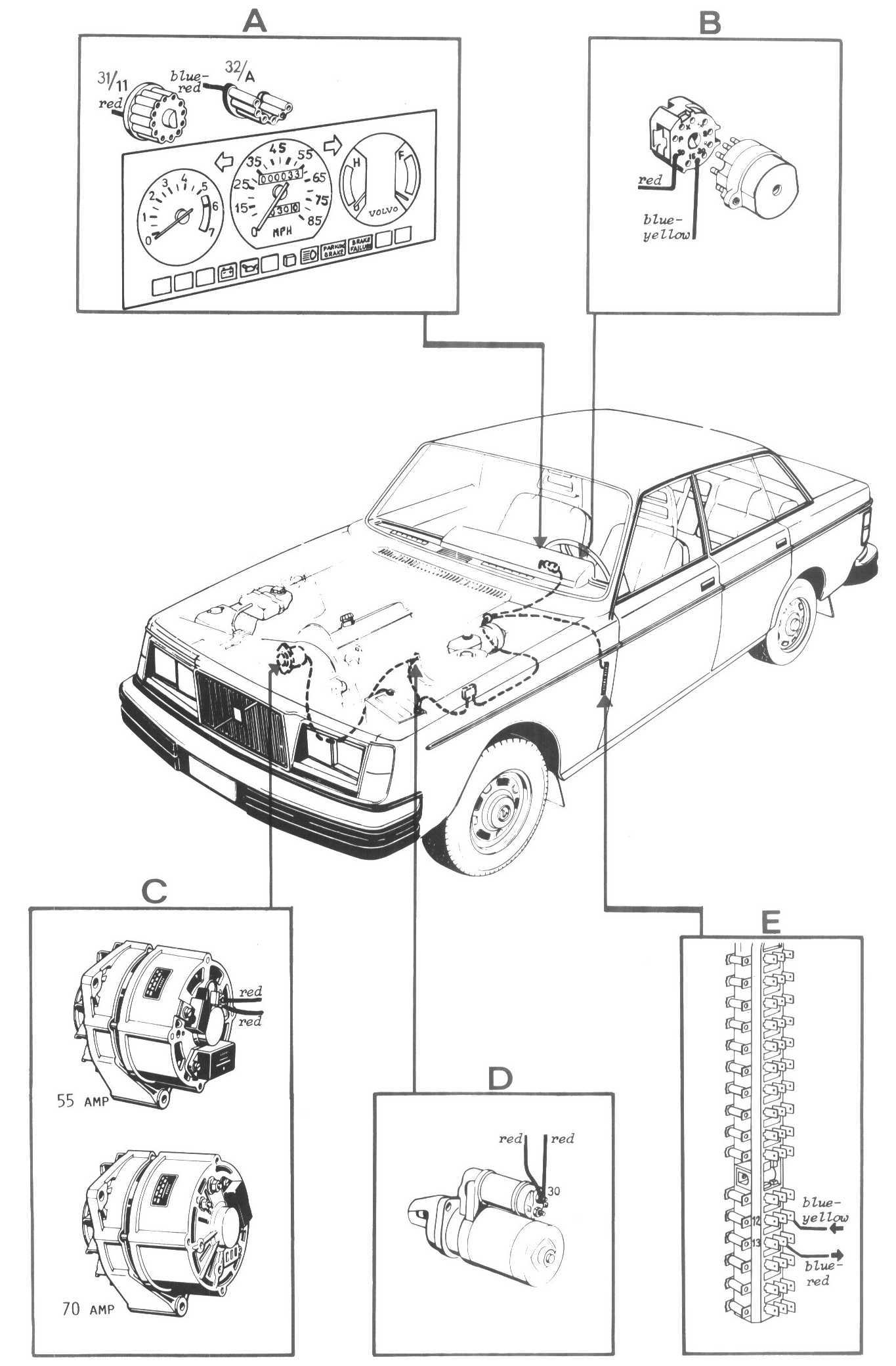

Locations/Connector Views:





Legend:
A Instrument cluster
B Ignition switch
C Alternator
D Starter motor
E Fuse box
