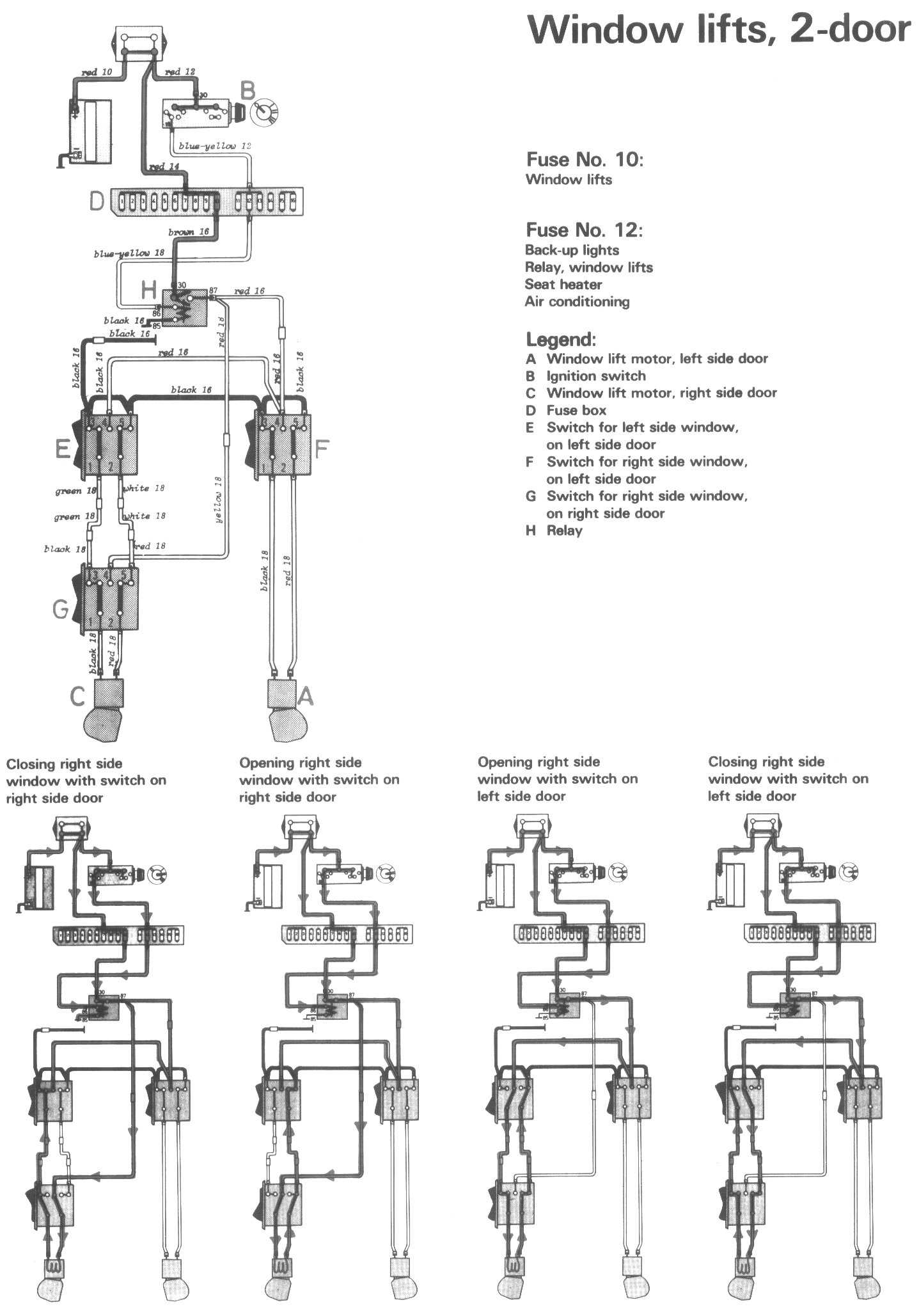

Window Lifts, 2-Door

Diagrams:

Locations/Connector Views:

Legend:
A Window lift motor. left side door
B Ignition switch
C Window lift motor, right side door
D Fuse box
E Switch for left side window, on left side door
F Switch for right side window. on left side door
G Switch for right side window, on right side door
H Relay
