Window Lifts, 4-Door

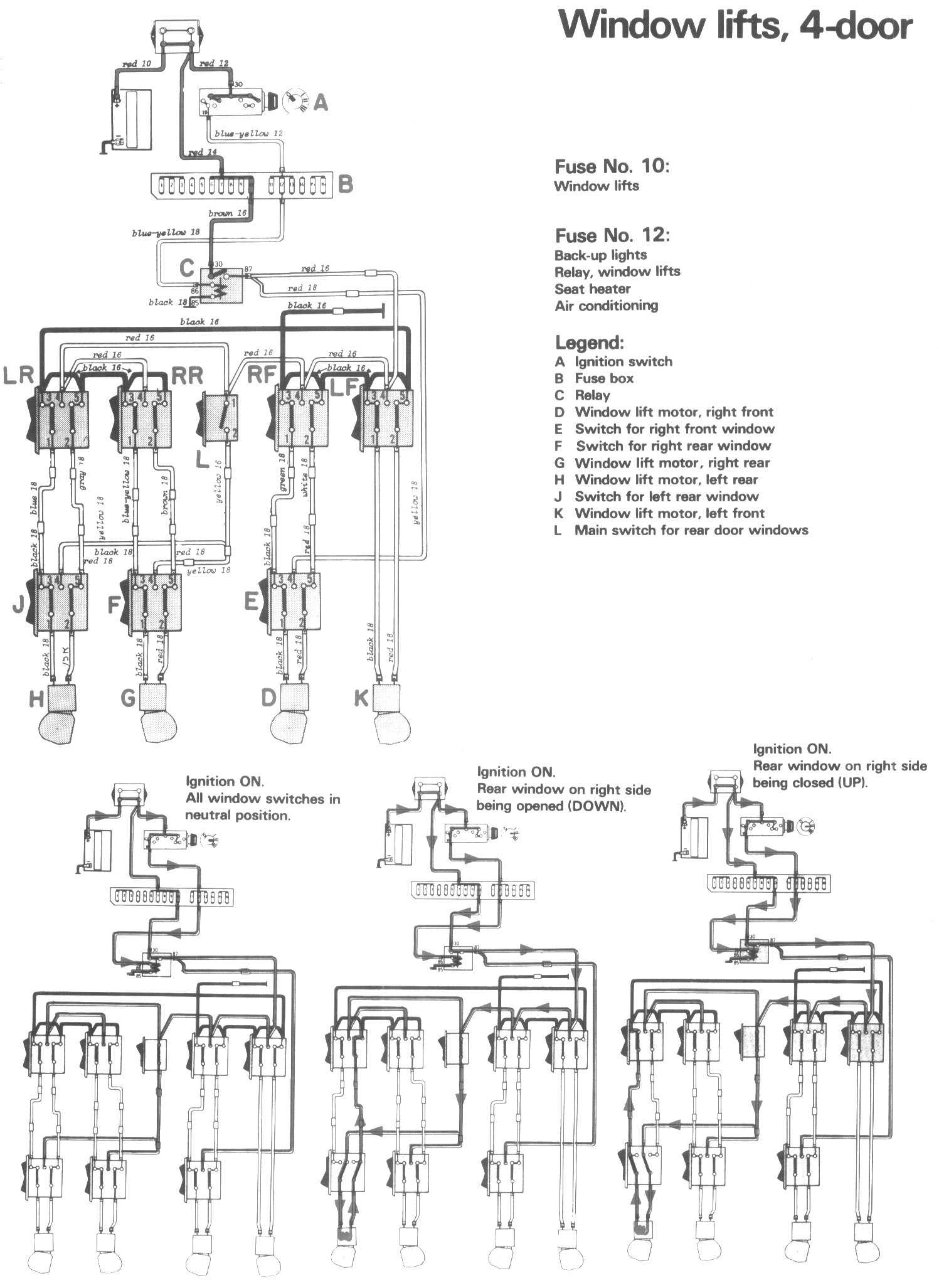

Diagrams:

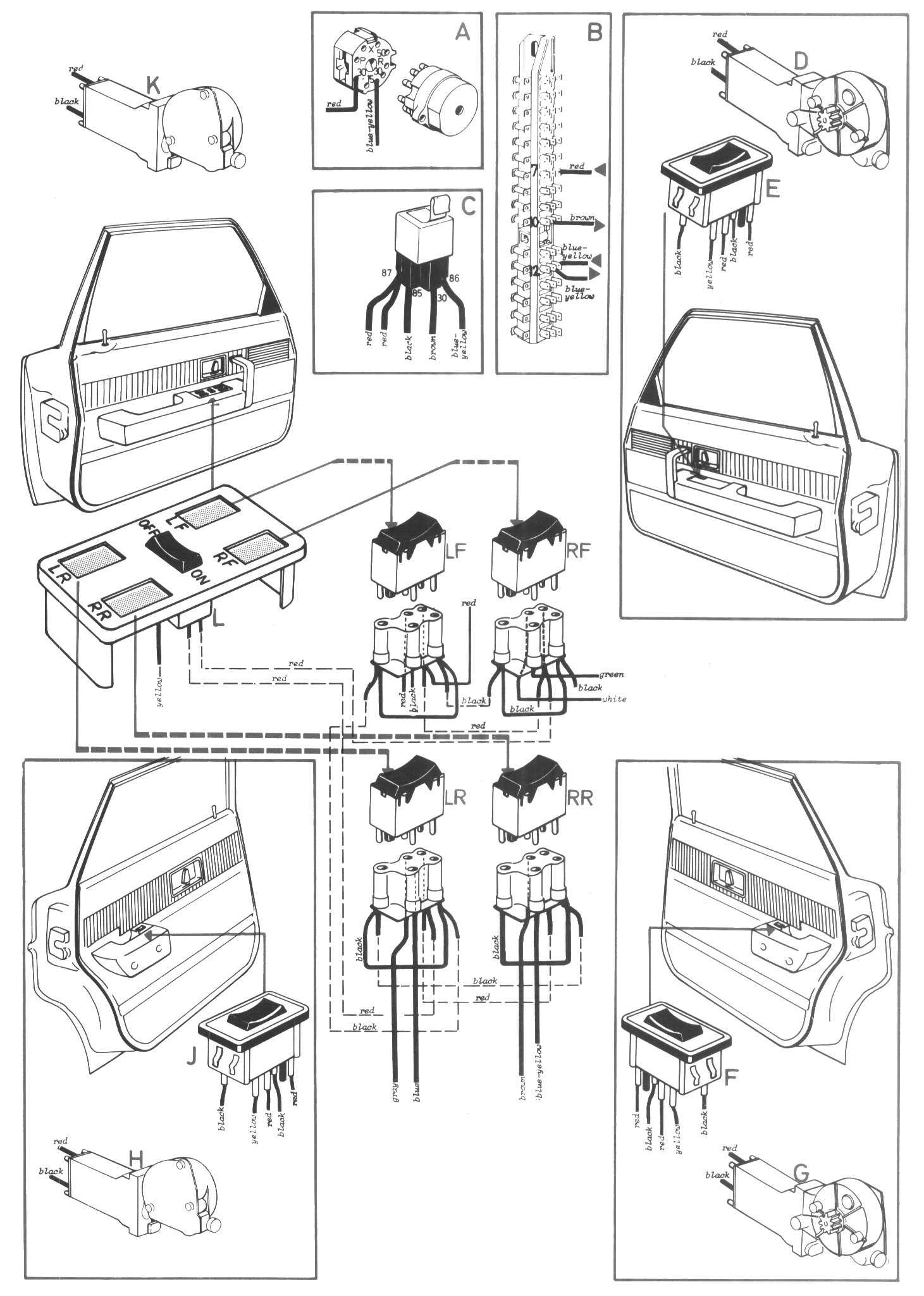

Locations/Connector Views:

Legend:
A Ignition switch
B Fuse box
C Relay
D Window lift motor, right front
E Switch for right front window
F Switch for right rear window
G Window lift motor, right rear
H window lift motor. left rear
J Switch for left rear window
K Window lift motor, left front
L Main switch for rear door windows
