Relays

RELAY LOCATIONS - INSIDE VEHICLE / ENGINE COMPARTMENT.

NOTE: Relay Location information is given in this format:

Relay I.D. Number / Relay Name / (Application Data).

Bold Numbers / Name / (In Parentheses)

To find a relays' location, browse the relay name / application list until subject relay is found. Then note the relays' I.D. number given at left. Search the location image for the relay I.D. number, the coresponding relay location will then be seen.

Relay Location:

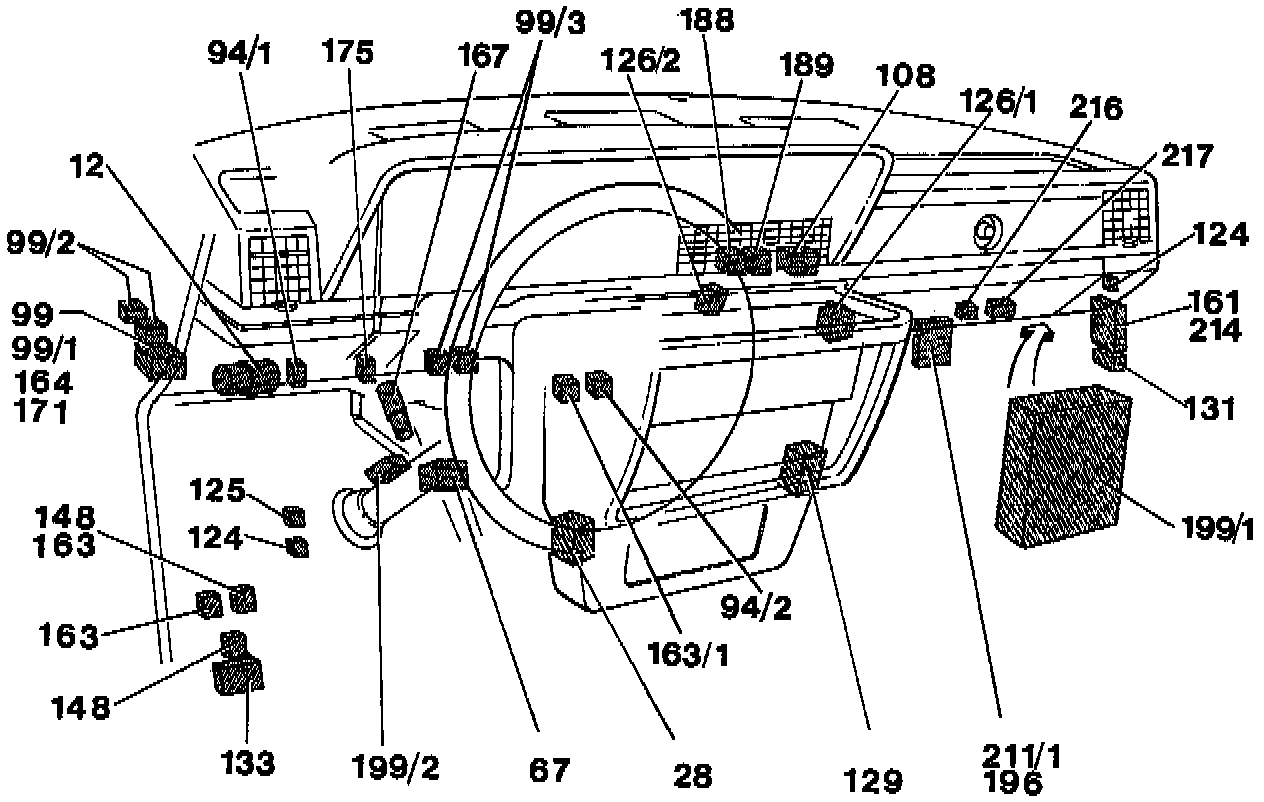

Relays Inside the Vehicle

I.D. / Relay Name / (Application)
_______________________________________________

2 / Positive battery junction box

12 / Bulb failure warning sensor

28 / Turn signal relay

67 / Lights on warning buzzer / (up to 1980)

94/1 / Seat belt reminder / (USA only)

94/2 / Seat belt reminder / (from 1980)

99 / Fuel pump relay / (1981 to 1985 Turbo)

99/1 / Fuel pump relay / (up to 1979)

99/2 / Fuel pump relay / (1976 and 1977)

99/3 / Fuel pump relay / (1975)

108 / Overdrive relay

124 / Main lighting relay / (up to 1985)

125 / Rear foglamp relay / (up to 1986)

126/1 / Power window relay / (up to 1980)

126/2 / Power window relay / (up to 1984)

129 / Air conditioning relay

131 / Constant Idle Speed control unit / (up to 1985)

133 / Dim-dip regulator / (Great Britain only)

148 / Windshield wiper intermittent relay

156 / Auxiliary lights or foglamp relay

161 / Oxygen sensor (Lambdasond) control unit / (up to 1985)

163 / Rear wiper intermittent relay / (from 1980)

163/1 / Rear wiper intermittent relay / (up to 1980)

167 / Time delay relay, interior lighting

168 / Electric radiator fan / (260 & Turbo up to 1985)

171 / Upshift indicator control unit / (up to 1986)

175 / Rear window heater relay / USA (up to 1989)

188 / Central locking relay / (opening or unlocking)

189 / Central locking relay / (closing or locking)

196 / Rex I ignition system control unit

199/1 / Cruise control, main control unit / (up to 1985)

199/2 / Cruise control, main control unit / (from 1986)

211/1 / EZ-116K ignition system control unit / (from 1989)

214 / Control unit / (LH Fuel Injection system)

216 / Fuel pump relay / except Turbo (from 1984)

217 / Main system relay for LH Fuel Injection system.

====================================

Relay Location:

Relays in Engine Compartment

I.D. / Relay Name / (Application)
_______________________________________________

9/1 / Voltage regulator

13 / Stepping relay for low beams, high beams and flasher

104 / TZ-28H ignition system control unit / (Turbo up to 1985)

104/1 / Ignition system control unit / (260)

104/2 / Ignition system control unit / (260)

159 / Oxygen sensor (Lambdasond) relay / (up to 1985)

164 / Glow plug relay, D24 / (with integral 80A fuse)

165 / Glow plug relay, D24 / (from 1984)

210/1 / TZ-28H ignition system control unit / (260)

210/2 / Chrysler ignition system control unit

210/3 / Control unit relay, diesels / (from 1980)

211 / Hot start valve impulse relay / (Turbo up to 1985)

211/2 / Hot start valve impulse relay / (260 up to 1985)

212 / In-line blade fuse for Oxygen sensor (Lambda) control system

230 / Engine speed relay / (Intercooled Turbo up to 1985 only)

231 / AC cut-out relay / (Intercooled Turbo up to 1985 only).
