Electrical Diagrams
>>
Brake Warning Indicator
>>
Bulb Failure Warning Light System
Bulb Failure Warning Light System

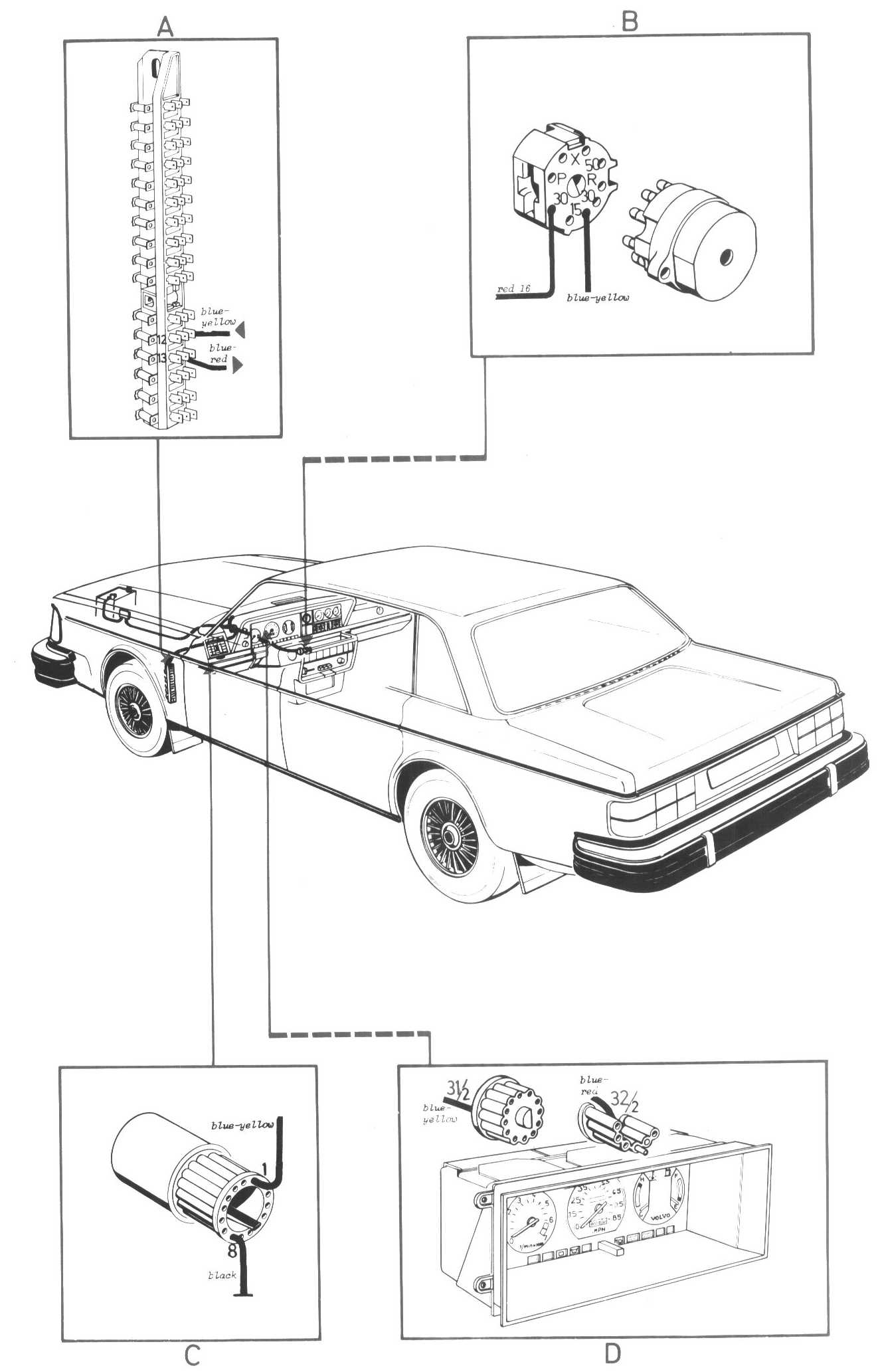

Diagrams:
Locations/Connector Views:
Legend:
A
Fuse box
B
Ignition switch
C
Bulb failure sensor
D
Bulb failure warning light
