Horn

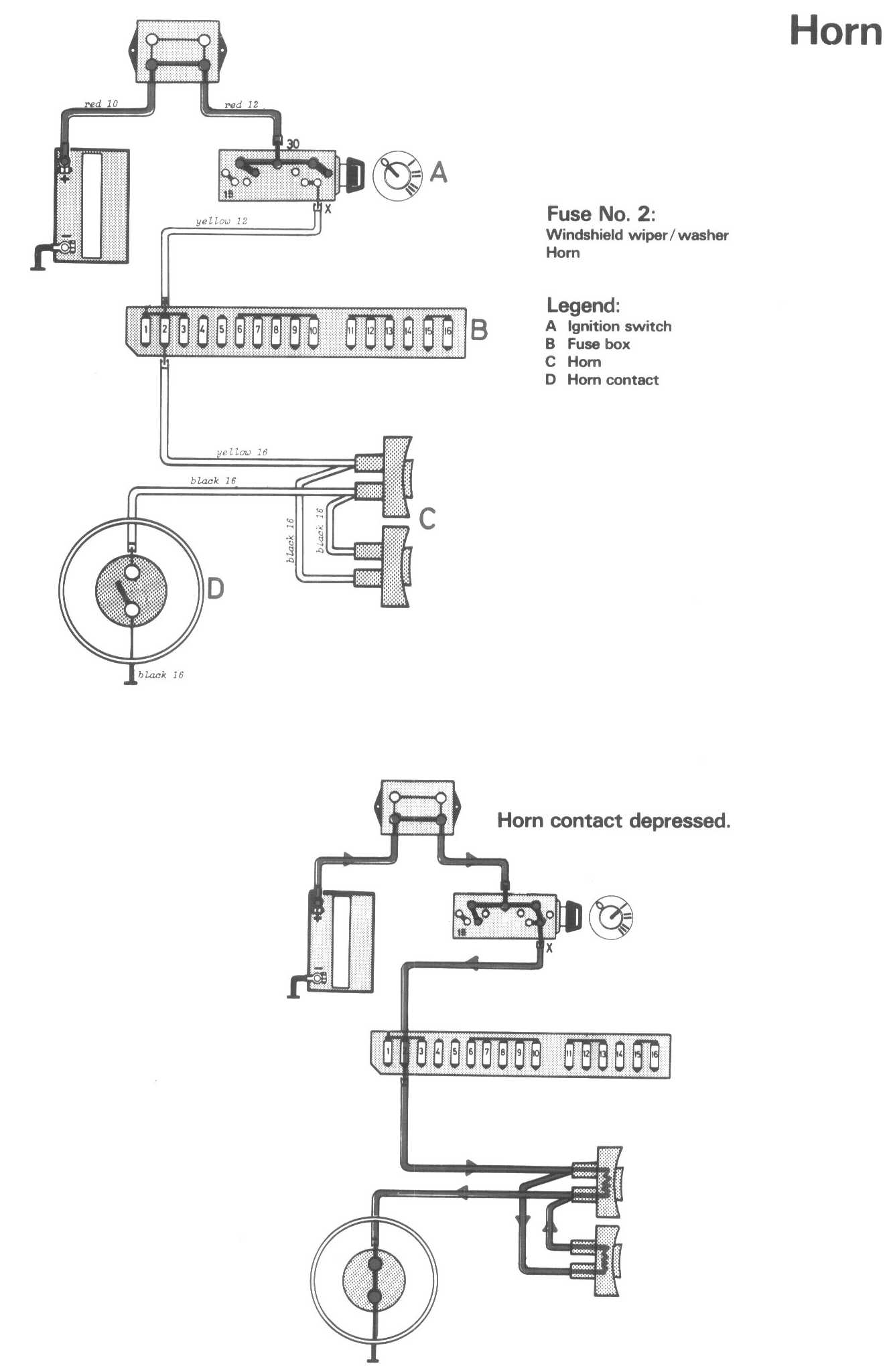

Diagrams:

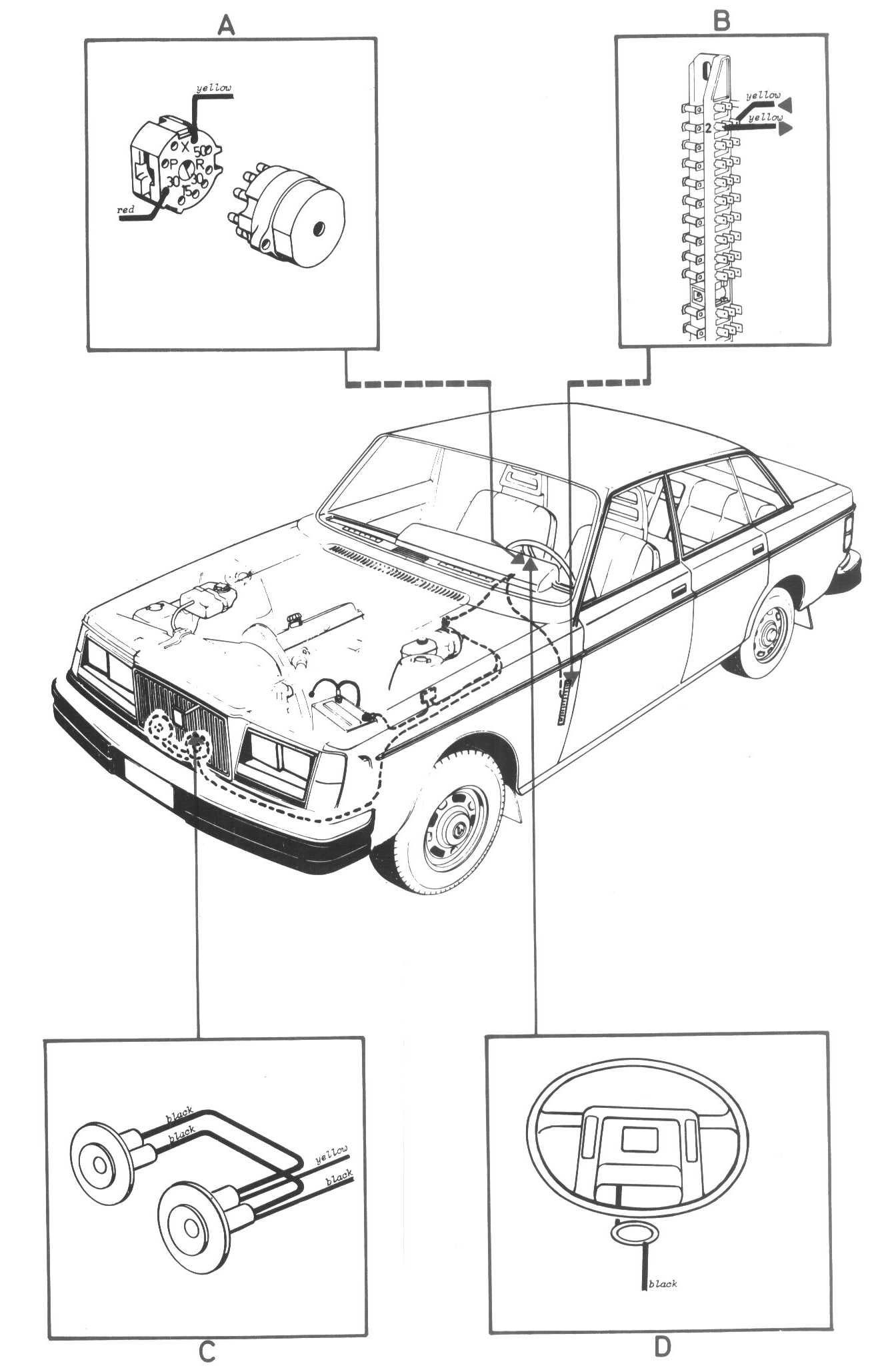

Locations/Connector Views:




Legend:
A Ignition switch
B Fuse box
C Horn
D Horn contact
