Volvo
>>
1983
>>
240 L4-2320cc 2.3L SOHC B23E (Can)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
>>
Heater Blower
Heater Blower

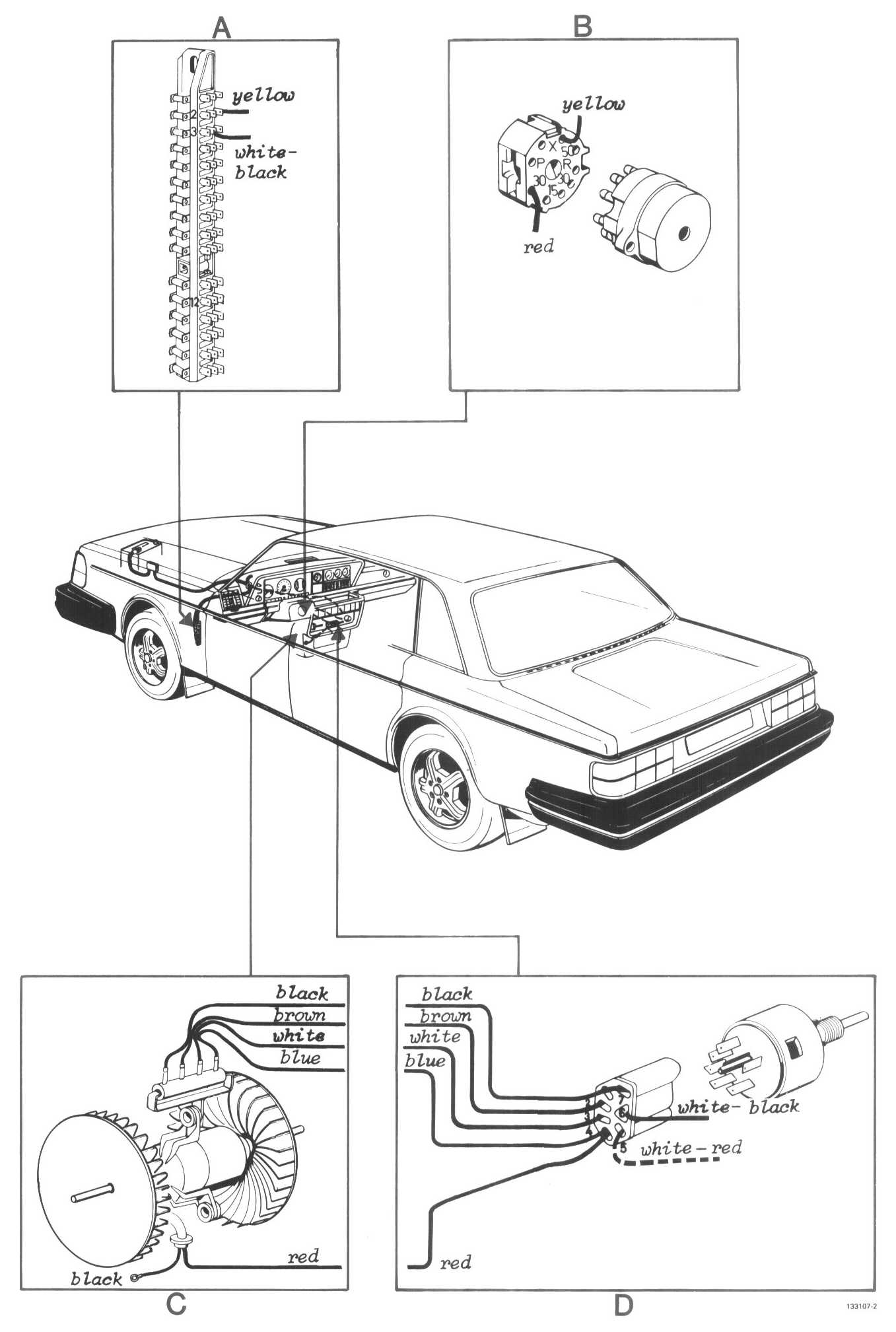

Locations/Connector Views:

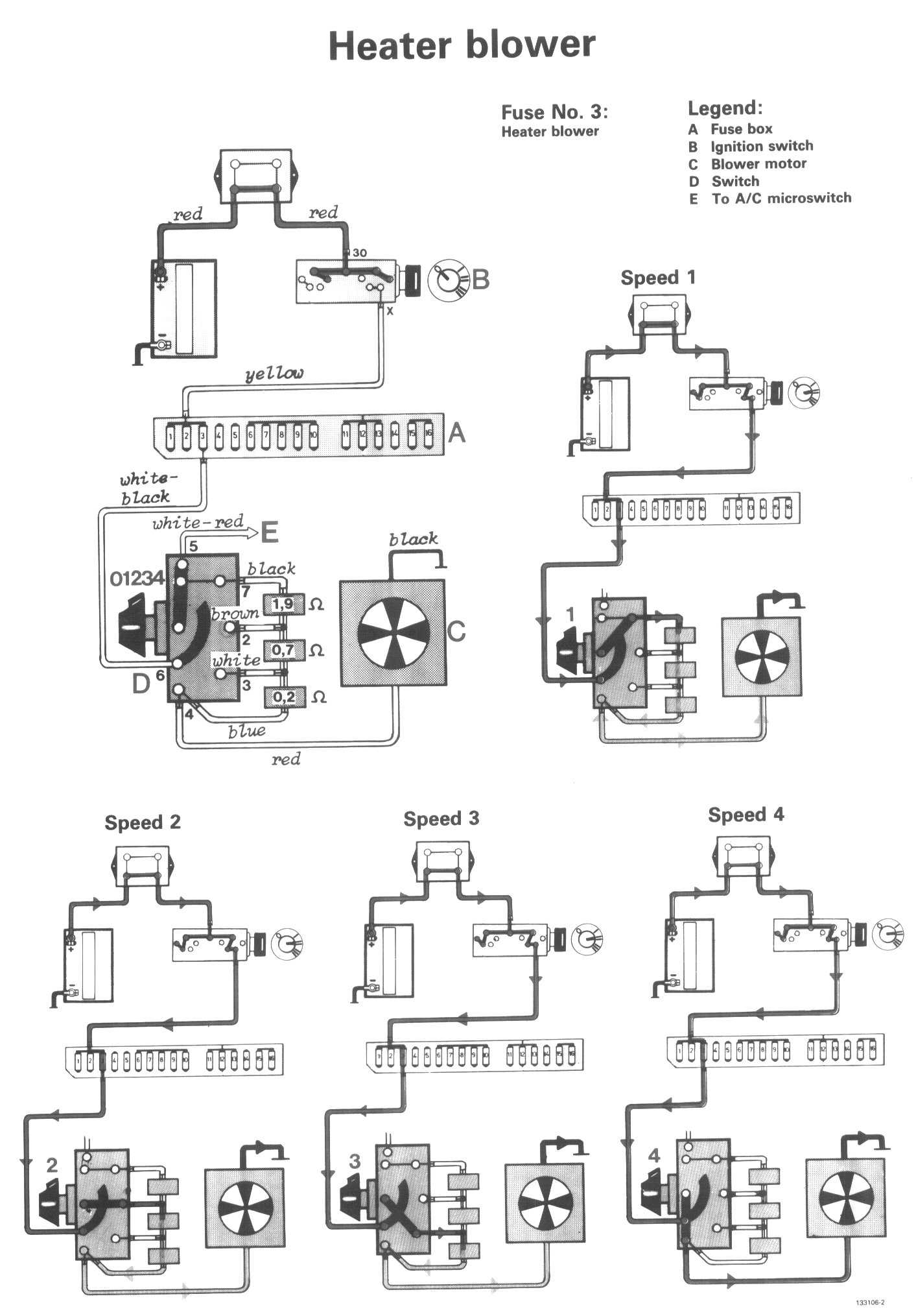

Wiring Diagrams:
Legend:
A
Fuse box
B
Ignition switch
C
Blower motor
D
Switch
E
To A/C microswitch
