Ignition System (Chrysler) - New Cable Harness

88volvo05

Subject: Product

IGNITION
CARS
SYSTEM
HARNESS,

REPLACEMENT Group

240 1980 - > 37

Date: No.
JULY 1988 11
THIS BULLETIN APPLIES TO THE U.S. AND CANADA
REFERENCE: TP 30432/4 (ENGLISH); 200 IGNITION SYSTEM


New cable harness--Chrysler ignition system

1988 M/Y 240 models are equipped with a Chrysler ignition system incorporating a new type of control unit and cable harness P/N 3515885-6.

If it is necessary to replace the cable harness on certain older vehicles, the new cable harness should be used. Note, however, the different part numbers.

M/Y 1980 :
1981 :
Use P/N 3515722-1
1982 :
1983 :

M/Y 1984 : Two different cable harnesses are available.
For cable harness P/N 1346259-3 (ignition coil located on right side), use 3515723-9. For cable harness P/N 1347847-4 (ignition coil located on left side), use 3515885-6*

M/Y 1985-> : Use P/N 3515885-6*


*A new twin-pole cable harness connector was introduced on 1987 models. When cable harness P/N 3515885-6 is installed on 1985 and 1986 models (and certain 1984 models, see chart), the twin-pole connector on the new cable harness should be cut off and removed since there is no appropriate connection to the engine wiring harness.

When replacing a cable harness, note that three pin sleeves must be removed from the control unit connector according to the method on the next page.




Disconnect battery ground cable

Cut off twin-pole connector (This applies only to 1986, 1985 and 1984 models which require replacement cable harness P/N 3515885-6.)

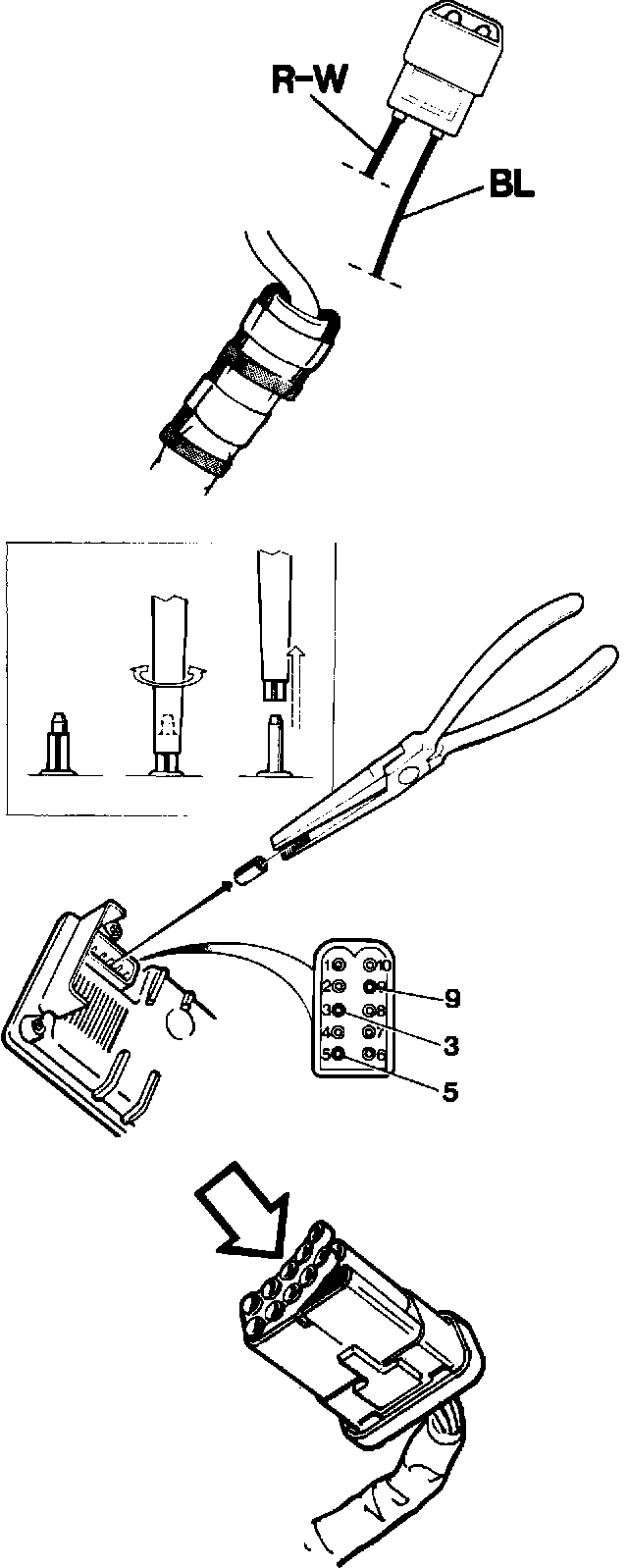

Cut off wires to the twin-pole connector (near the ignition coil connector). Cut the wires at different lengths as shown. Insulate each wire separately. Fold back wires and wrap tape around cover.

NOTE: It is essential that the wires do not touch each other or any metal parts as this can cause a short circuit.


Remove connector pin sleeves 3, 5 and 9 from control unit connector

Use a pair of flat-nosed pliers to remove connector sleeves. To prevent damage to connector pins, place side of pliers over sleeve groove and carefully twist sleeve to remove it.


CAUTION:
Control unit pins must not be bent. Damage to pins will require control unit replacement.


Check connector rubber seal

Make sure that the rubber seal is correctly fitted before connecting the connector to the control unit.
During the New Car Warranty period, claims must be submitted under:

Operation No. Labor Description Time Allowance

371213 Replace ignition wiring harness 0.4 hr.
