Coolant Temperature Sensor Specifications
Coolant Temperature Sensor Specifications
Coolant Temperature Sensors Specifications:

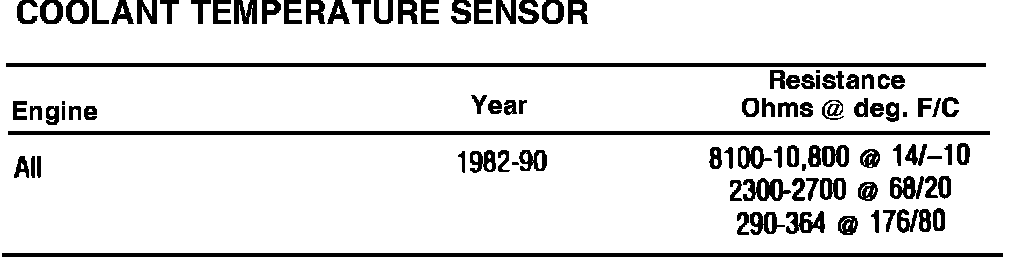

Fig. 6 Temperature sensor operating specifications:
