Windshield Wiper Motor - Grounding
NUMBER204
GROUP
36
MODEL
200
TITLE
GROUNDING OF WINDSHIELD
WIPER MOTOR
200 -->1991
MARKET
US and Canada
DATE
December 1992
REFERENCE:
TP 31486/1 (ENGLISH); 04/90; LIGHTING, INSTRUMENTATION AND OTHER ELECTRICAL EQUIPMENT
Grounding of windshield wiper motor
The existing type of wiper motor with a grounding strip has been replaced as a spare by a unit with a ground terminal screw. When replacing the motor on models up to 1991, an extra ground lead must be run from the terminal screw on the motor to the ground terminal on the body. The location of the body terminal will vary depending on the motor and body version. The following components are required to make up and install a new ground lead:
975561-2, ground screw, wiper motor
954443-8, ground lead (supplied by meter length)
970789-4, cable terminal for ground screw on wiper motor
956946-8, cable terminal for body ground terminal
3540626-3, wiper motor
Replacement of windshield wiper motor

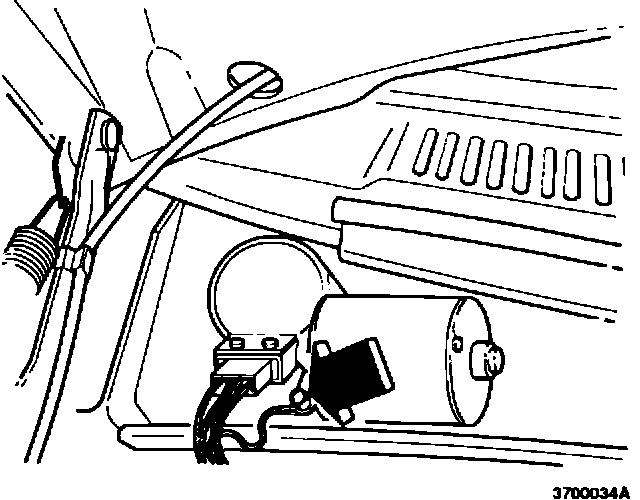

Replace wiper motor as described in Service Manual. Make up 1000 mm (40 in.) long ground lead and connect to ground terminal screw on motor. Run cable through harness clip and along harness to suspension strut tower. Ground lead as per appropriate method.
Vehicles with gasoline engines

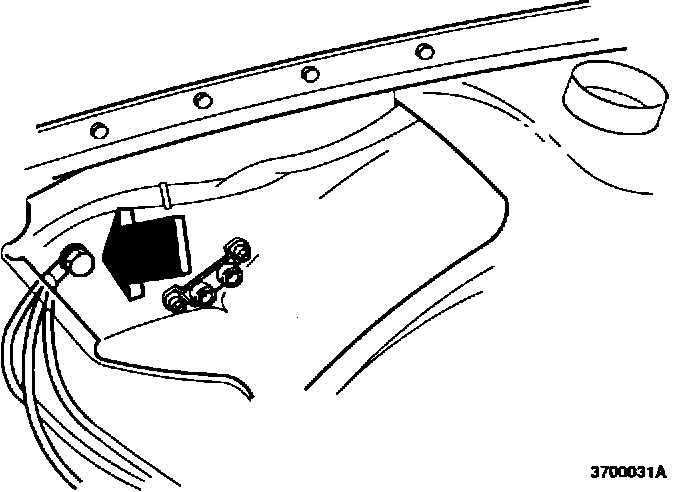

Connect lead to ground terminal at washer reservoir.
Vehicles with diesel engines

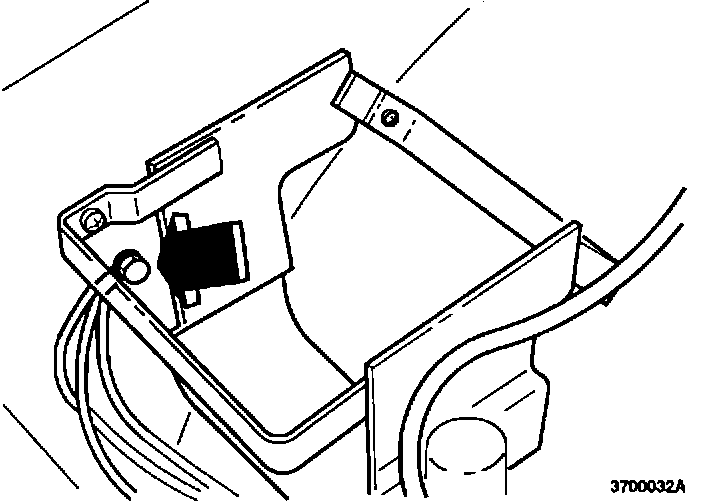

Connect lead to gound terminal at air cleaner mounting bracket.
If replacement of the wiper motor is necessary, due to a symptom covered by the new car warranty, the following operation number should be used:
Oper.No. Labor Description Time Allowance
263112 Wiper motor, replace 0.2 hr
363104 Windshield wiper motor ground lead, install 0.2
