Wiper Arm: Service and Repair

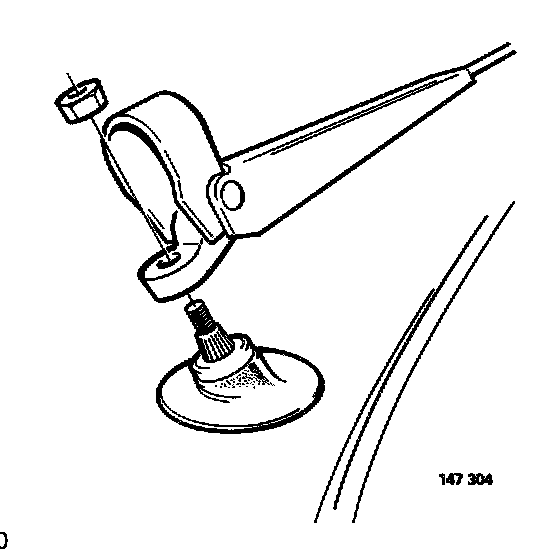

Wiper Arm, Replacement

E1





- Lift wiper arm.

- Raise mounting cover as arm is lifted.

- Undo nut.

- Remove arm.

- Reassemble in reverse order.

- Tightening torque 16 Nm (12 ft.lb).
