TYPE 2 BOSCH DISTRIBUTOR (P/N 1332684, 1336737, 1332587)

REPLACING DISTRIBUTOR





Remove / Disconnect
- HT leads from cap
- distributor cap
- dust cover.
- Refit rotor.





Set CYL # 1 to T.D.C.
- Turn crankshaft until rotor points towards mark in distributor body.

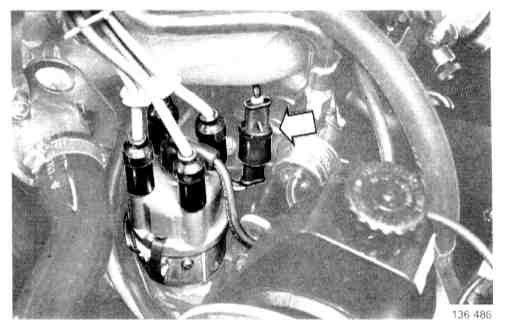

- Disconnect connector.
- Remove distributor.





Install Distributor
- Check that cyl #1 is at T.D.C.
- Turn rotor approx. 60° clockwise from mark in distributor body.
- Refit distributor.
- Rotor should now point towards mark in distributor body.





Fit/Connect:
- Dust cover
- Rotor
- Distributor cap
- HT leads.
- Check/adjust basic ignition timing.
- Install guide sleeves on connectors if needed.

REPLACING HALL PICK-UP





- Remove distributor.
- Mount distributor in a soft-jawed vise.
- Release circlip retaining trigger wheel.

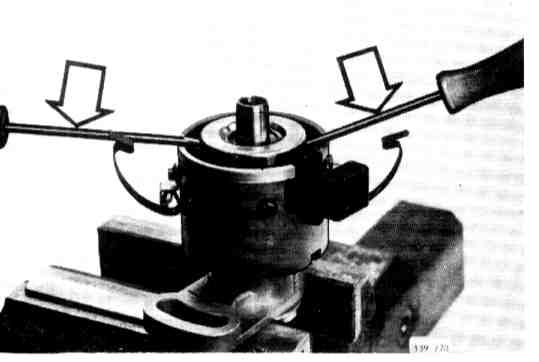

- Pry off trigger wheel with two screwdrivers (use round-shaft screwdrivers, 5 mm diameter).





- Place tips of screwdrivers on steel hub, as shown.
- Take care not to damage trigger wheel.
- Take care not to lose lock pin.

NOTE: If trigger wheel is bent during removal, it must be replaced.





Remove
- Circlip.
- Hall pick-up retaining screws.





- Plastic pin (A) for connector.





- Remove Hall switch and connector.





Install:
- New Hall switch and connector.
- Circlip.

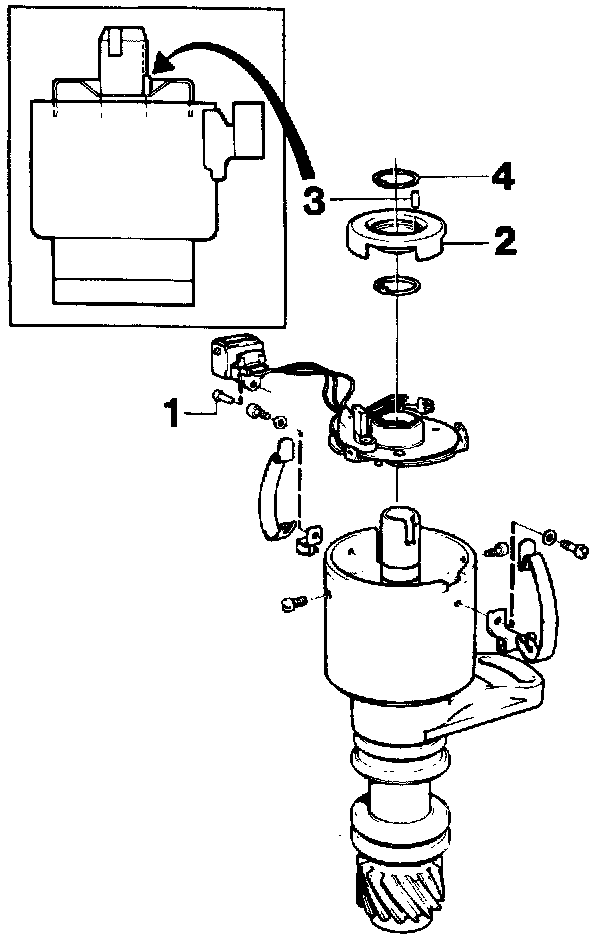

- Retaining screws and plastic pin (1).

Install:
- Trigger wheel (2)
- Lockpin (3)
- Circlip (4)
- Condensation trap
- Rotor arm
- Install distributor.
