Fuel Injection System

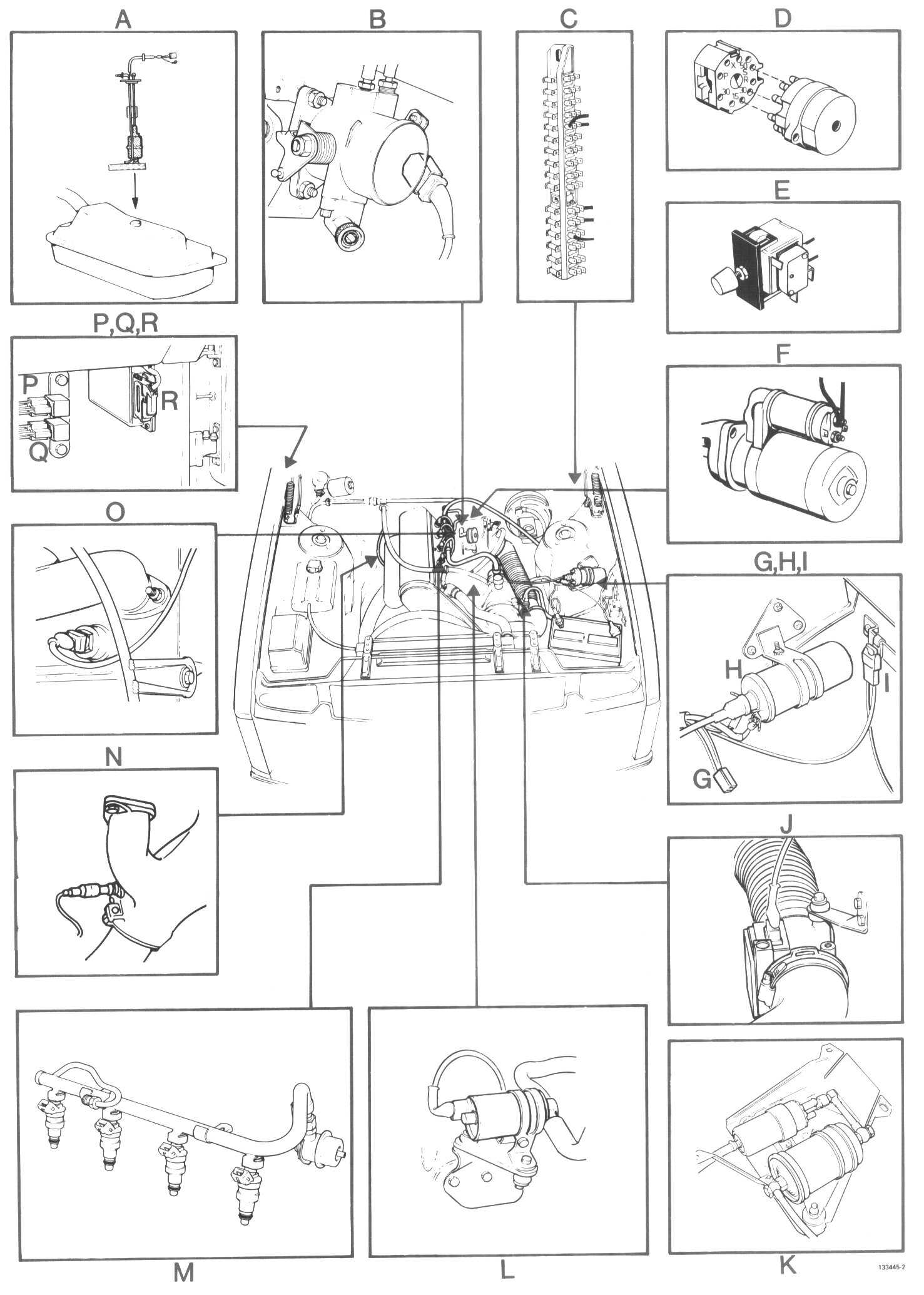

Location/Connector Views:

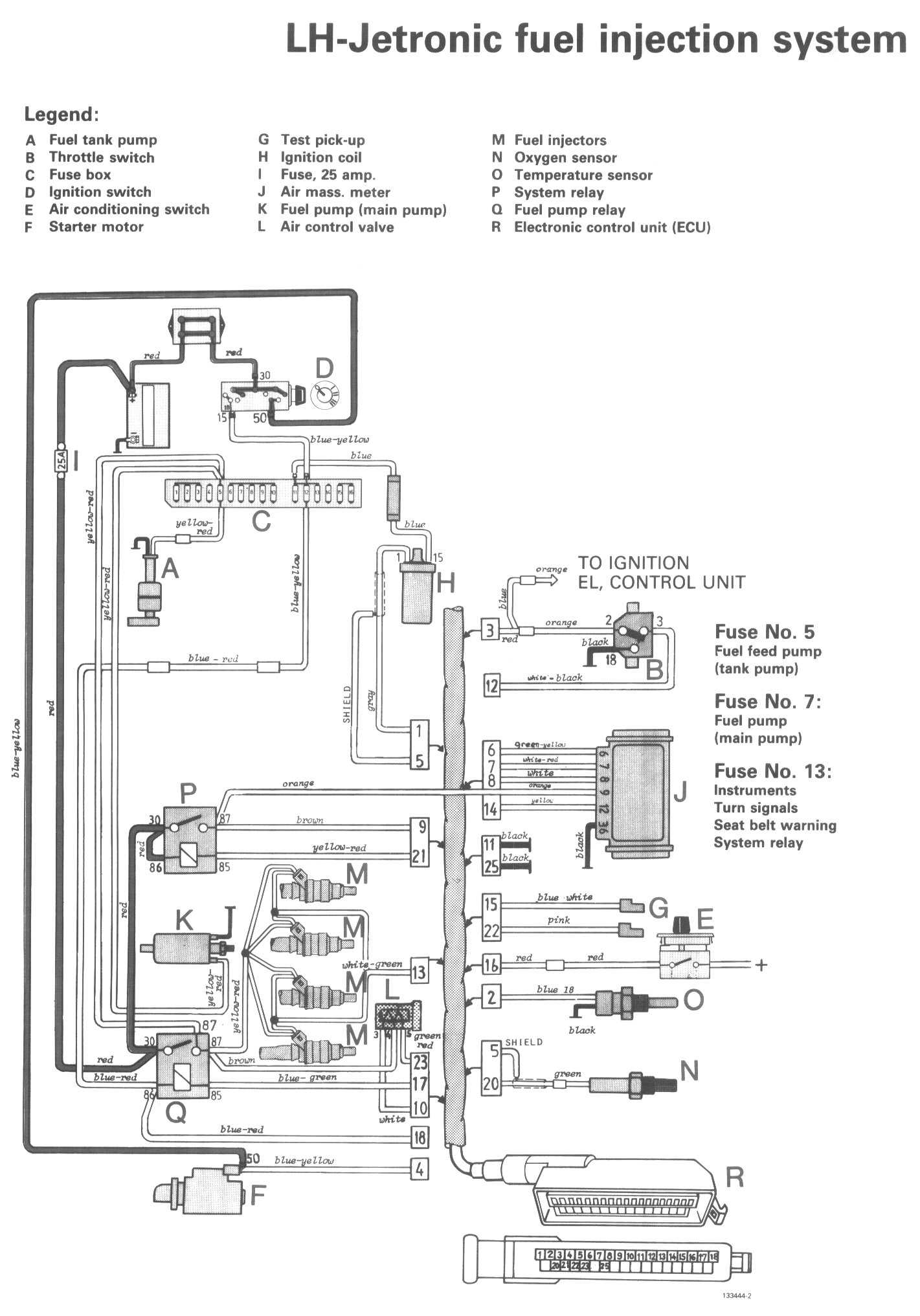

Wiring Diagram:

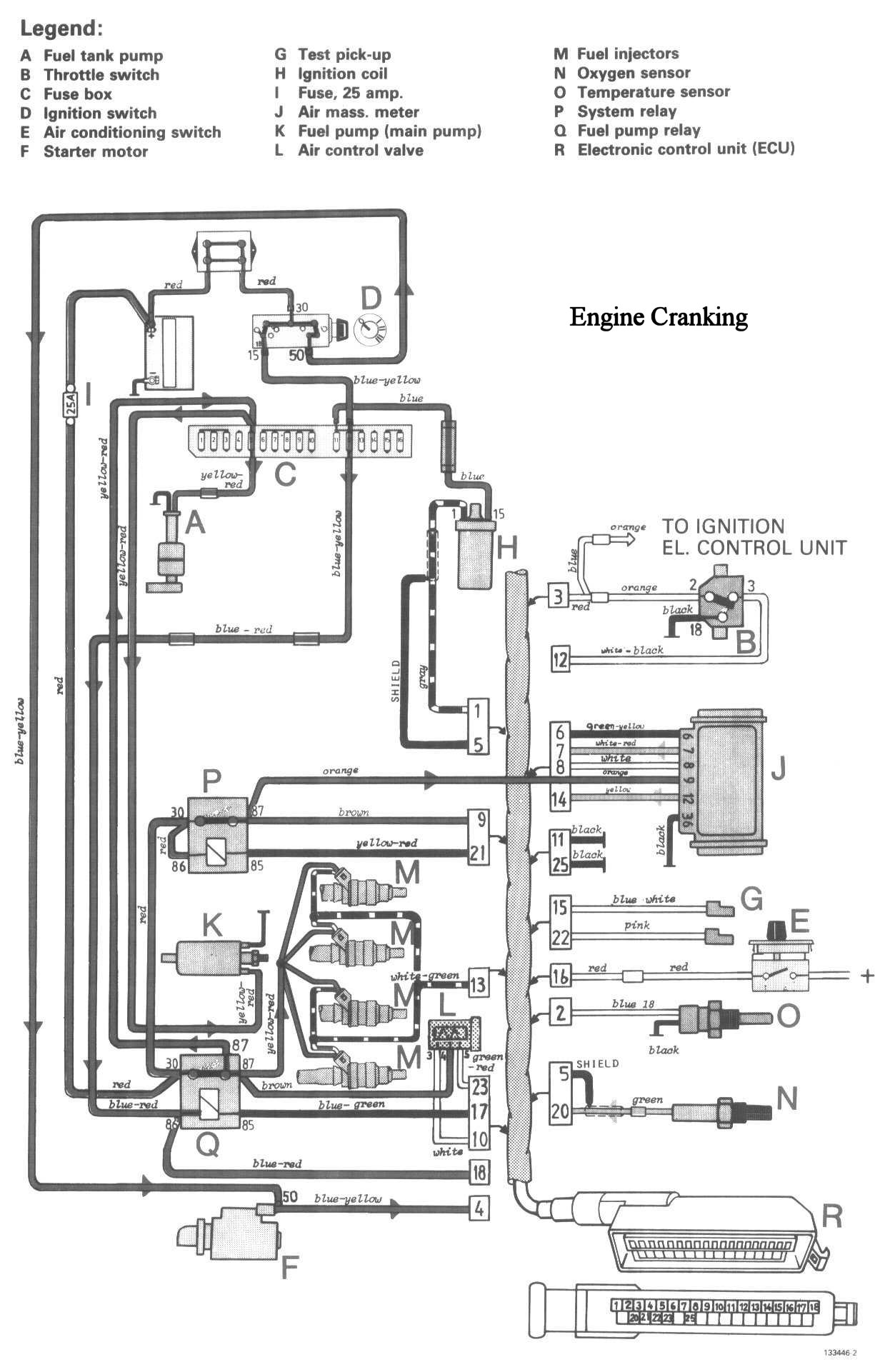

Conditions (Engine Cranking):

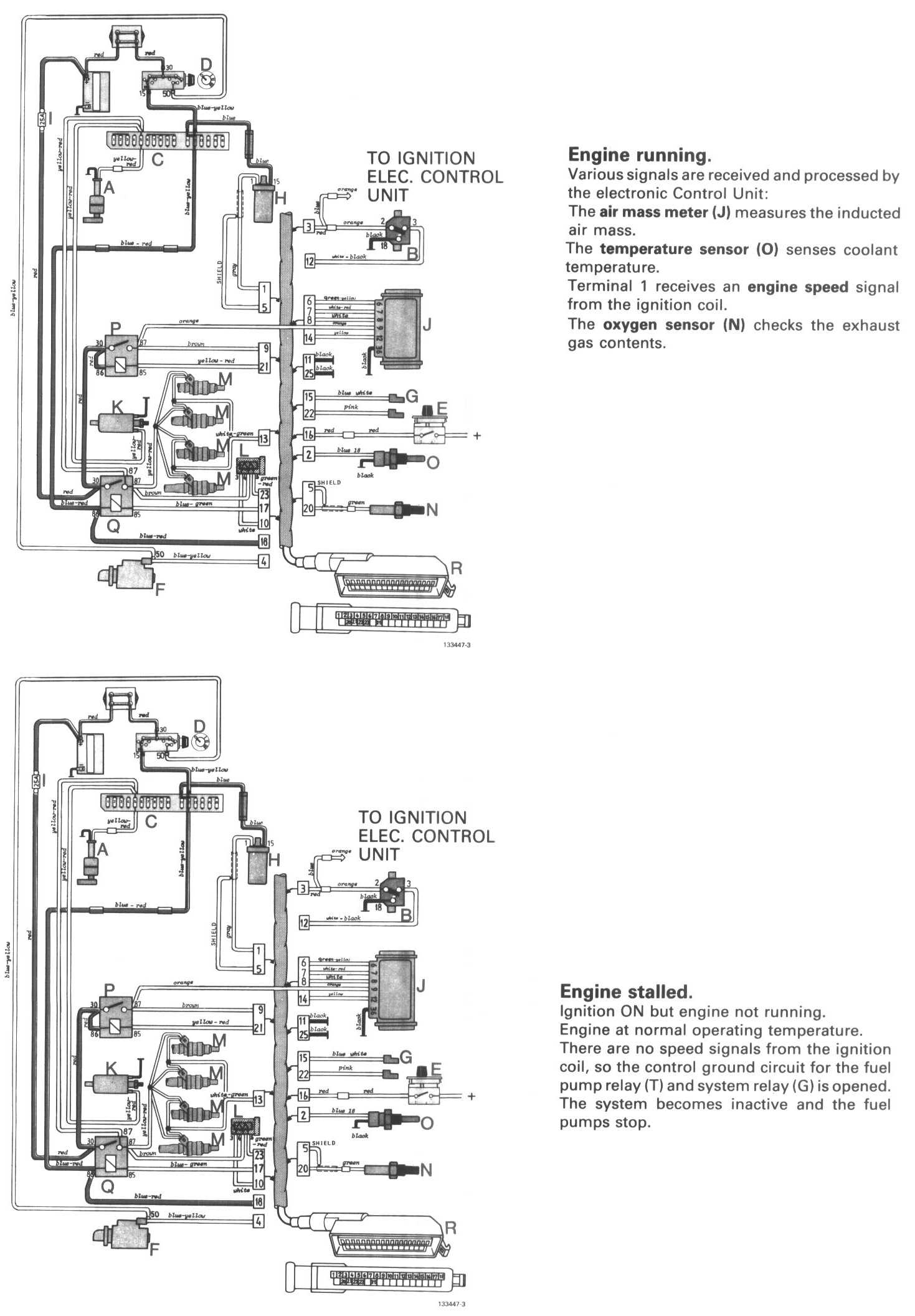

Conditions (Running/Stalled):

Legend:
A Fuel tank pump
B Throttle switch
C Fuse box
D Ignition switch
E Air conditioning switch
F Starter motor
G Test pick-up
H Ignition coil
I Fuse, 25 amp.
J Air mass. meter
K Fuel pump (main pump)
L Air control valve
M Fuel injectors
N Oxygen sensor
O Temperature sensor
P System relay
Q Fuel pump relay
R Electronic control unit (ECU)
