Glow Plug System

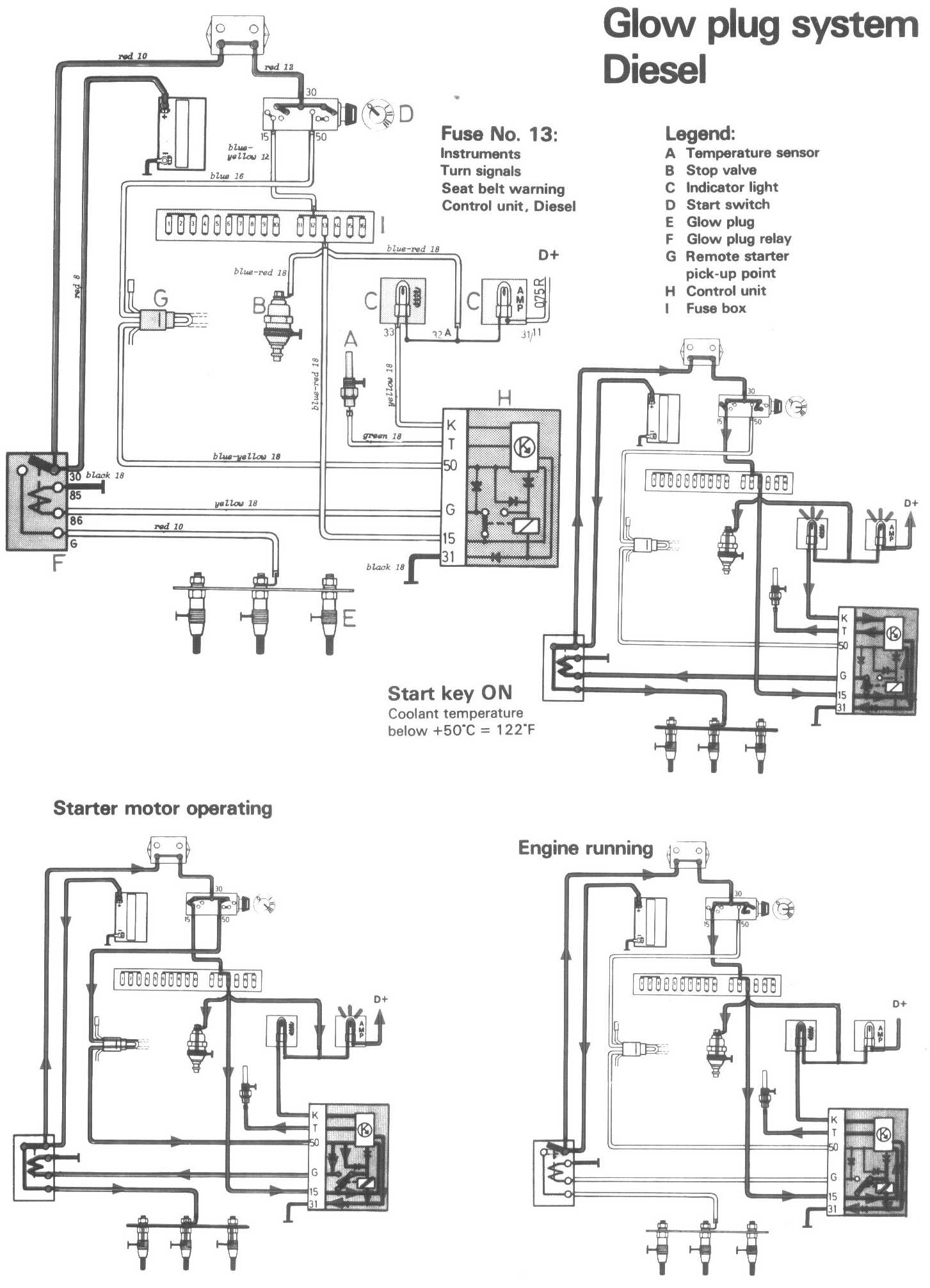

Diagrams:

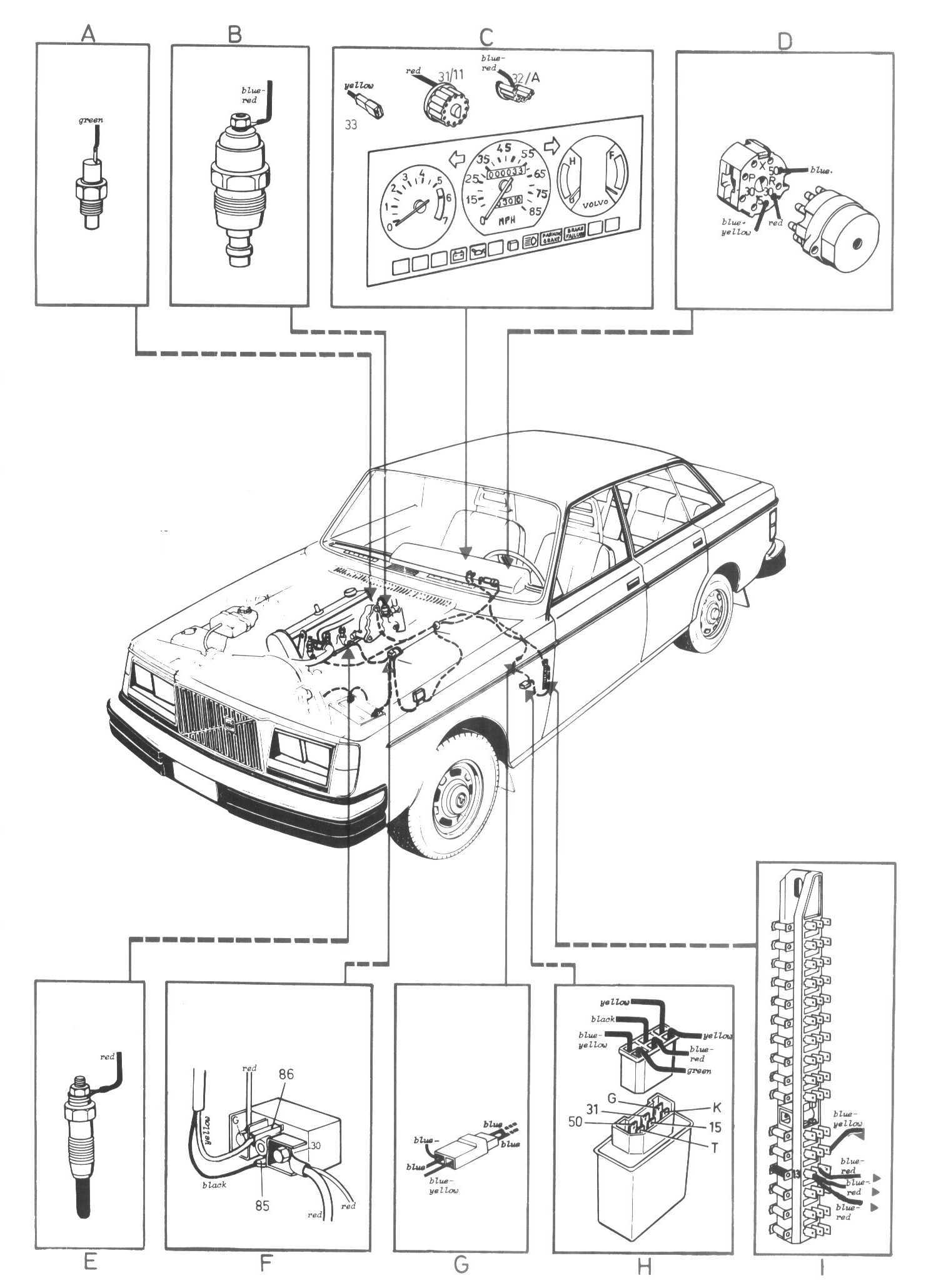

Locations/Connector Views:

Legend:
A Temperature sensor
B Stop valve
C Indicator light
D Start switch
E Glow plug
F Glow plug relay
G Remote starter pick-up point
H Control unit
I Fuse box
