System Schematics

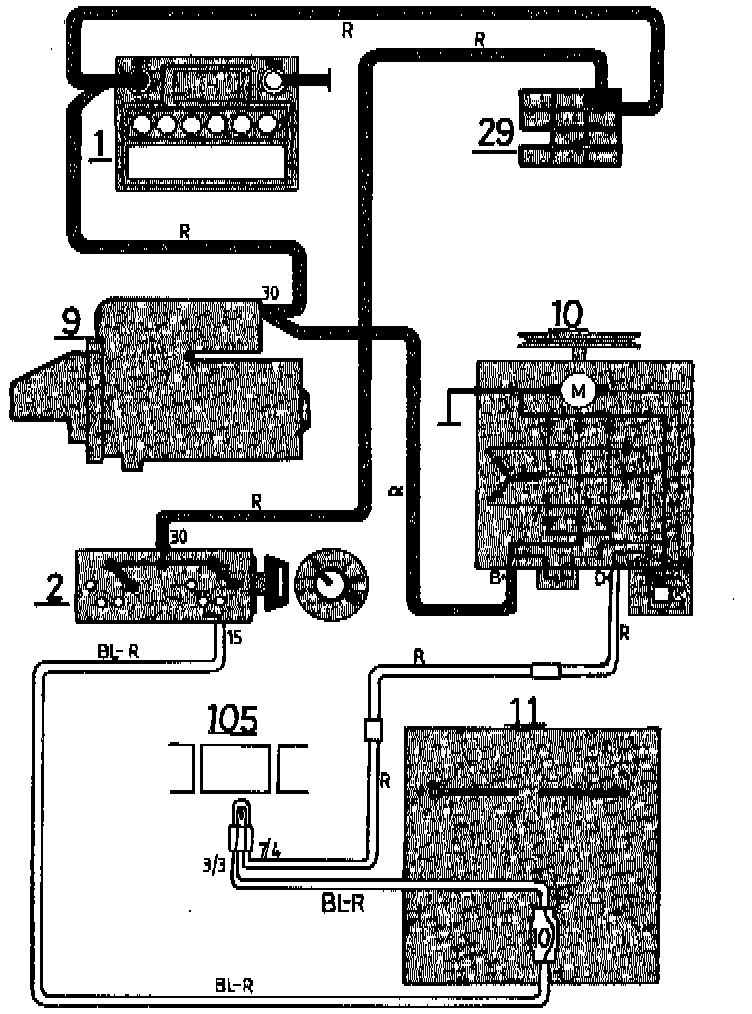

Charging Circuit - Ignition Off:

2 Ignition switch
9 Starter motor
10 Alternator
11 Fusebox
29 Positive terminal
105 Battery charge lamp

Fuse No. 10
Reversing (back-up) lights
Heated seats

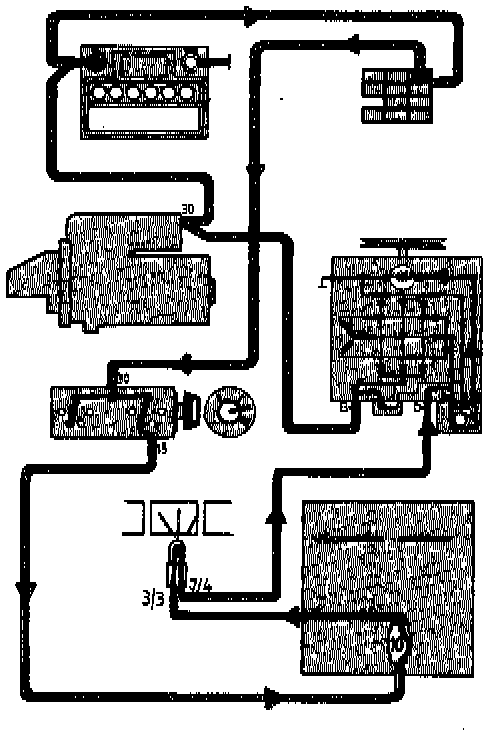

Ignition ON - Engine Off:

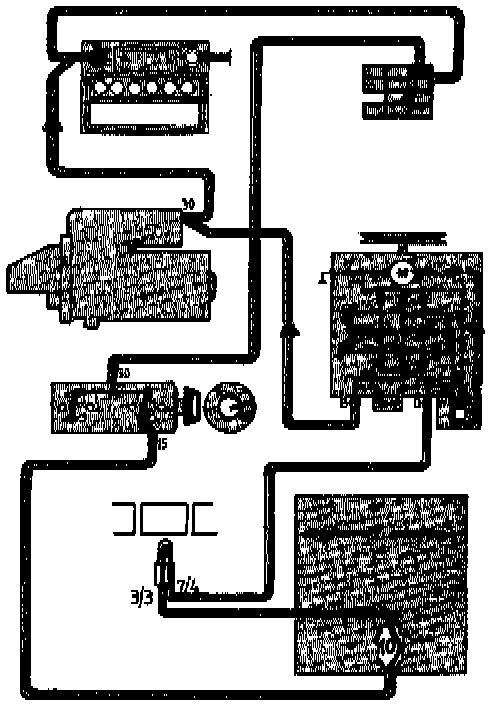

Alternator charging:

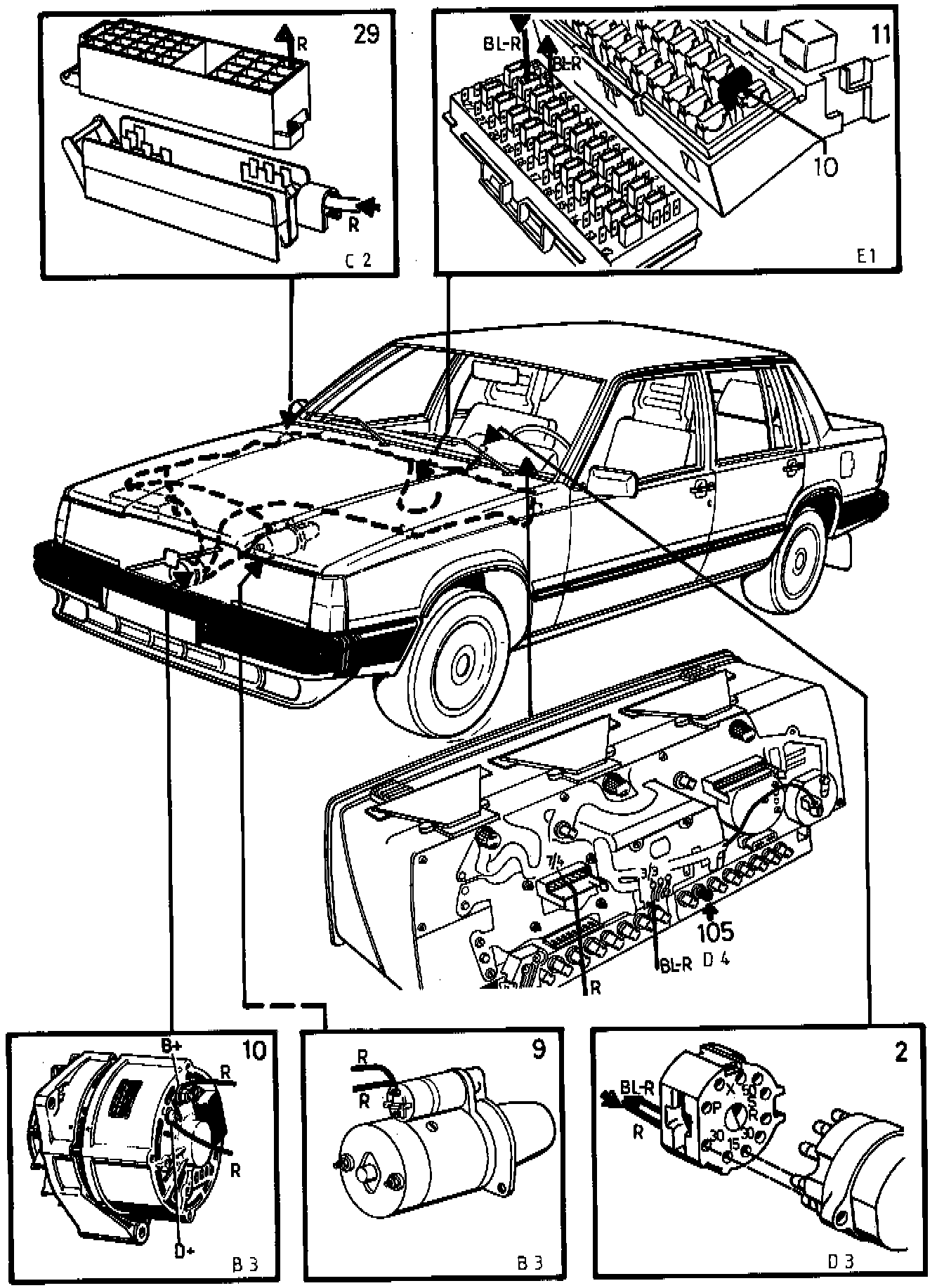

Location views:

2 Ignition switch
9 Starter motor
10 Alternator
11 Fusebox
29 Positive terminal
105 Battery charge lamp
