Seat Belt Reminder Lamp

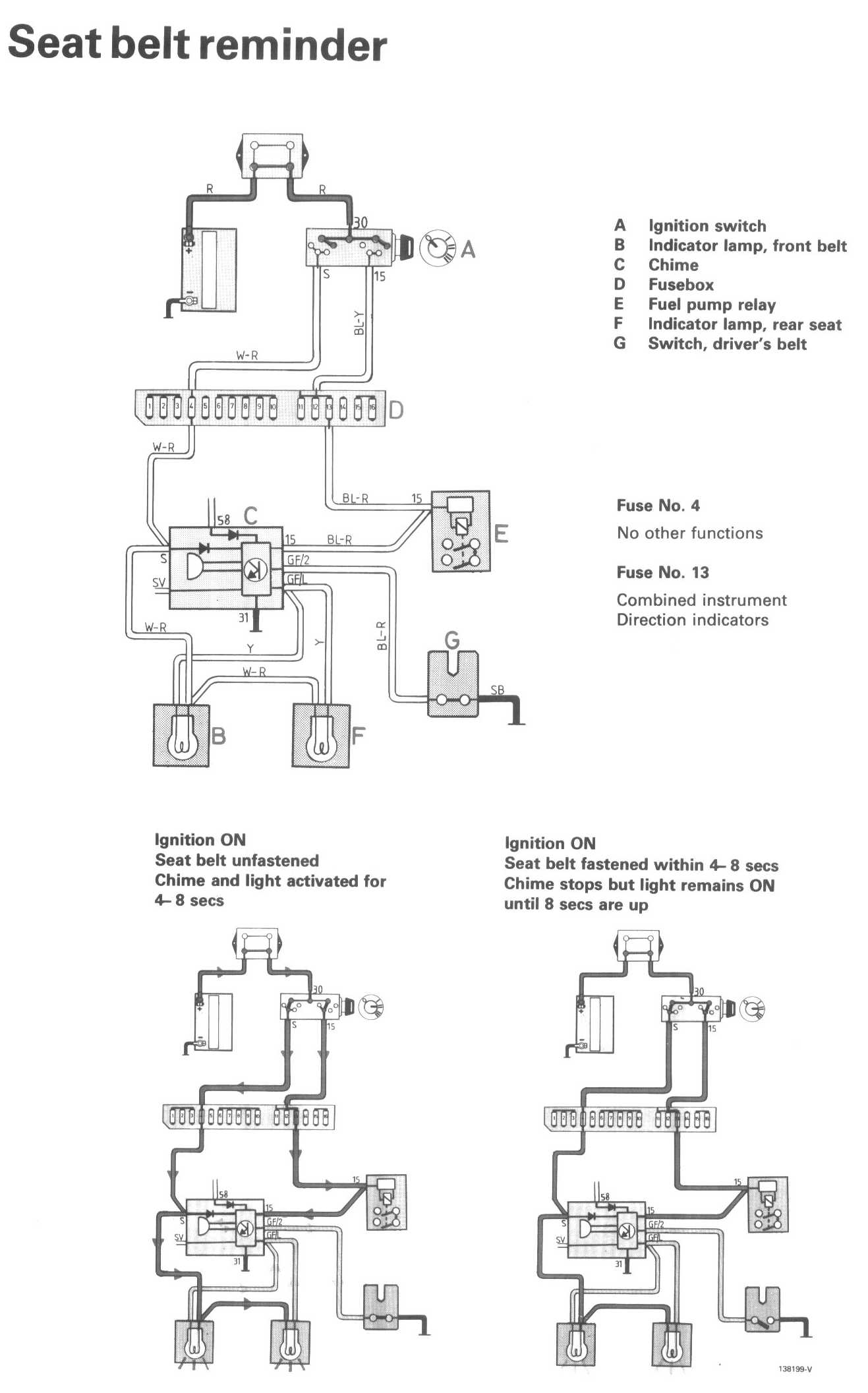

Wiring Diagrams:

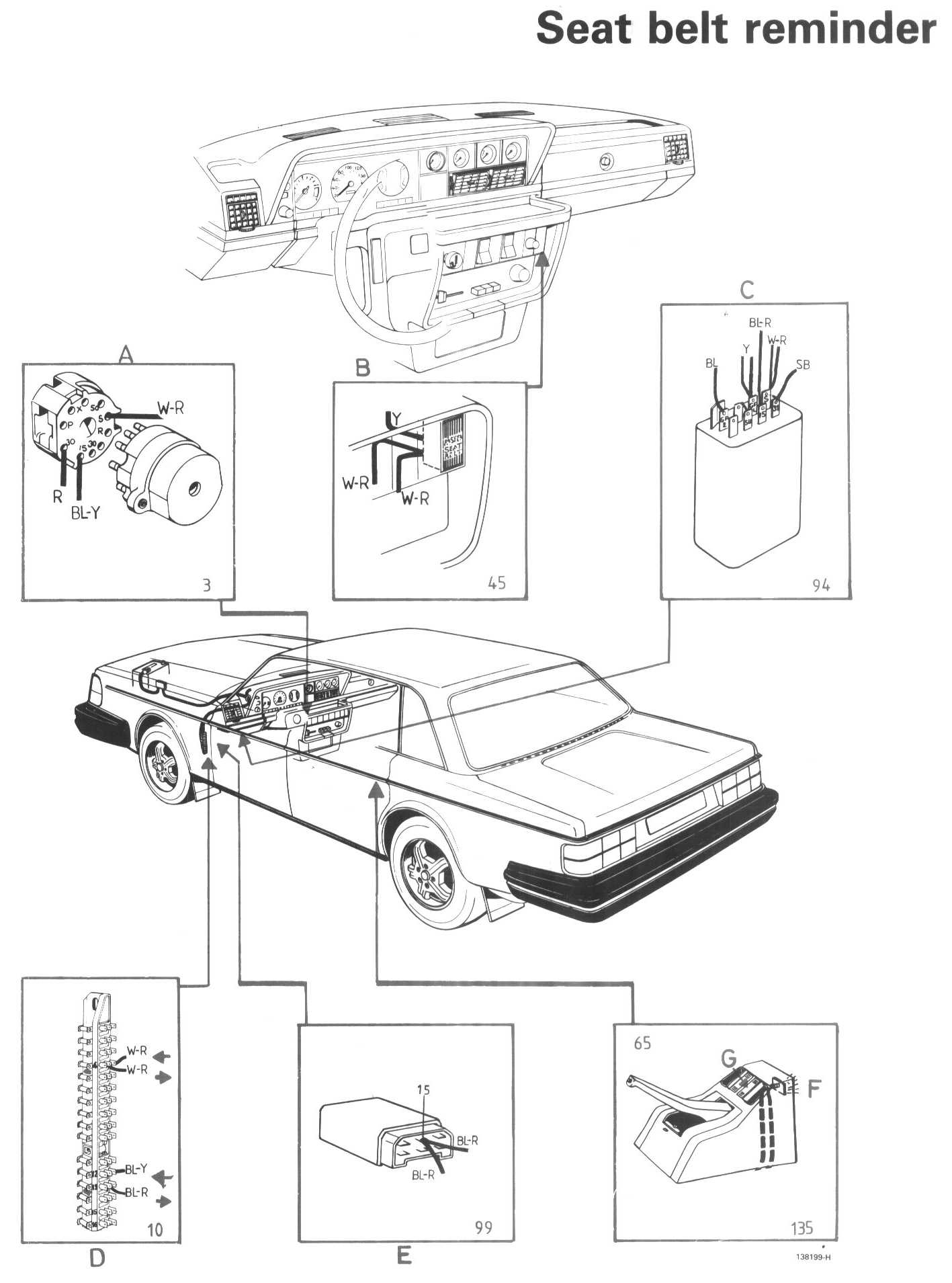

Locations/Connector Views:

LEGEND
A Ignition switch
B Indicator lamp, front belt
C Chime
D Fusebox
E Fuel pump relay
F Indicator lamp, rear seat
G Switch, driver's belt
