Air Conditioning Components

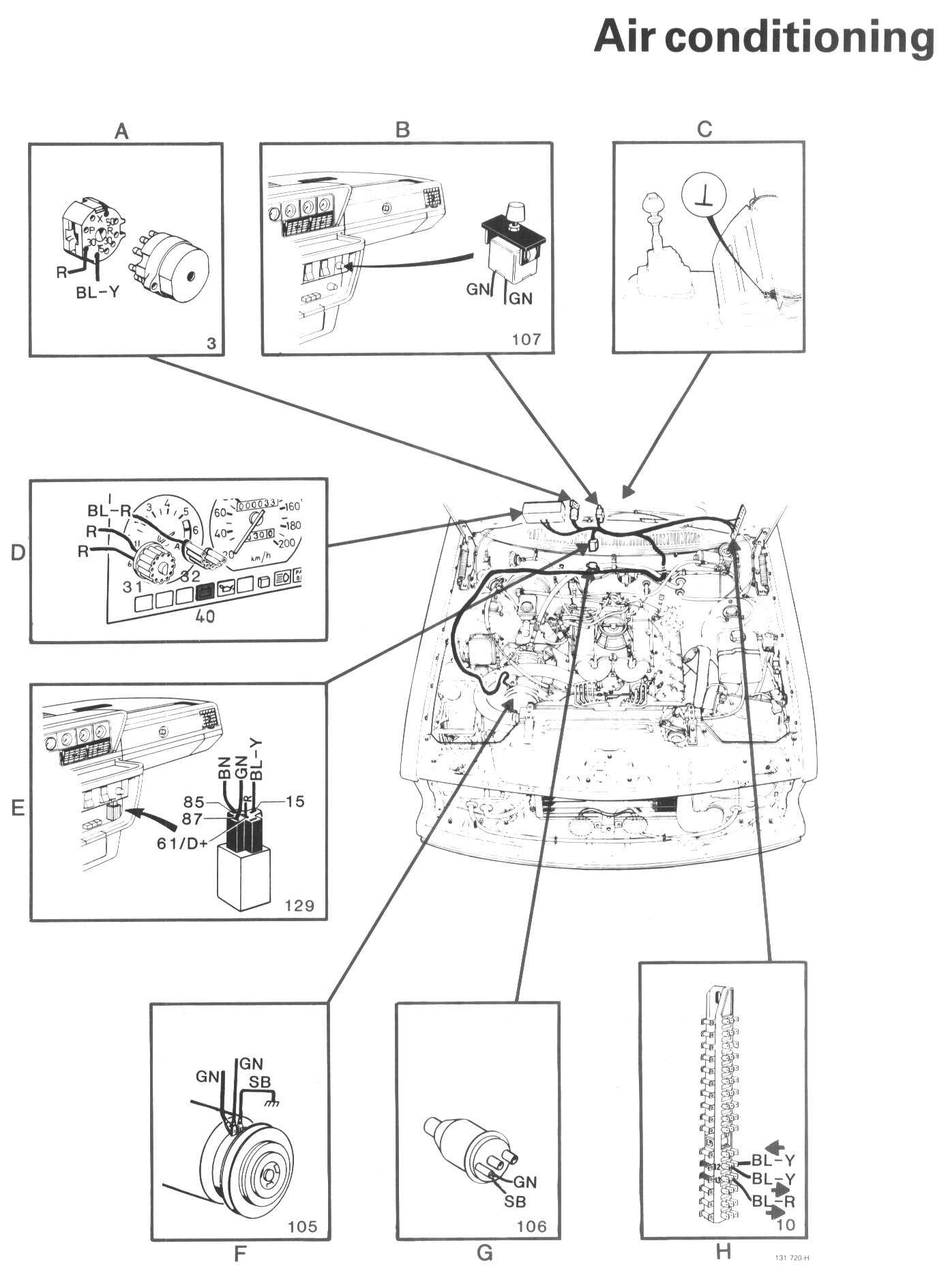

Locations/Connector Views:

Wiring Diagrams:

LEGEND
A Ignition switch
B Thermostat switch
C Ground connection
D Battery charge failure indicator lamp
E Delay relay (energized 10 seconds after alternator charges)
F Compressor clutch
G Solenoid
H Fusebox
