High/Low Beams (Headlights)

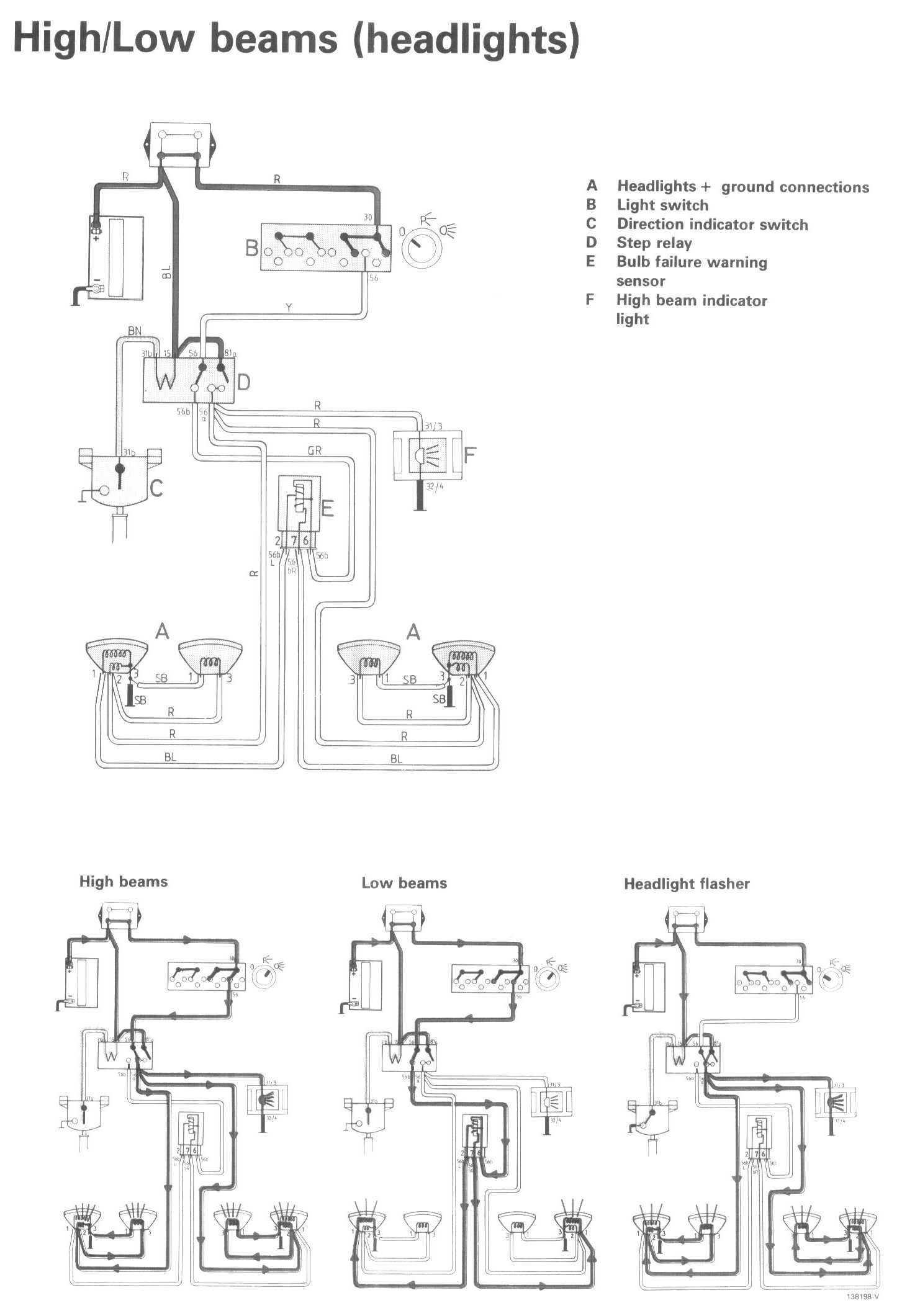

Wiring Diagrams:

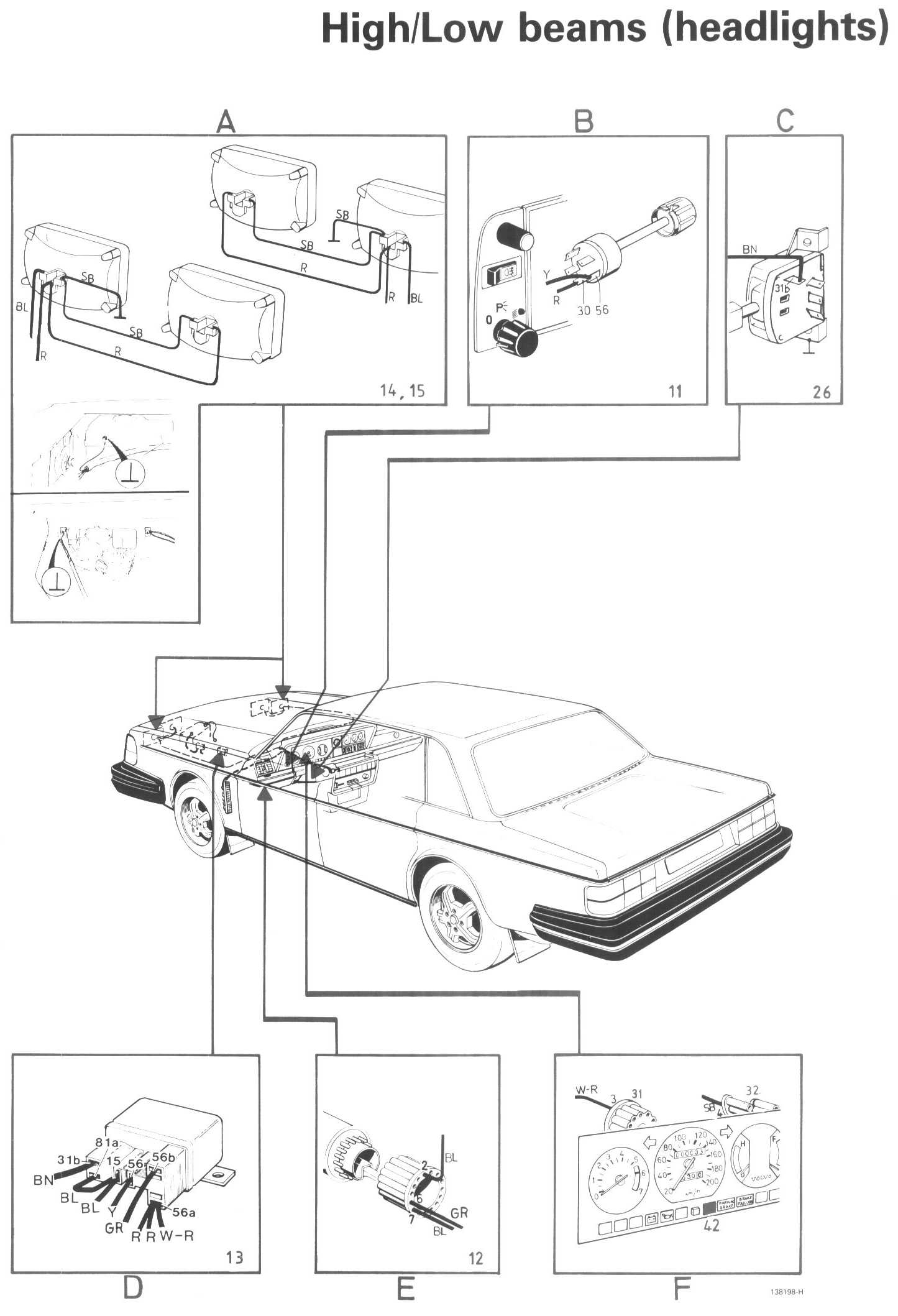

Locations/Connector Views:

LEGEND
A Headlights + ground connections
B Light switch
C Direction indicator switch
D Step relay
E Bulb failure warning sensor
F High beam indicator light
