Rear Courtesy Light (Wagon)

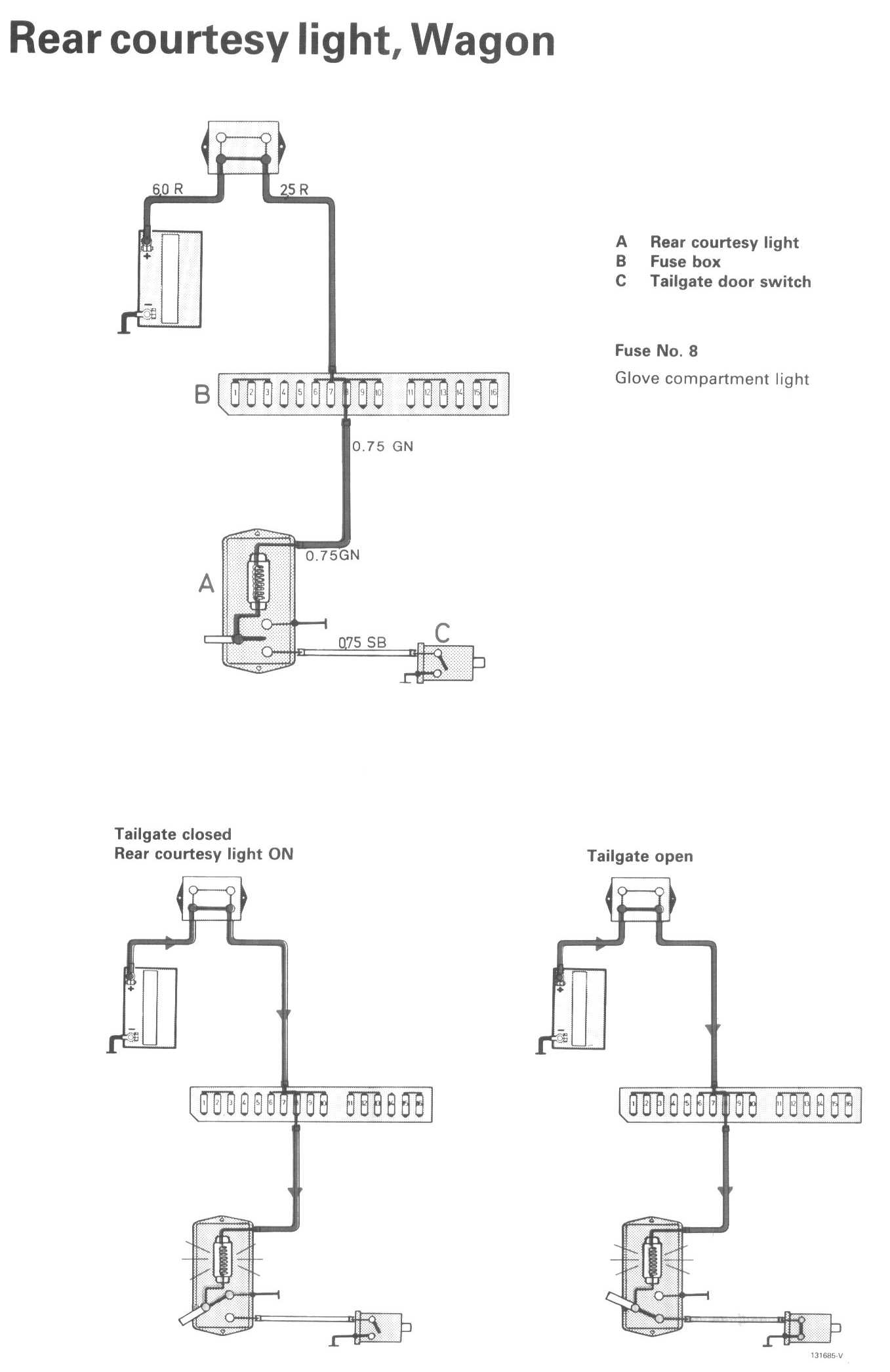

Wiring Diagrams:

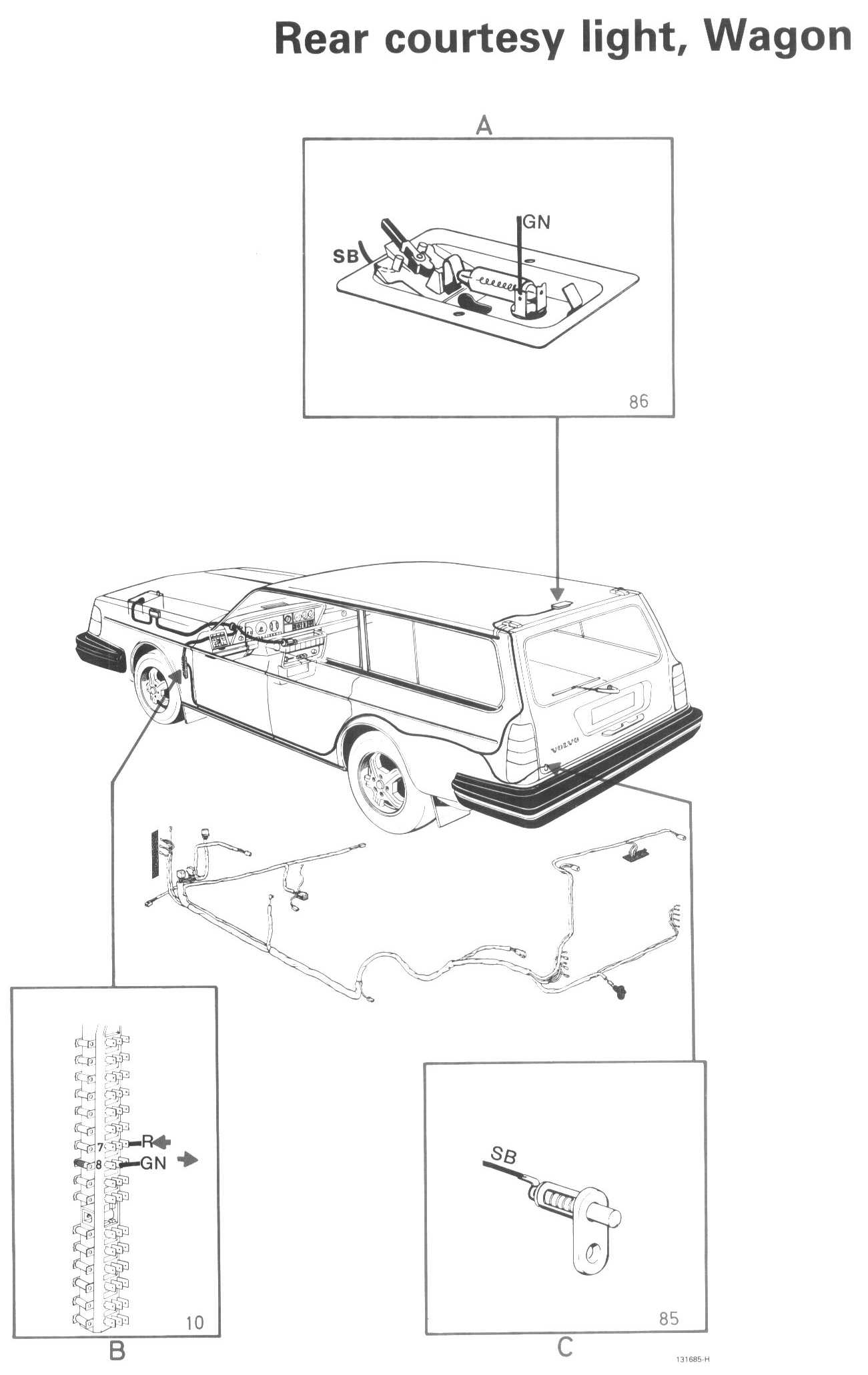

Locations/Connector Views:




LEGEND
A Rear courtesy light
B Fuse box
C Tailgate door switch
