Constant Idle Speed System (CIS)

Component Locations:

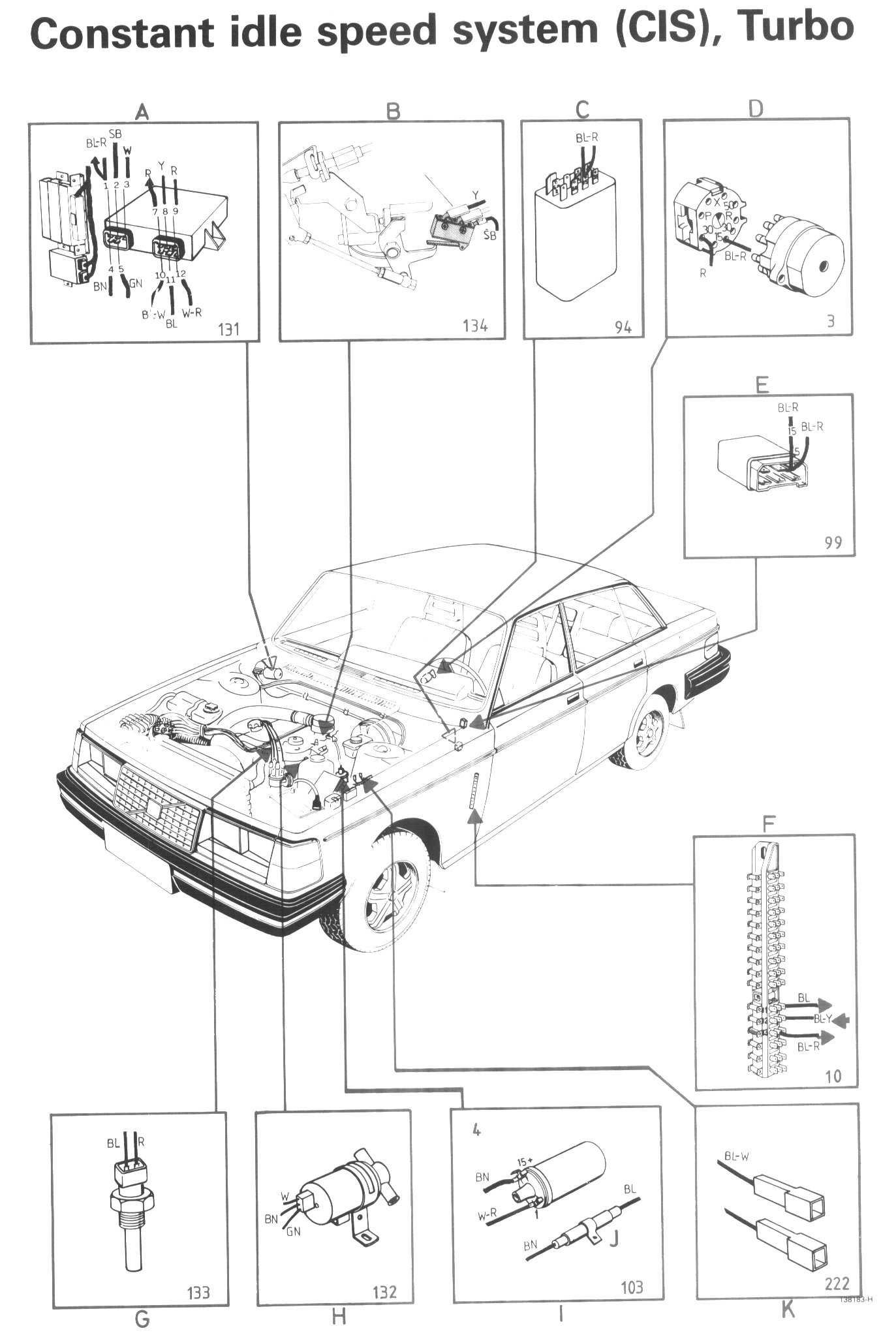

Wiring Diagram:

LEGEND
A Control unit
B Microswitch
C Fasten seat belt reminder
D Ignition switch
E Fuel pump relay
F Fusebox
G Temperature sensor
H Air control valve
I Ignition coil
J Ballast resistor
K Service output, adjusting idle
L AC microswitch
