Oil Pressure Gauge

Locations/Connector Views:

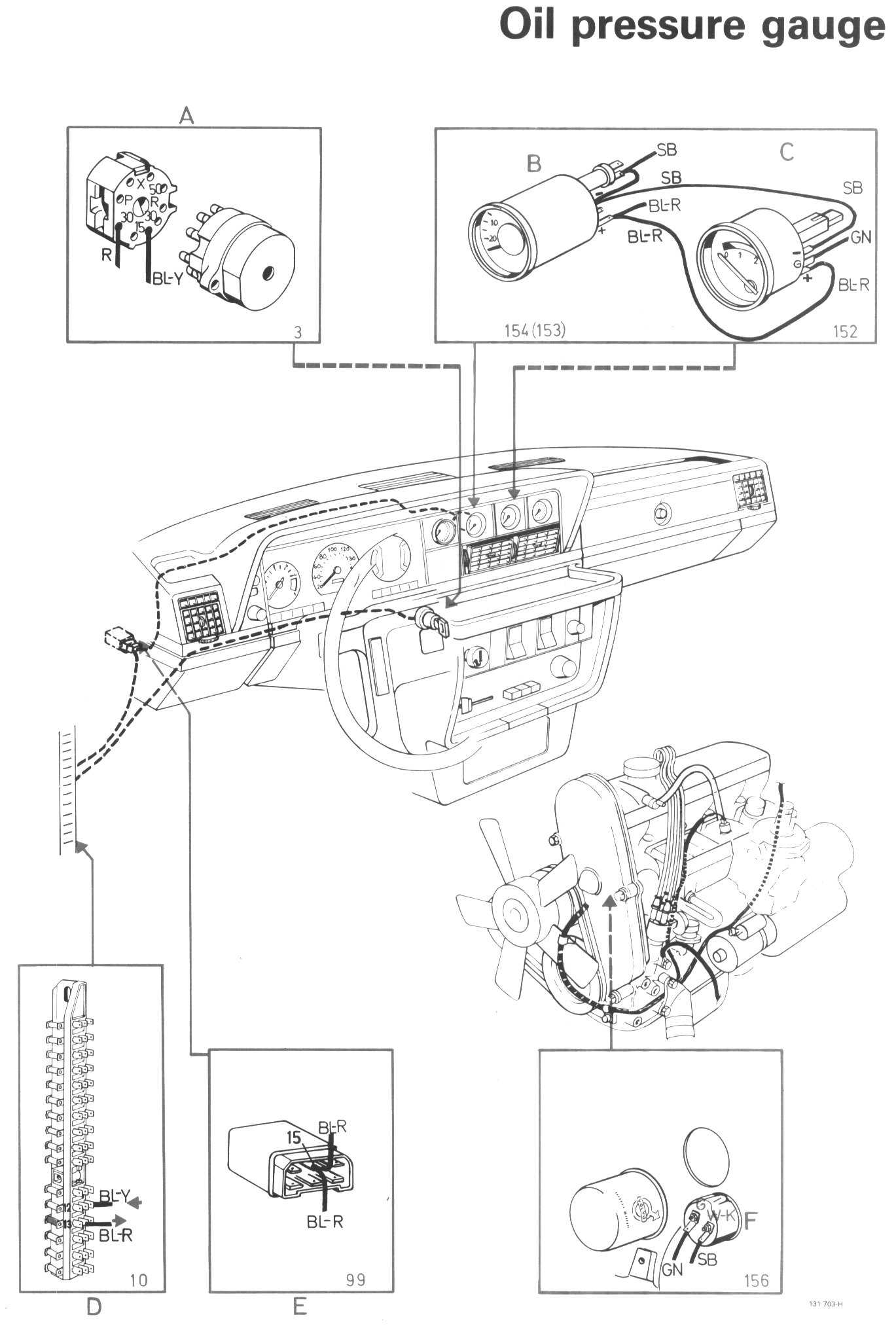

Wiring Diagrams:

LEGEND
A Ignition switch
B Ambient temperature gauge (or boost pressure gauge, Turbo)
C Oil pressure gauge
D Fusebox
E Fuel pump relay
F Oil pressure sender unit
31/5 Connection to low oil pressure indicator lamp
