Computer Controlled Ignition System

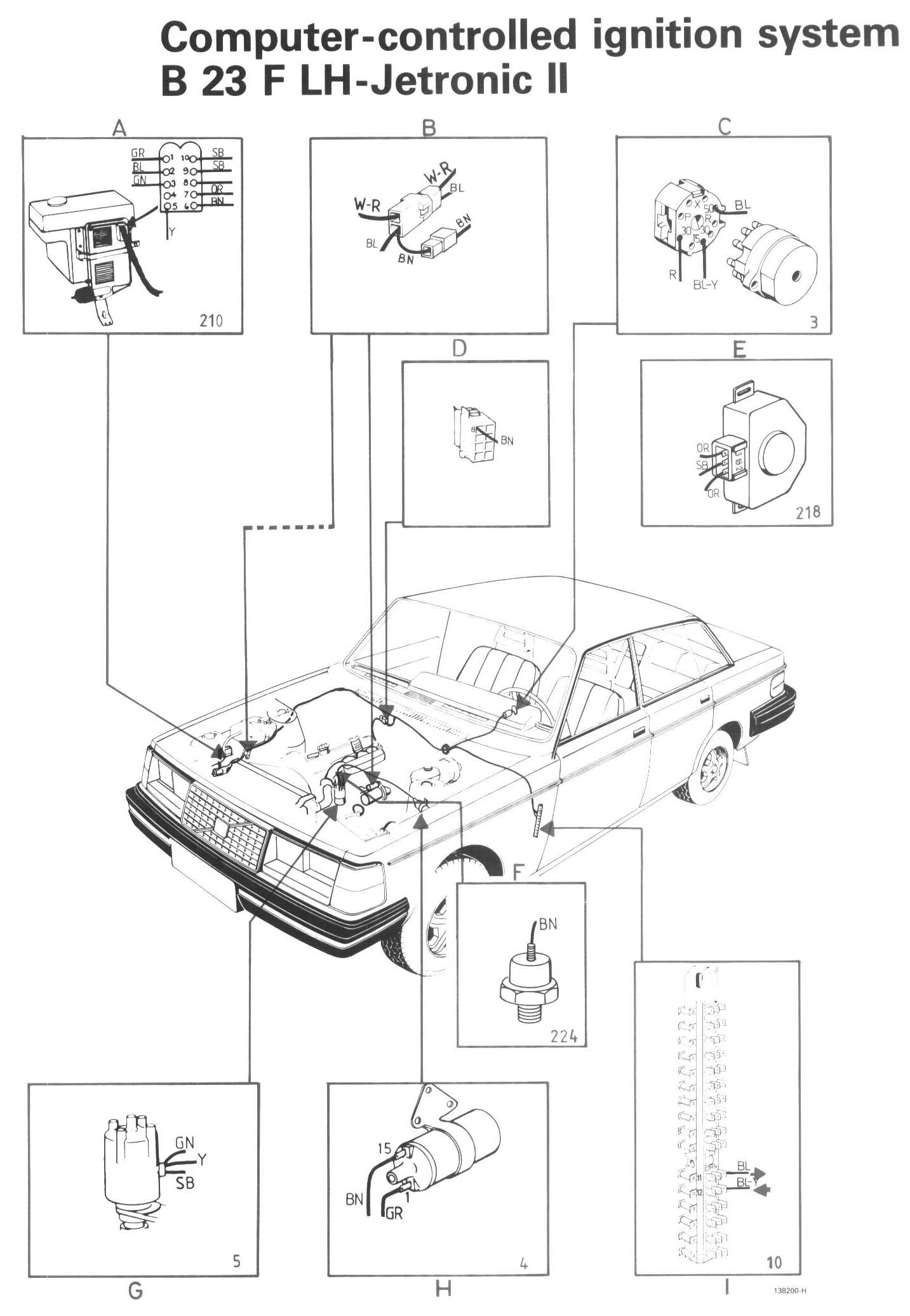

Component Locations:

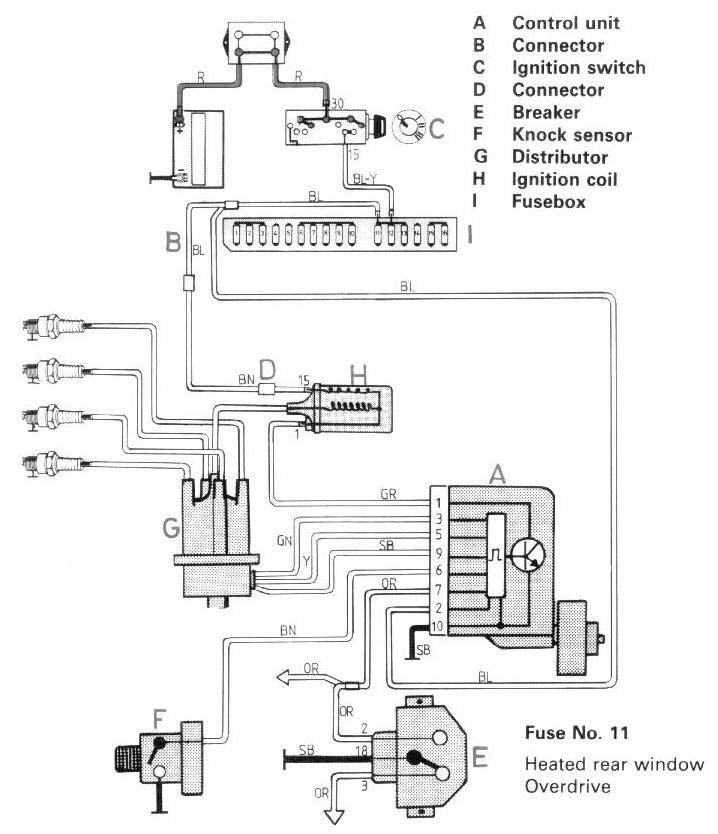

Wiring Diagram:

LEGEND
A Control unit
B Connector
C Ignition switch
D Connector
E Breaker
F Knock sensor
G Distributor
H Ignition coil
I Fusebox
