Fuel Injection System

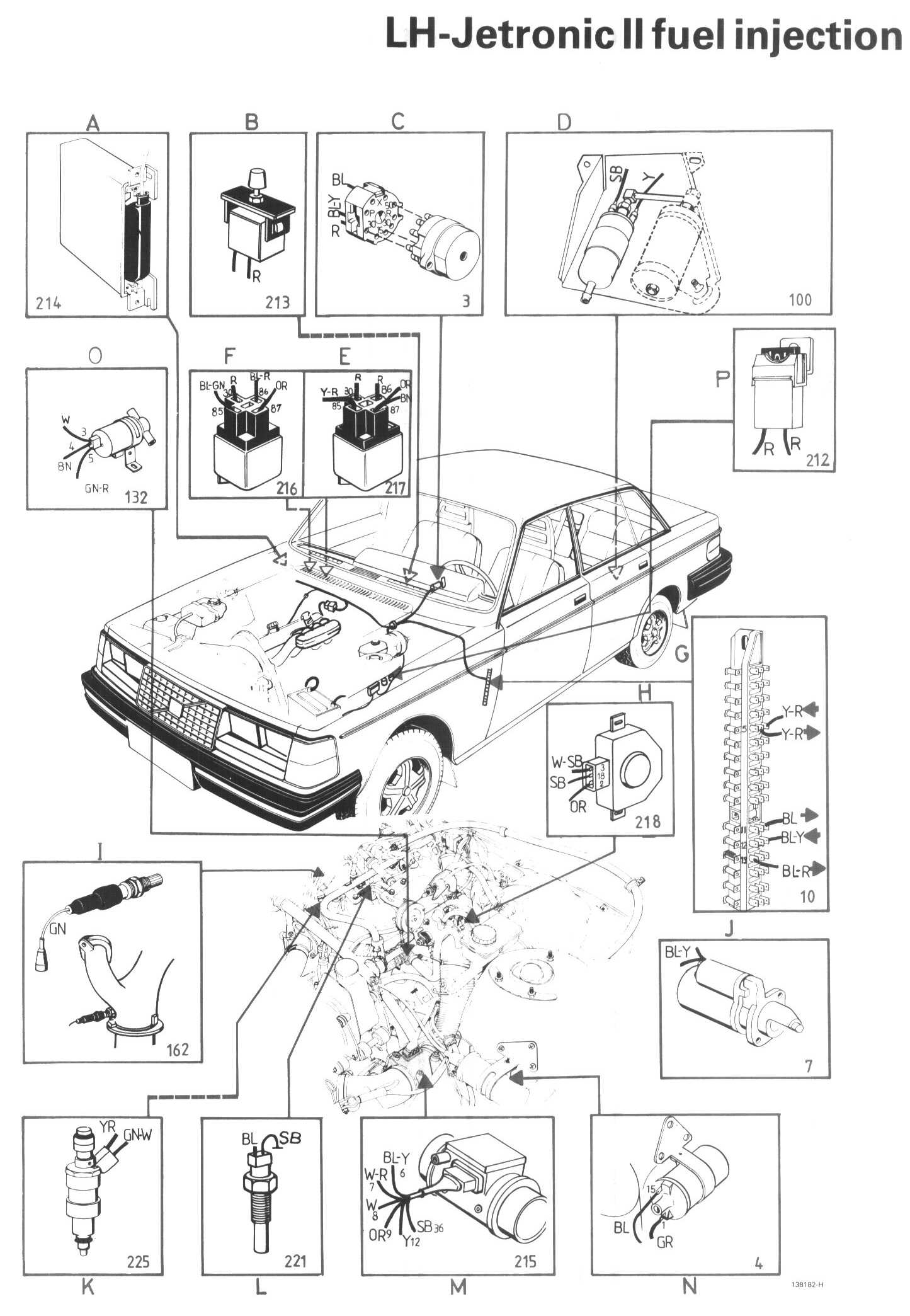

Component Locations:

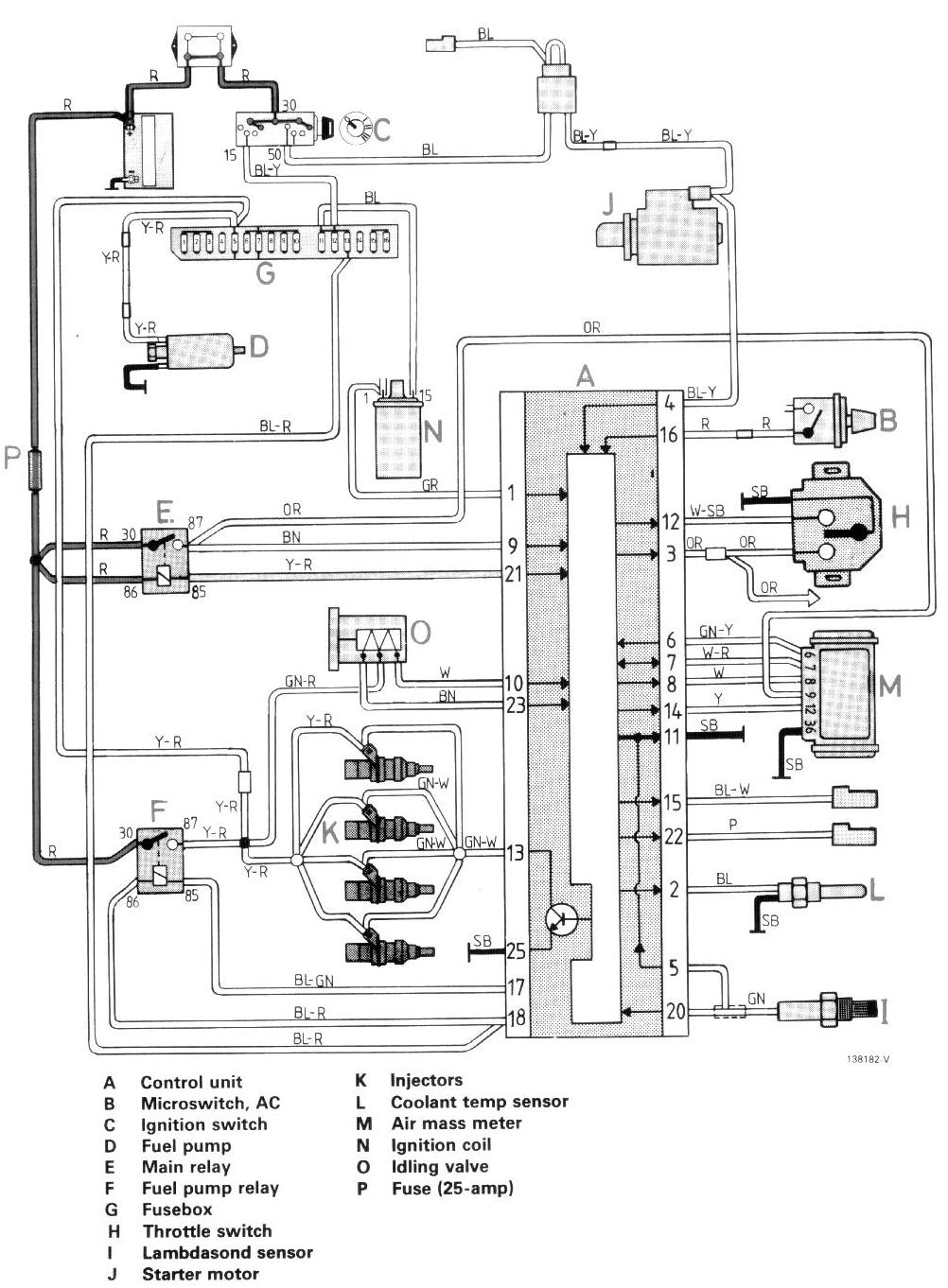

Wiring Diagram:

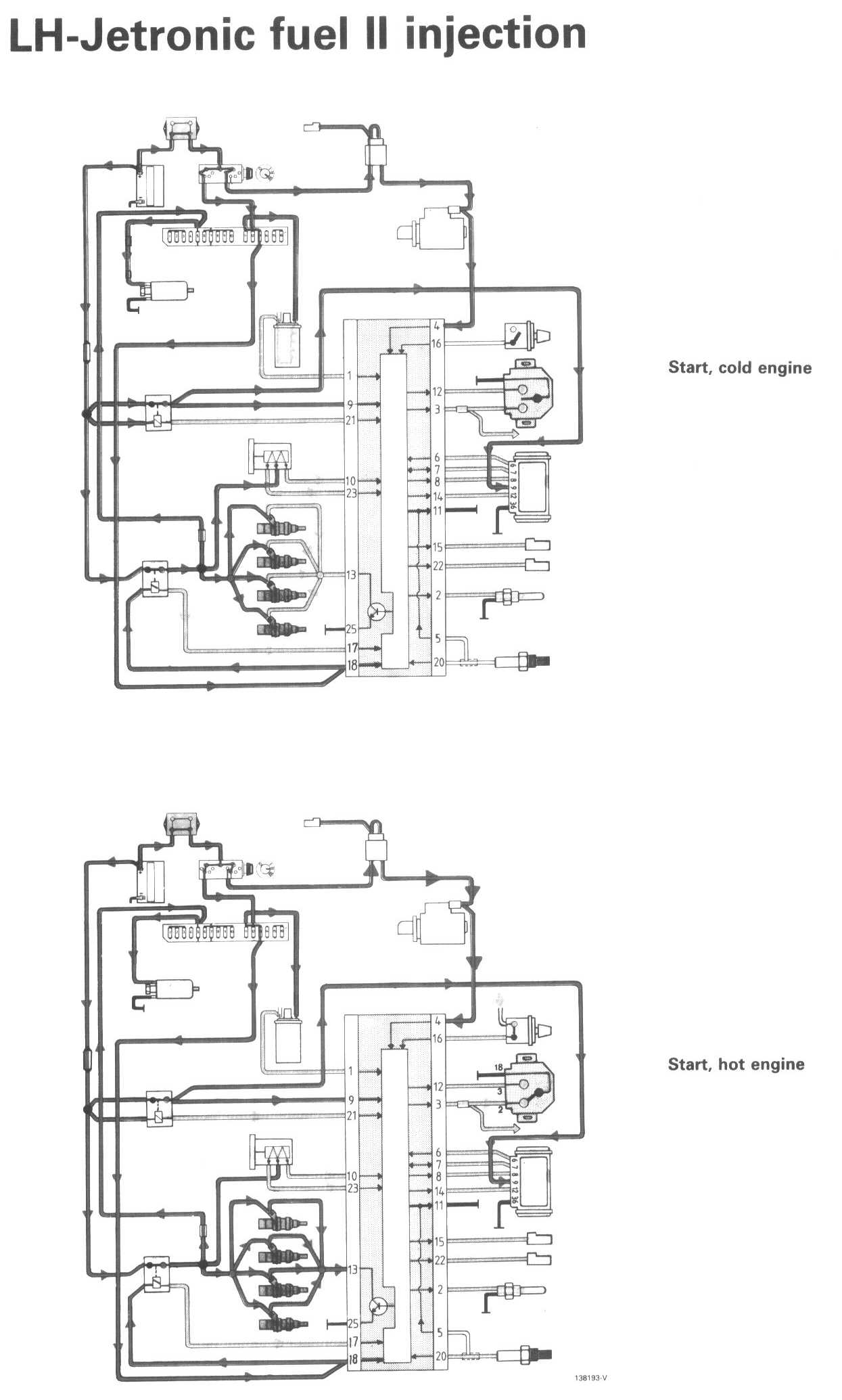

Conditions (Engine Cold, Engine Hot):

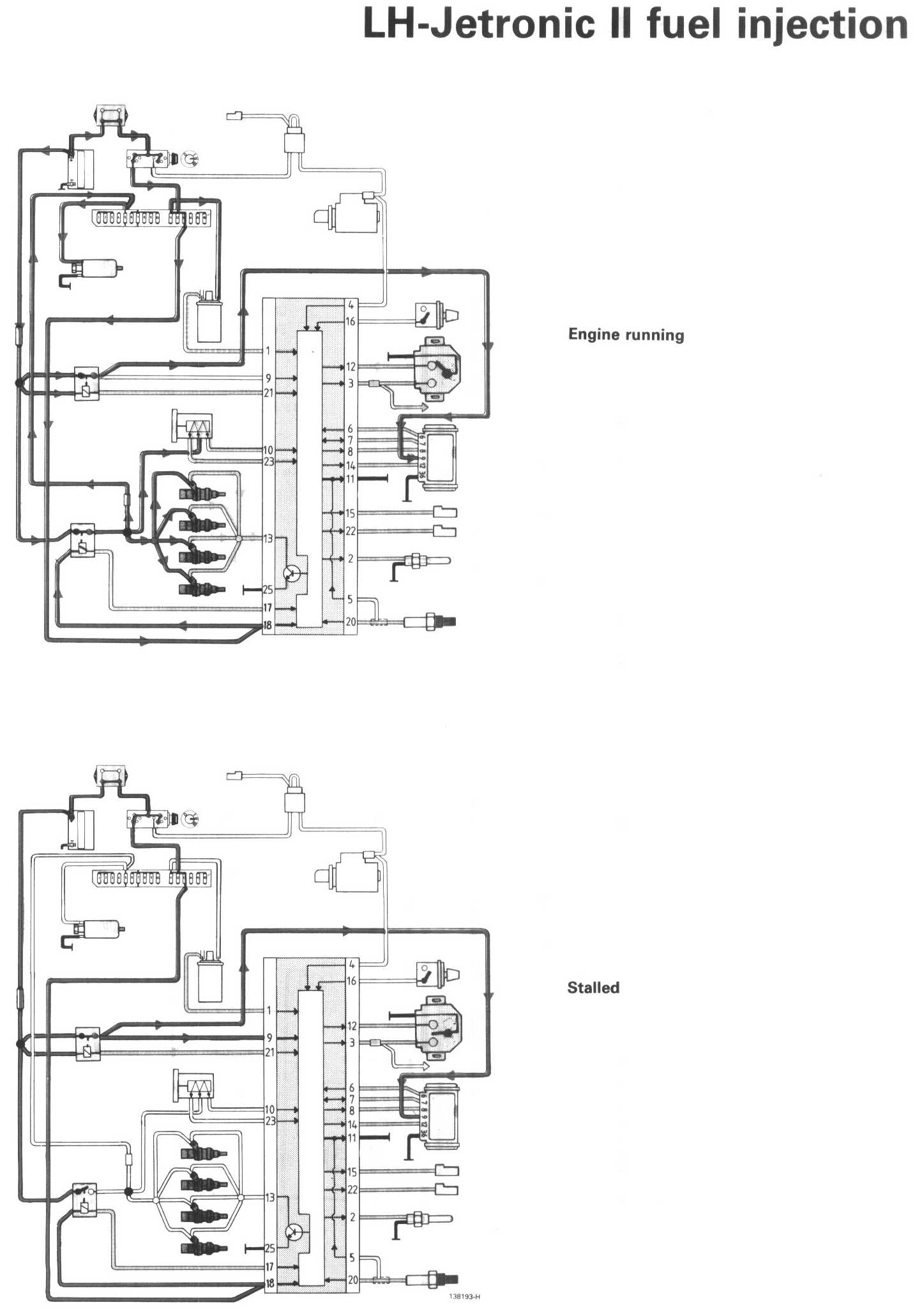

Conditions (Engine Running, Stalled):

LEGEND
A Control unit
B Microswitch, AC
C Ignition switch
D Fuel pump
E Main relay
F Fuel pump relay
G Fusebox
H Throttle switch
I Lambdasond sensor
J Starter motor
K Injectors
L Coolant temperature sensor
M Air mass meter
N Ignition coil
O Idling valve
P Fuse (25-amp)
