System Diagram

Wiring Diagrams:

Component / Connector Views:

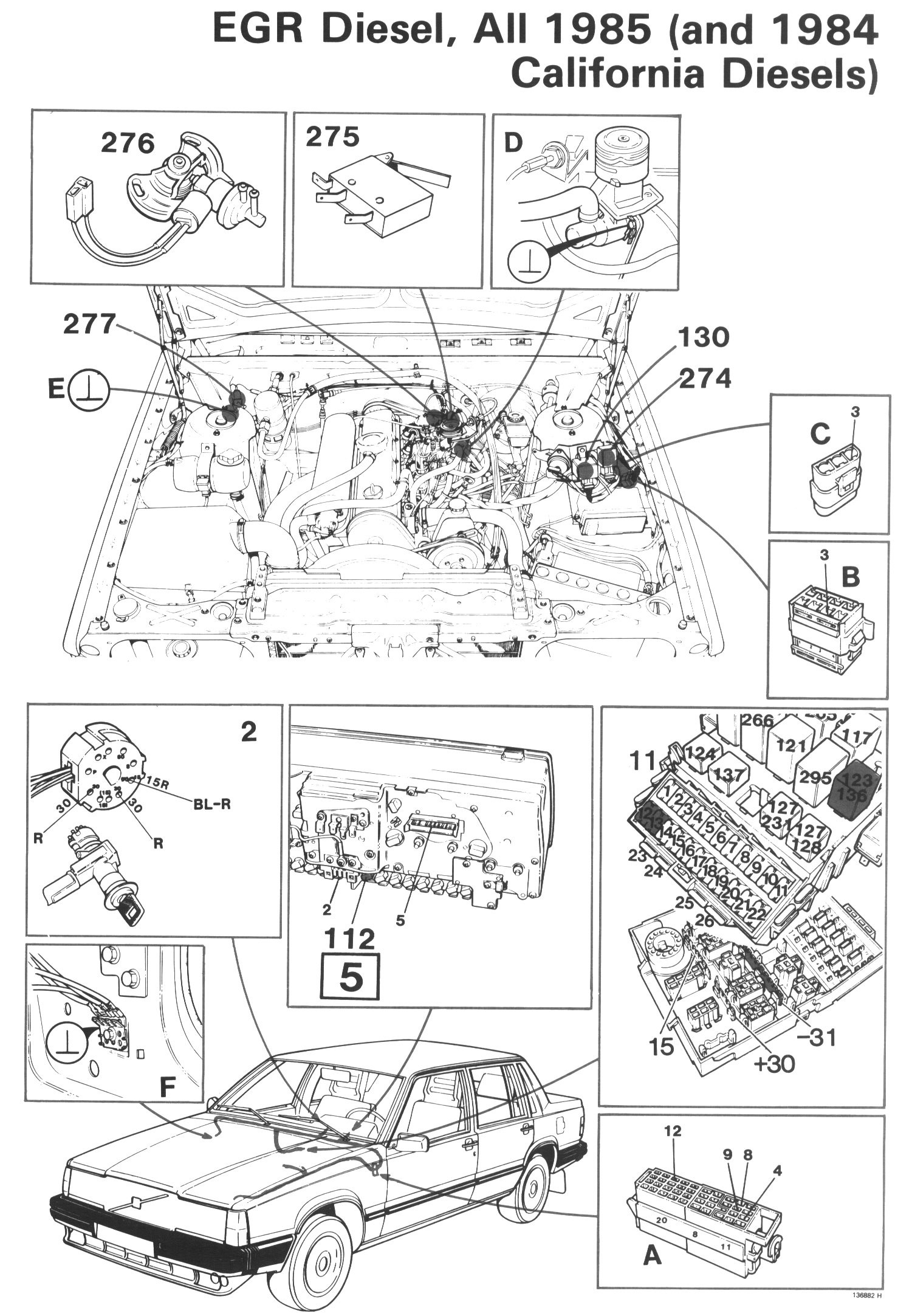

LEGEND
2 Ignition switch
11 Fuse box
31 Ground panel in central electrical unit
112 M 46 overdrive indicator lamp
123 M 46 overdrive relay
130 Glow plug relay
274 Delay relay
275 Idling switch
276 Microswitch
277 3-way valve
A Connector, left A-post
B Connector, left wheel housing
C Connector, left wheel housing
D Ground point, engine
E Ground point, right wheel housing
F Ground point, right A-post

Fuse no.
12 (1985) - 13 (1984)
13 (1985) - 10 (1984)
