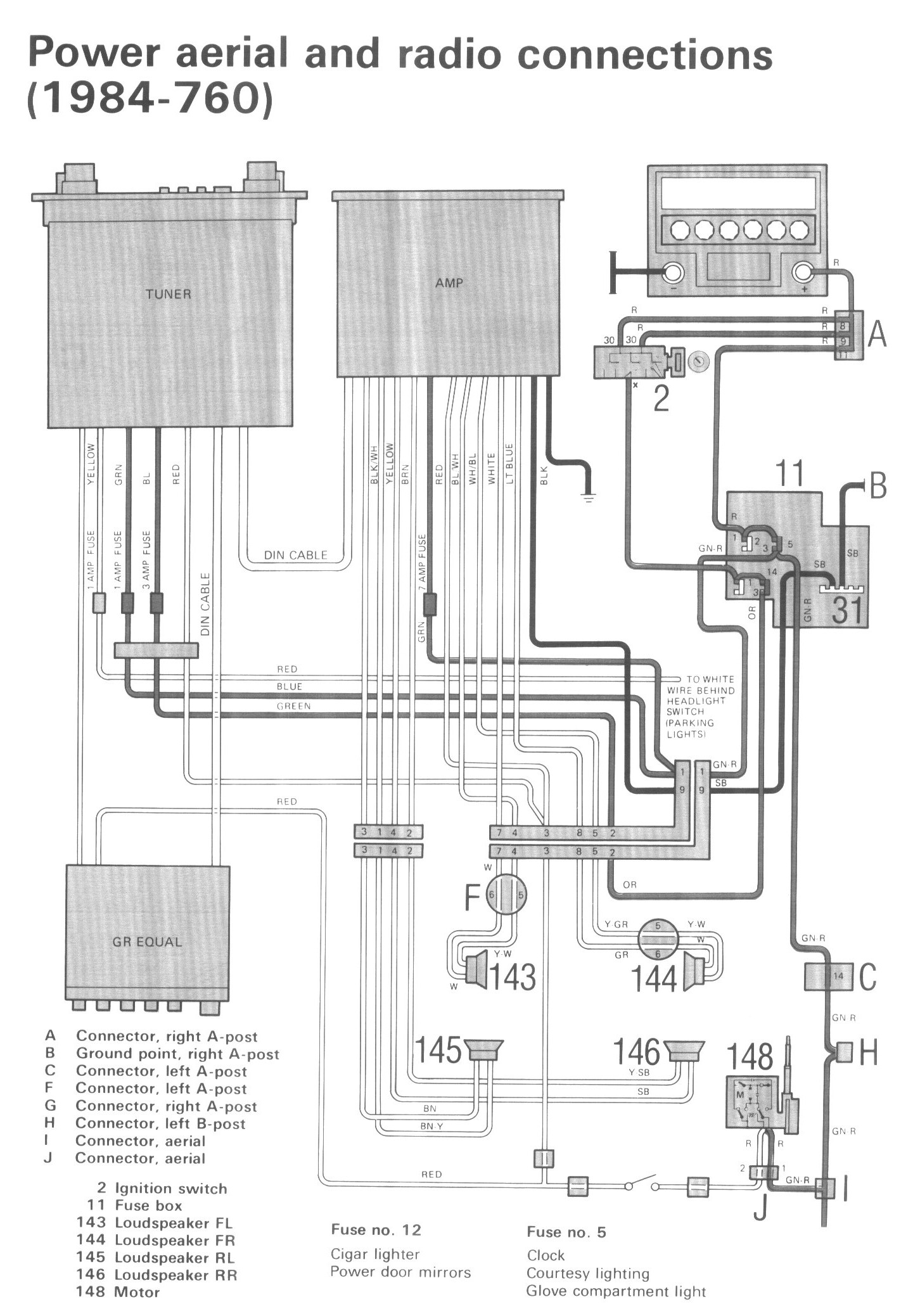

System Diagram

Wiring Diagrams:

Component / Connector Views:

LEGEND
A Connector, right A-post
B Ground point, right A-post
C Connector, left A-post
F Connector. left A-post
G Connector. right A-post
H Connector. left B-post
I Connector. aerial
J Connector. aerial

2 Ignition switch
11 Fuse box
143 Loudspeaker FL
144 Loudspeaker FR
145 Loudspeaker RL
146 Loudspeaker RR
148 Motor

Fuse no.12
Cigar lighter
Power door mirrors

Fuse no.5
Clock
Courtesy lighting
Glove compartment light
