Operation CHARM
: Car repair manuals for everyone.
Home
>>
Volvo
>>
1984
>>
760 L6-2383cc 2.4L DSL Turbo D24T
>>
Repair and Diagnosis
>>
Diagrams
>>
Mechanical Diagrams
>>
Manual Transmission/Transaxle
>>
System Diagram
System Diagram

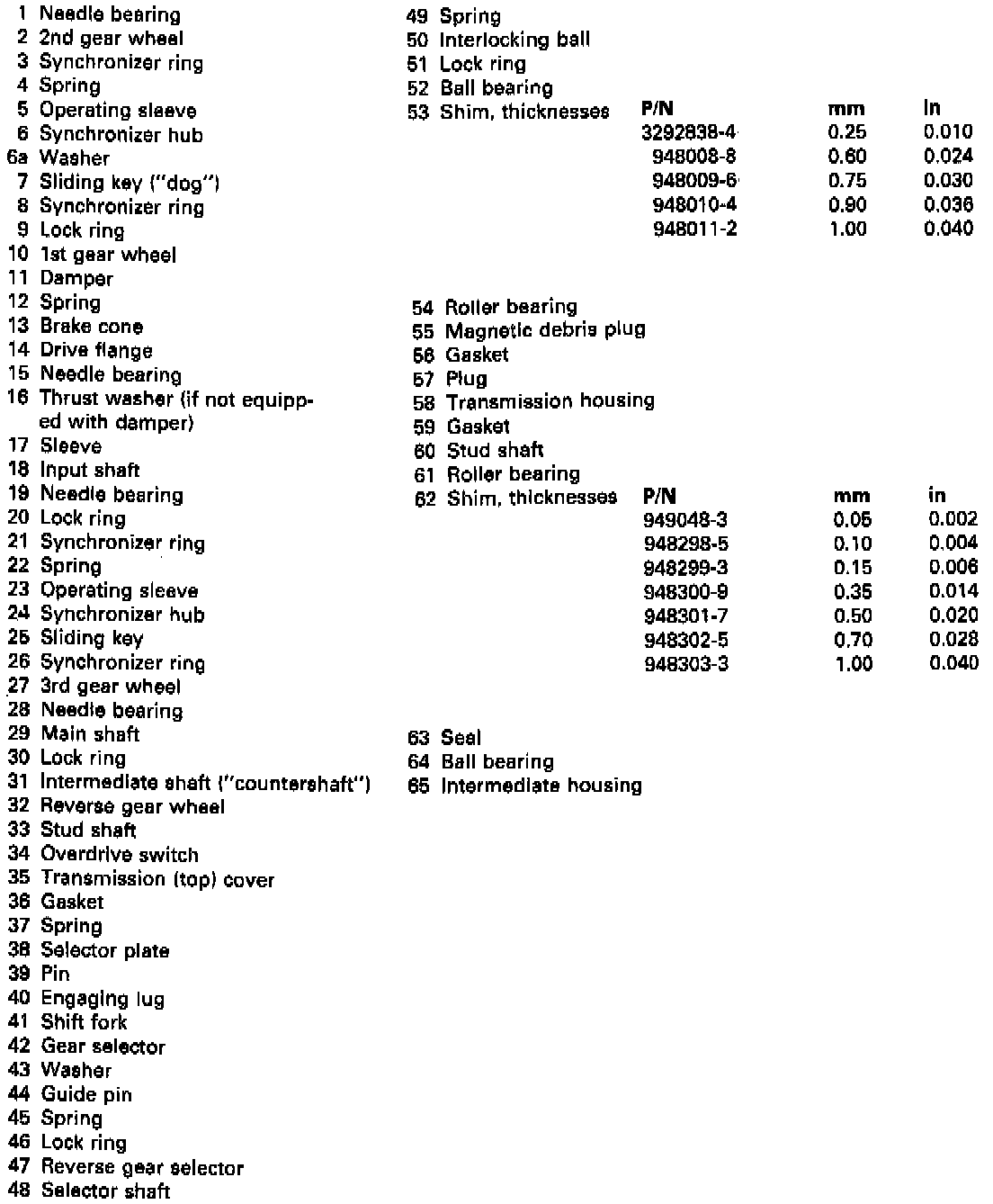

Transmission Components List
Transmission Components Diagram
