Tachometer: Description and Operation

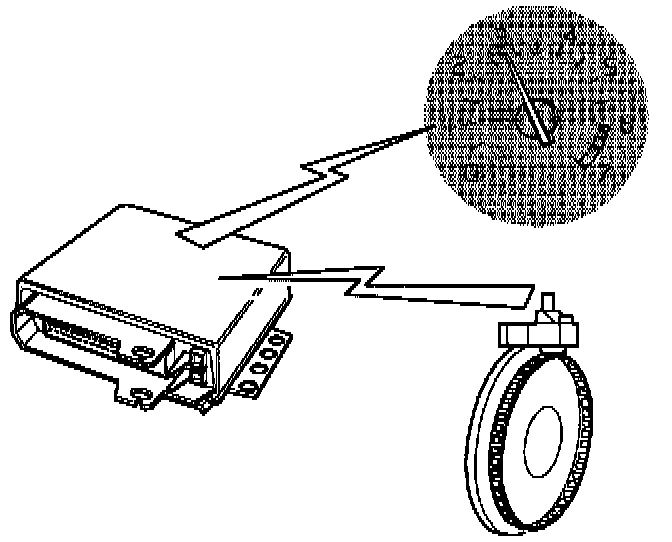

The revolution counter shows the engine's revolutions. The counter receives its signal from the ICM, 2 pulses/rev.

The ICM receives information on the engine's revolutions from the RPM sensor mounted on the flywheel.
