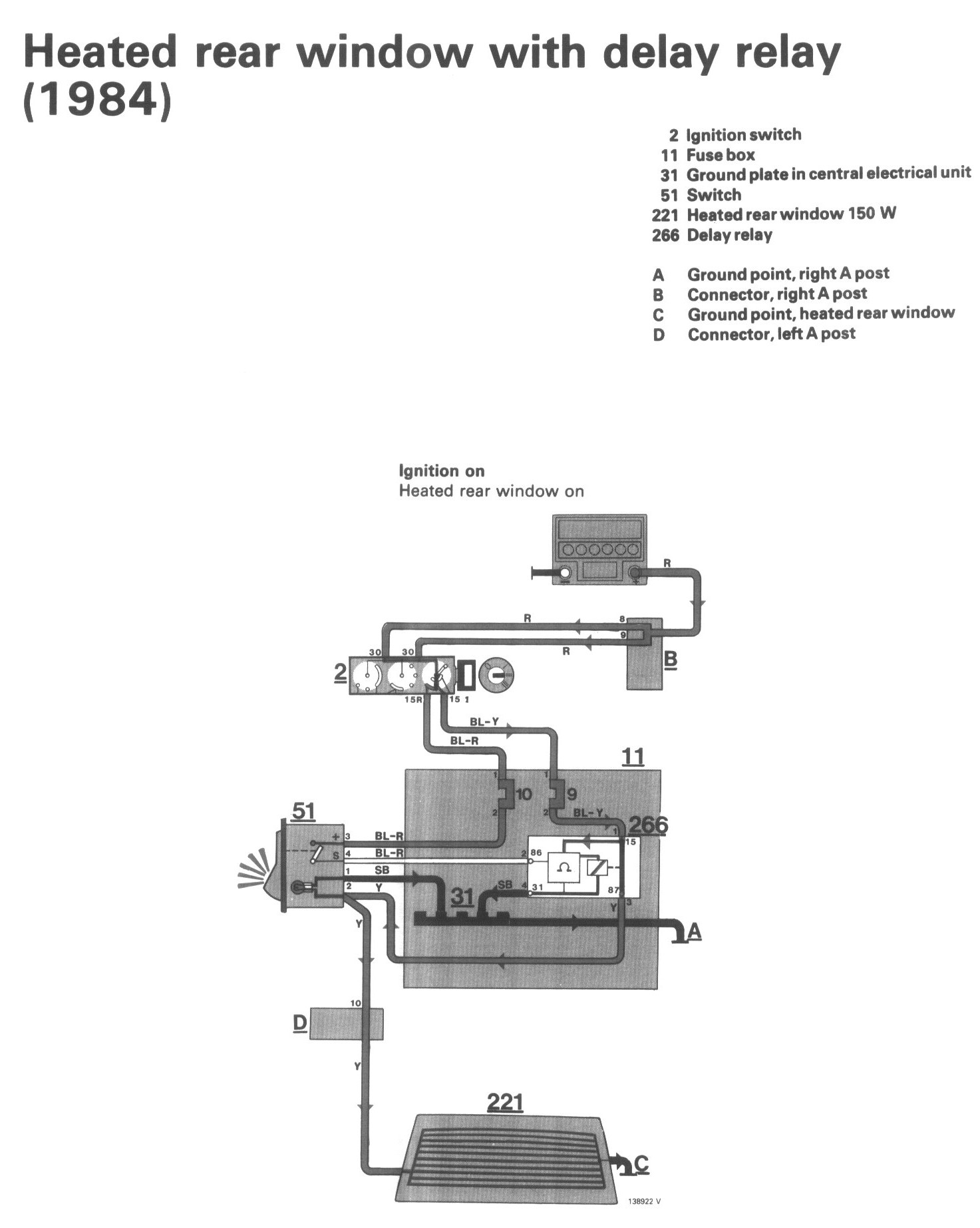

Electrical Diagrams

Wiring Diagrams:

Component / Connector Views:

LEGEND
2 Ignition switch
11 Fusebox
31 Ground plate in central electrical unit
51 Switch
221 Heated rear window 150 W
266 Delay relay

A Ground point, right A post
B Connector, right A post
C Ground point, heated rear window
D Connector, left A poet
