Oil Level Warning Indicator

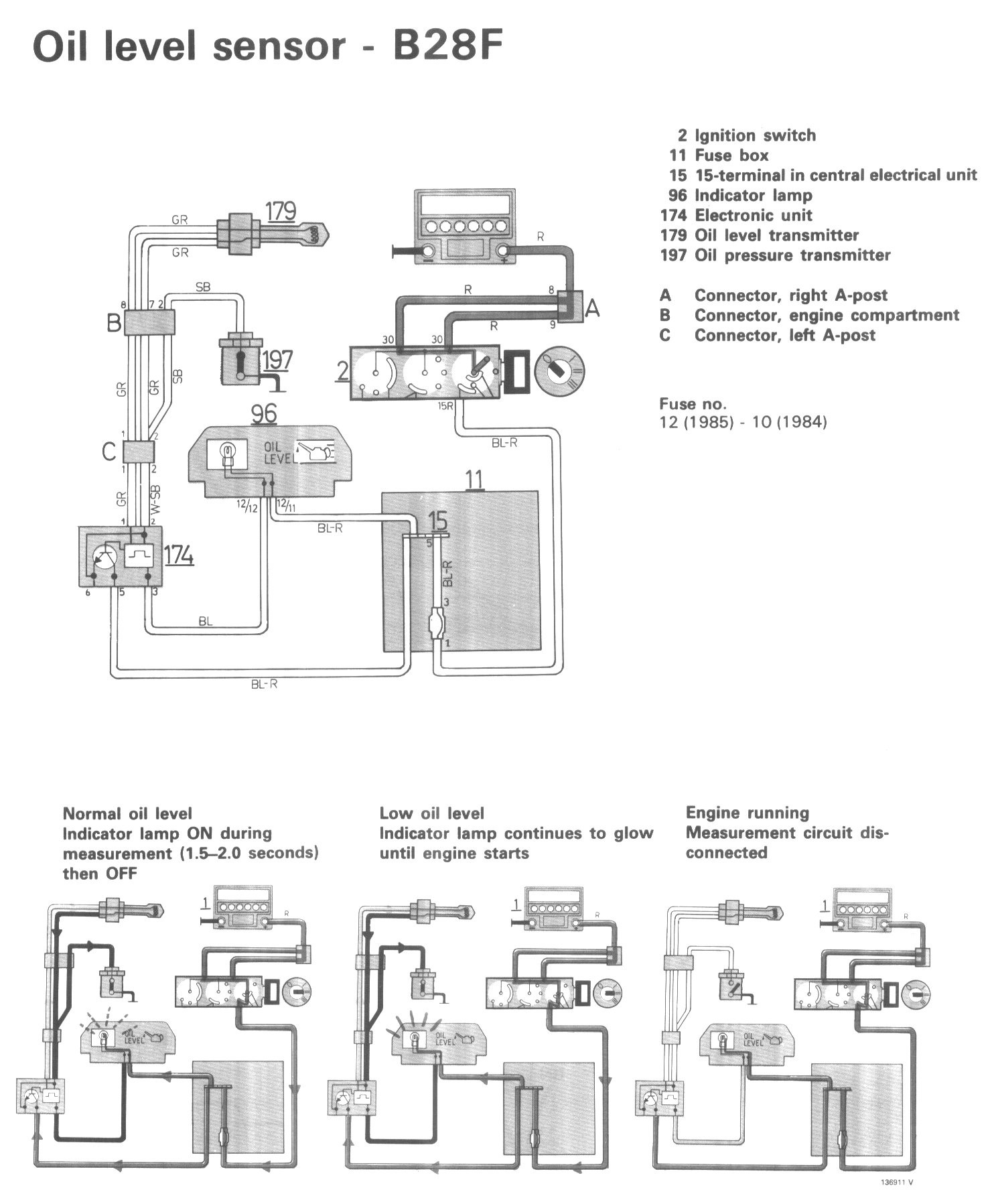

Wiring Diagrams:

Component / Connector Views:

LEGEND
2 Ignition switch
11 Fuse box
15 15-terminal in central electrical unit
96 Indicator lamp
174 Electronic unit
179 Oil level transmitter
197 Oil pressure transmitter

A Connector, right A-post
B Connector, engine compartment
C Connector, left A-post

Fuse no.
12 (1985) - 10 (1984)
