Constant Idle Speed System, B28F

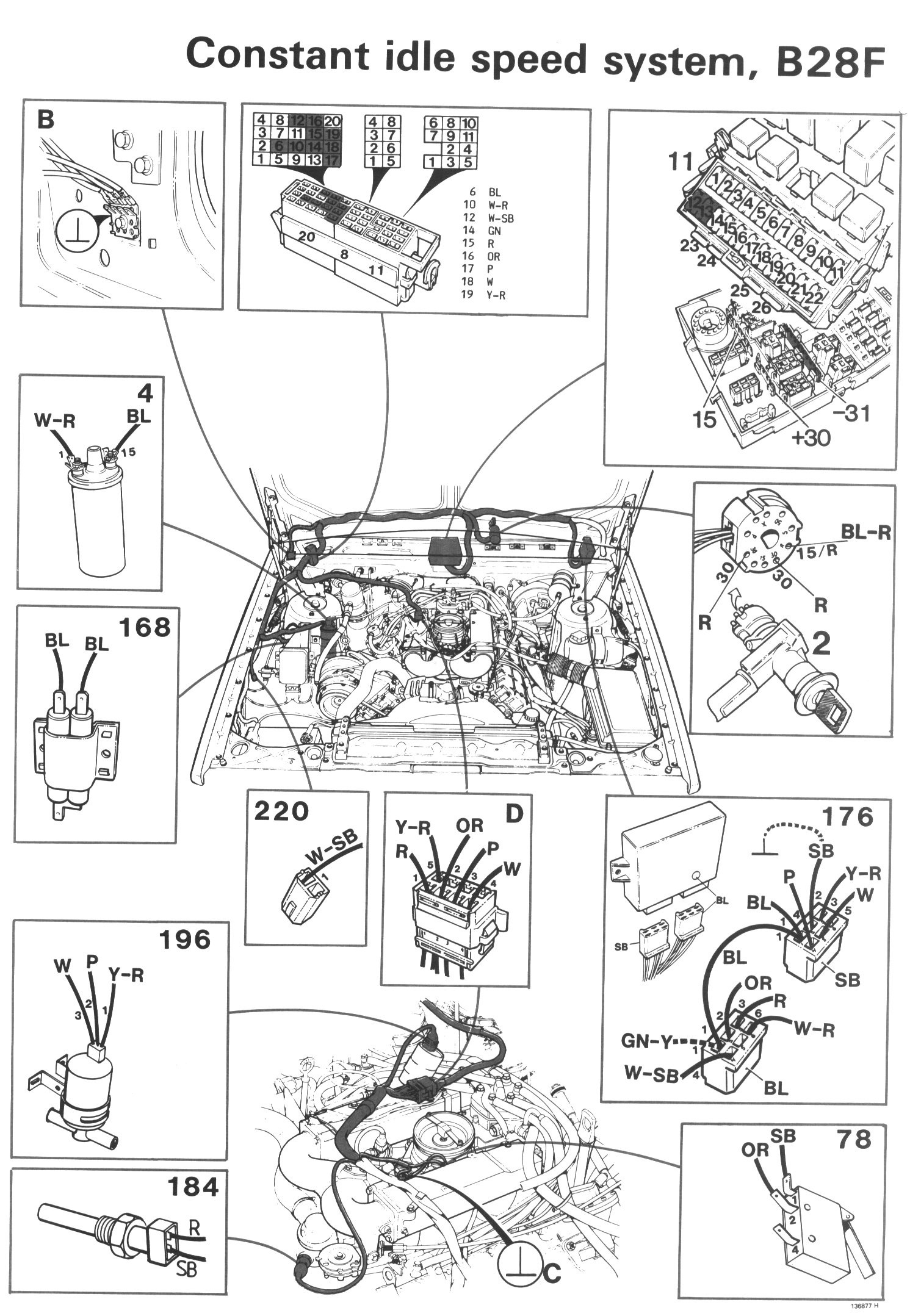

Component Locations:

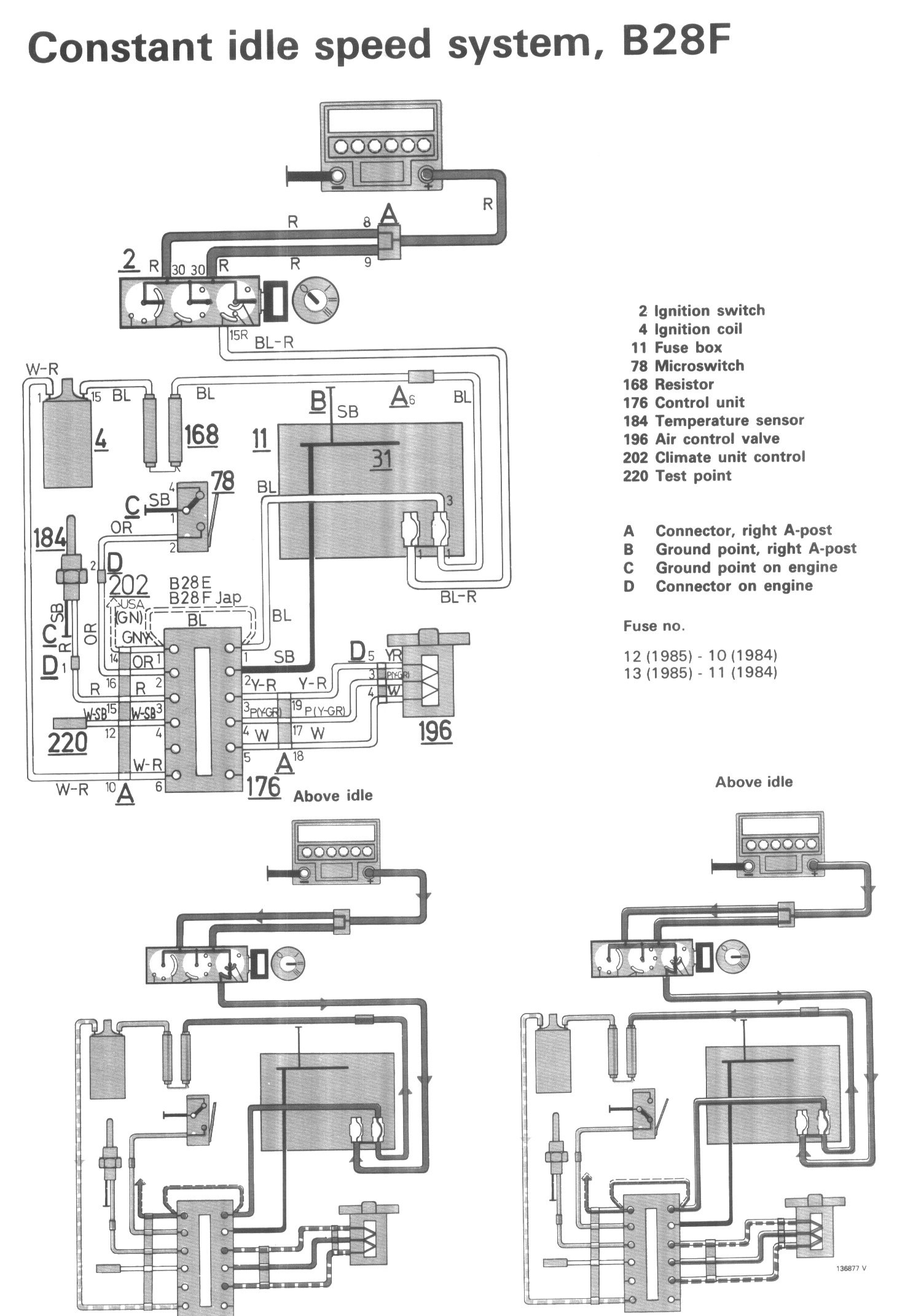

Wiring Diagram:

LEGEND
2 Ignition switch
4 Ignition coil
11 Fuse box
78 Microswitch
168 Resistor
176 Control unit
184 Temperature sensor
196 Air control valve
202 Climate unit control
220 Test point
A Connector, right A-post
B Ground point, right A-post
C Ground point on engine
D Connector on engine

Fuse no.
12 (1985) - 10 (1984)
13 (1985) - 11 (1984)
