Courtesy Lamp
>>
Locations
>>

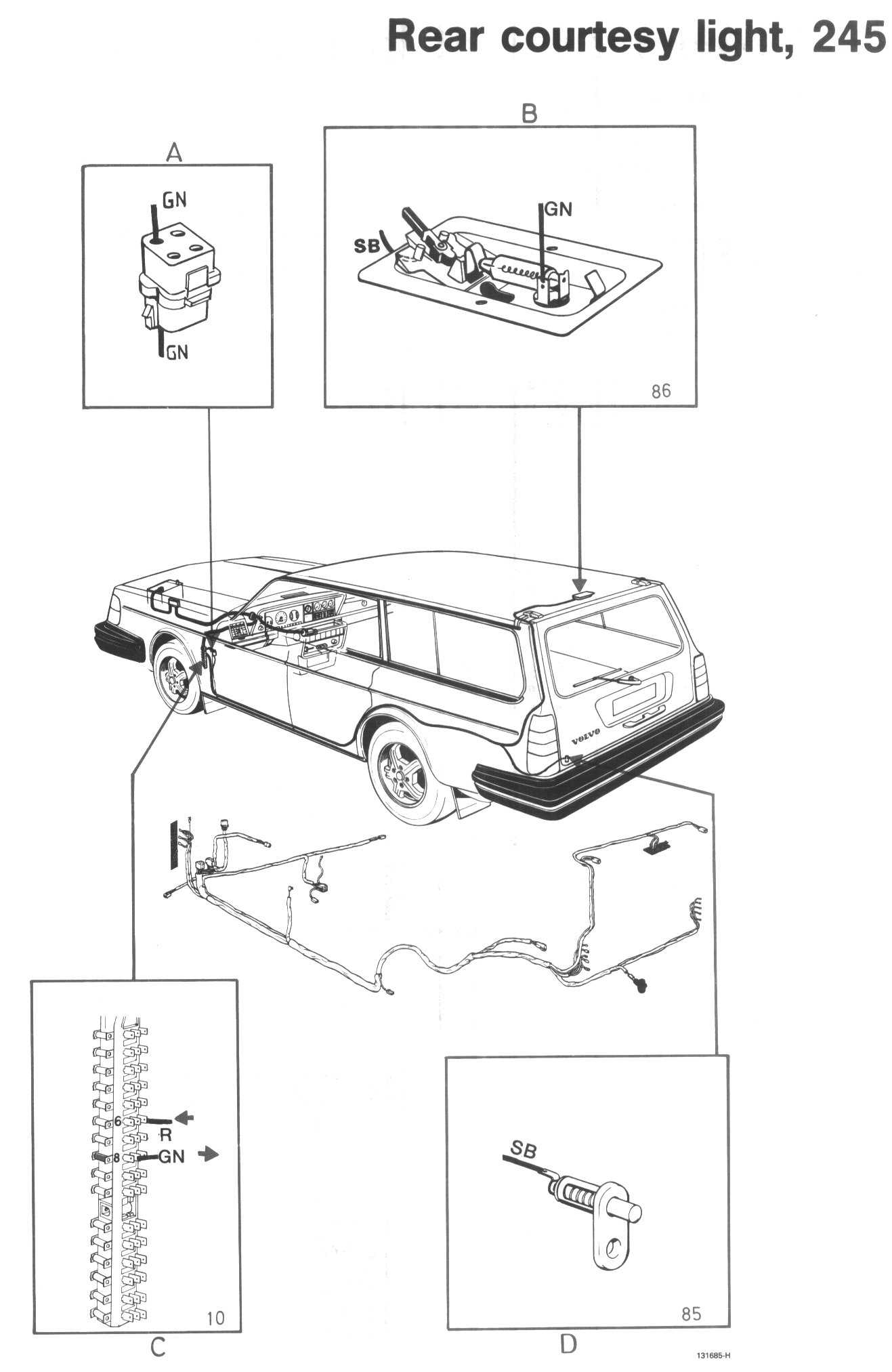

Rear Courtesy Light, 245
Rear Courtesy Light, 245
Locations/Connector Veiws:

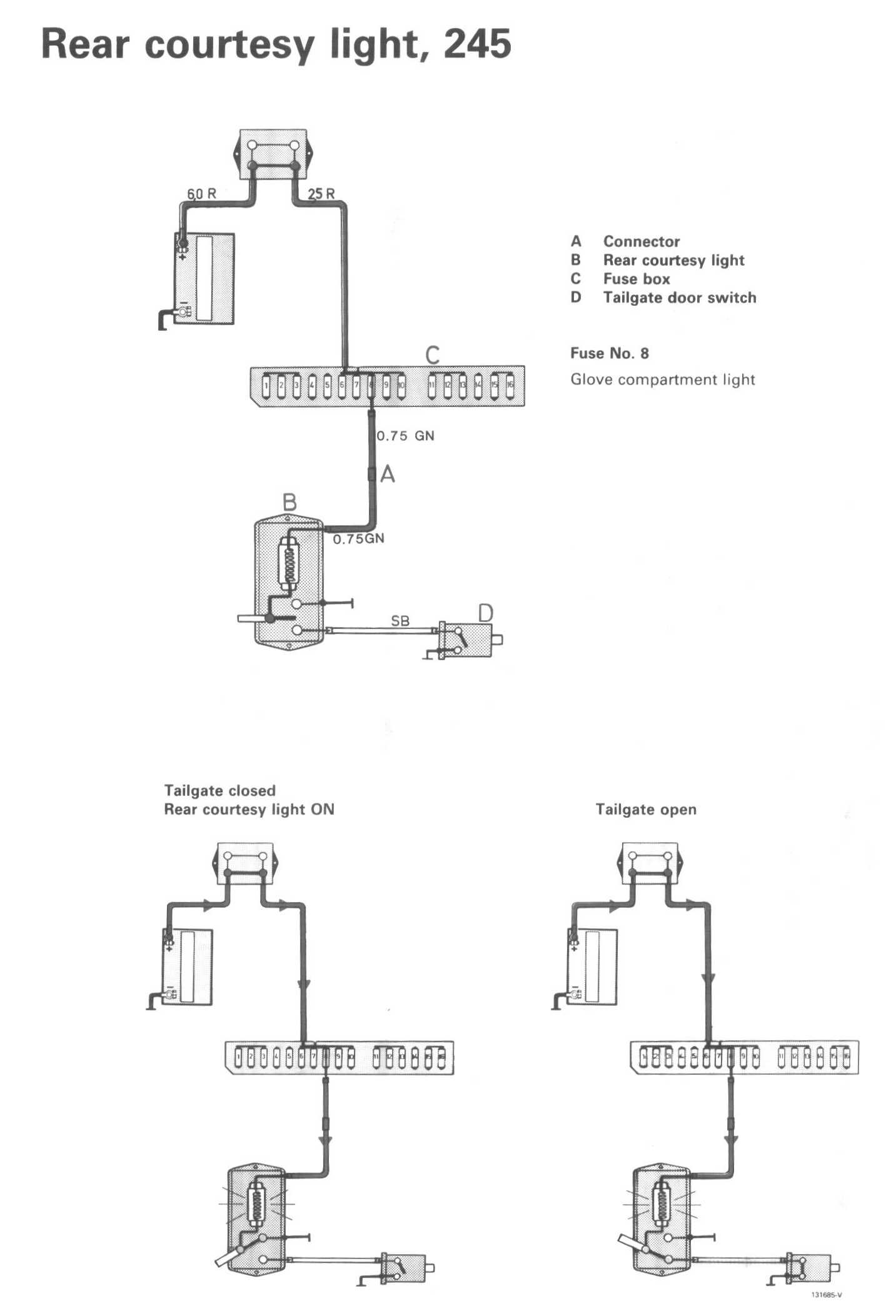

Wiring Diagrams:
LEGEND
A
Connector
B
Rear courtesy light
C
Fuse box
D
Tailgate door switch
