Bulb Failure Warning Sensor + Brake Light Control (Europe)

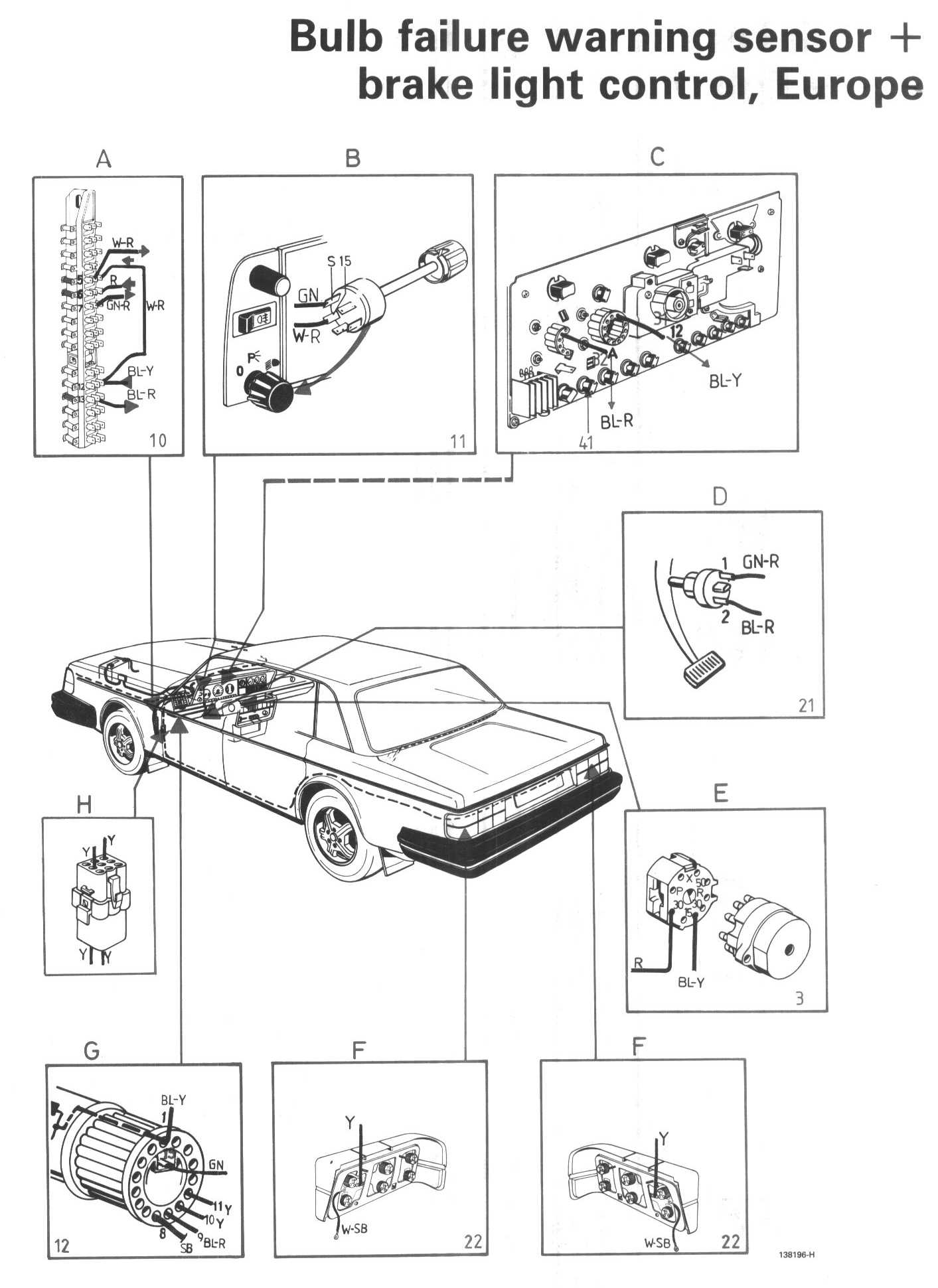

Locations/Connector Veiws:
Wiring Diagrams:

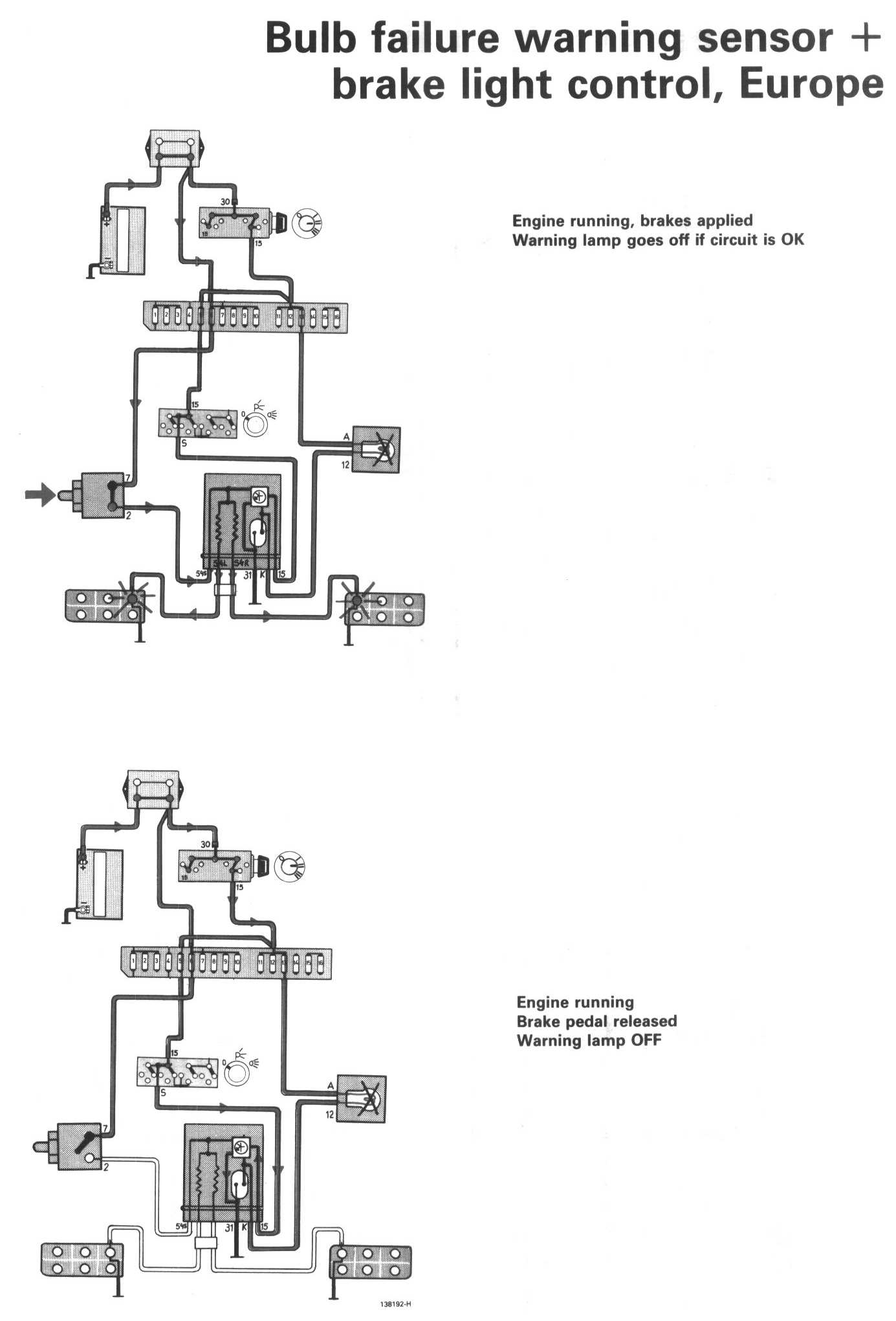

Conditions 1:

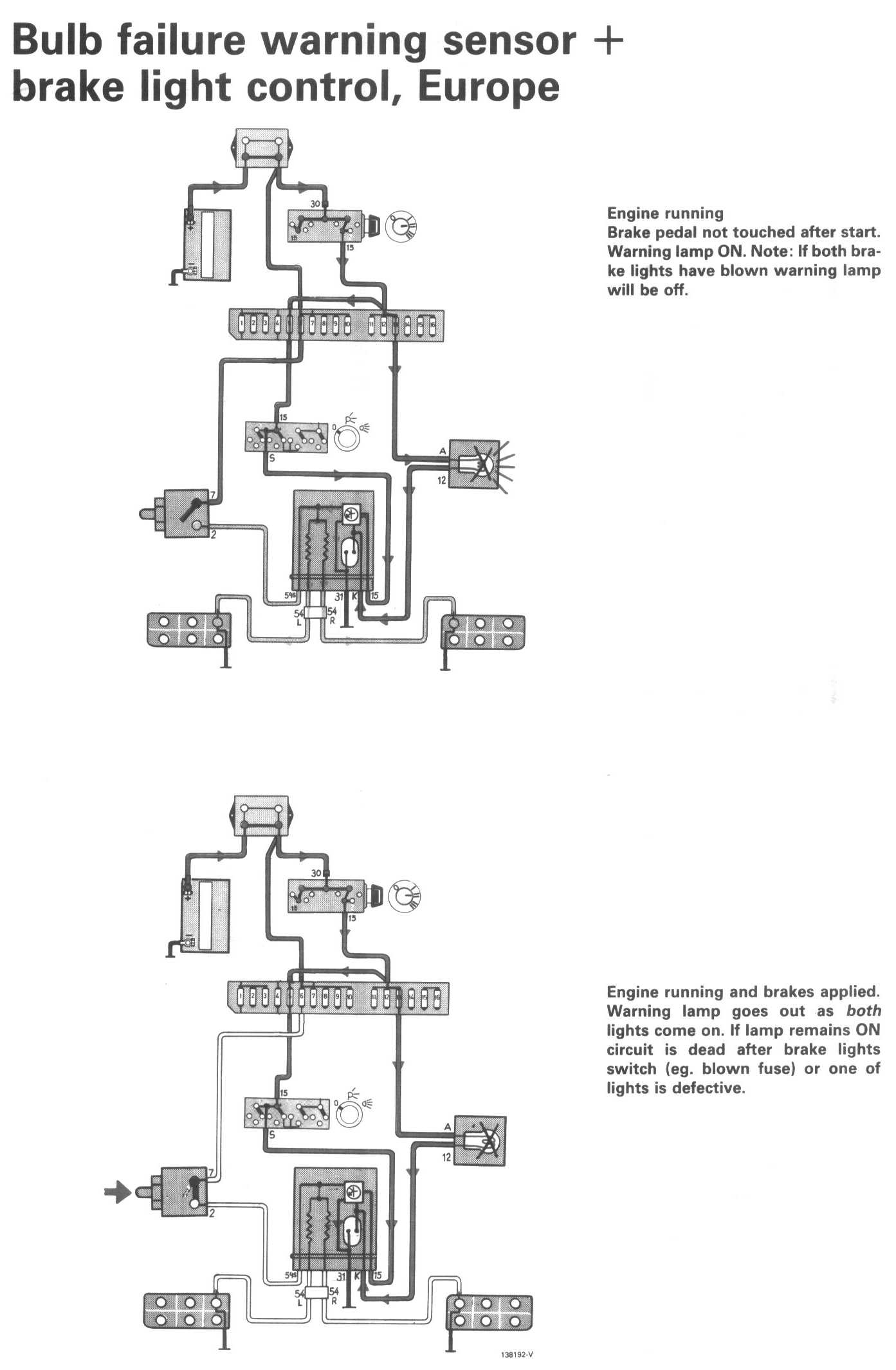

Conditions 2:
LEGEND
A Fusebox
B Light switch
C Warning lamp, bulb failure
D Brake light switch
E Ignition switch
F Brake light
G Sensor
H Connector
