Clock

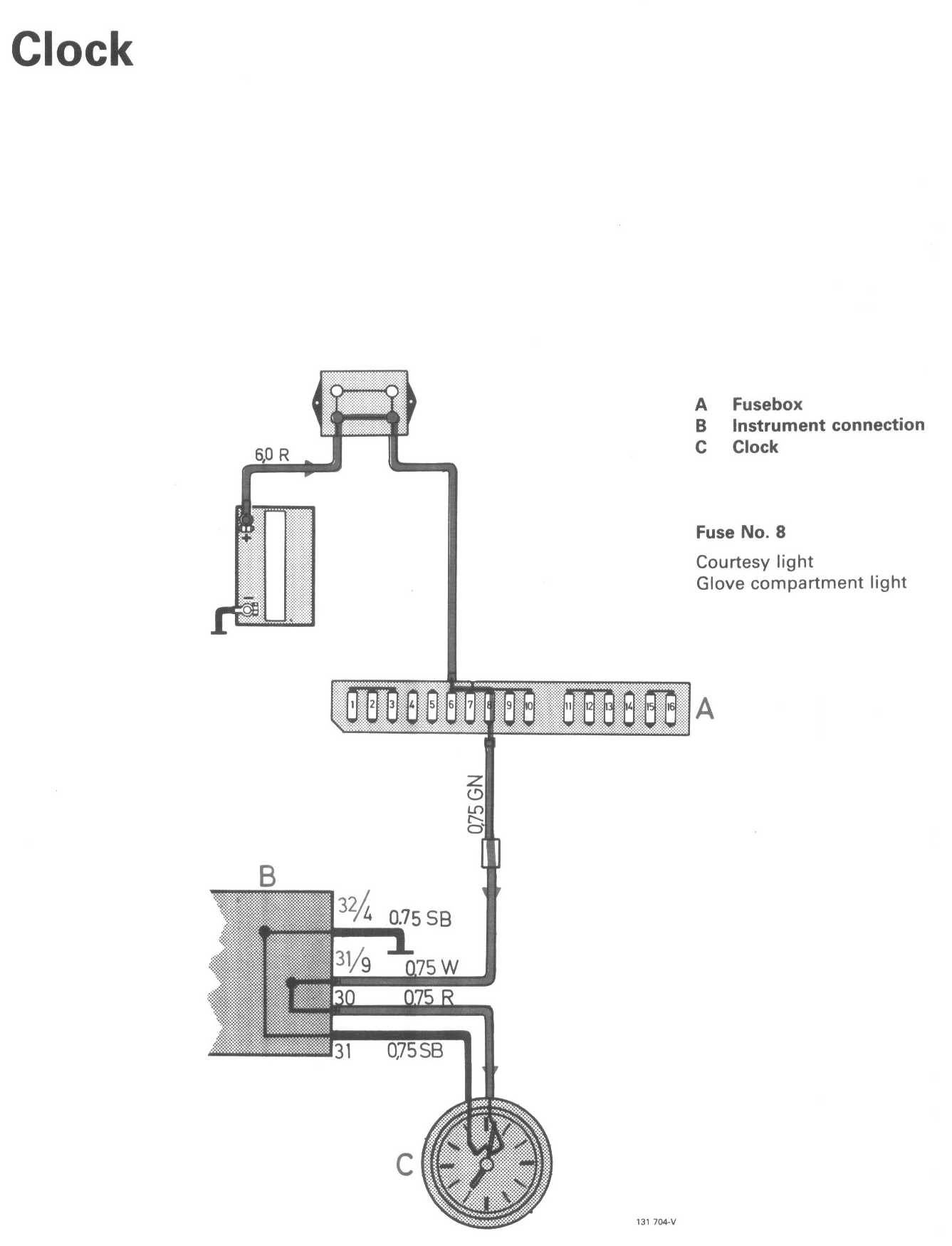

Wiring Diagrams:

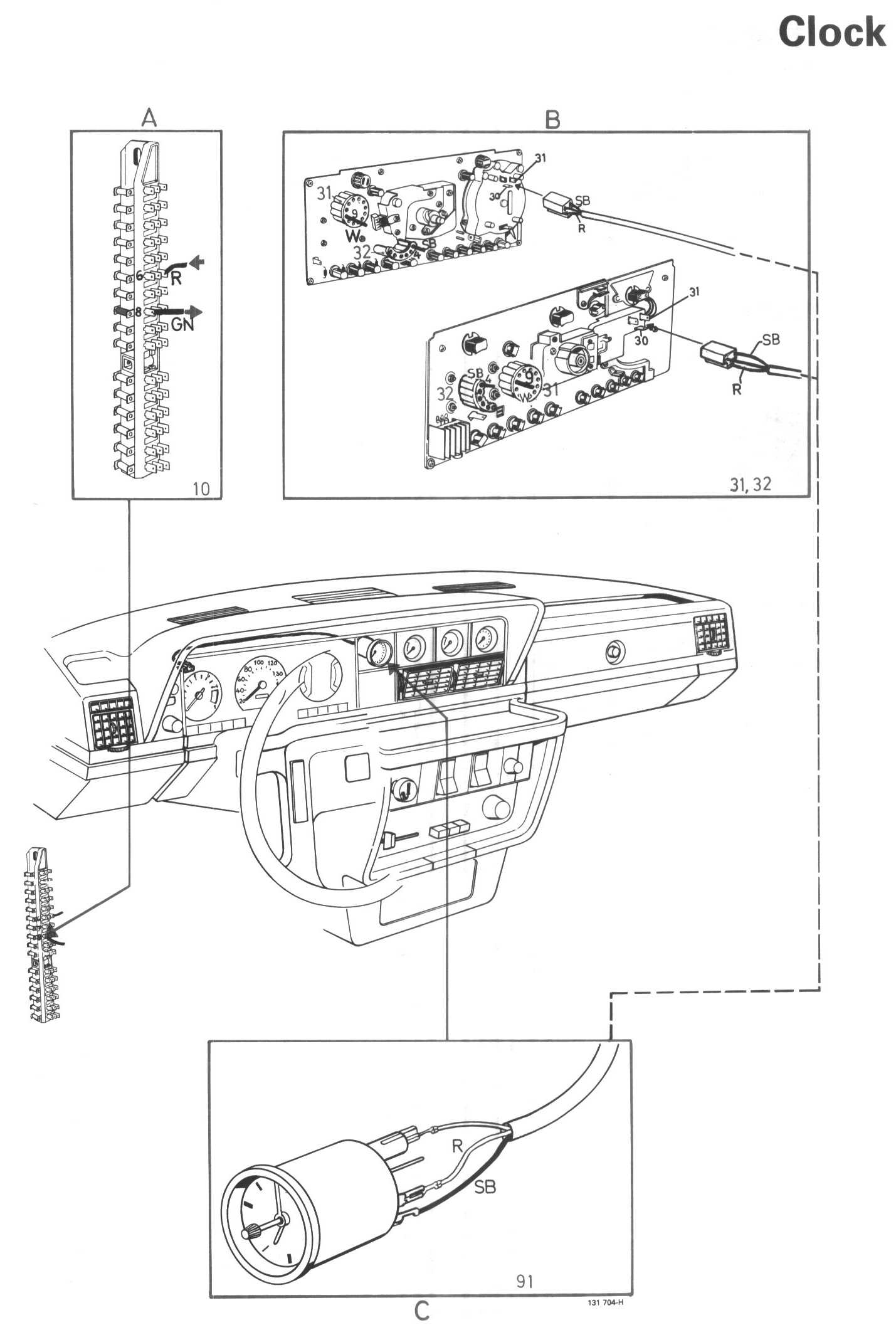

Locations/Connector Veiws:




LEGEND
A Fusebox
B Instrument connection
C Clock
