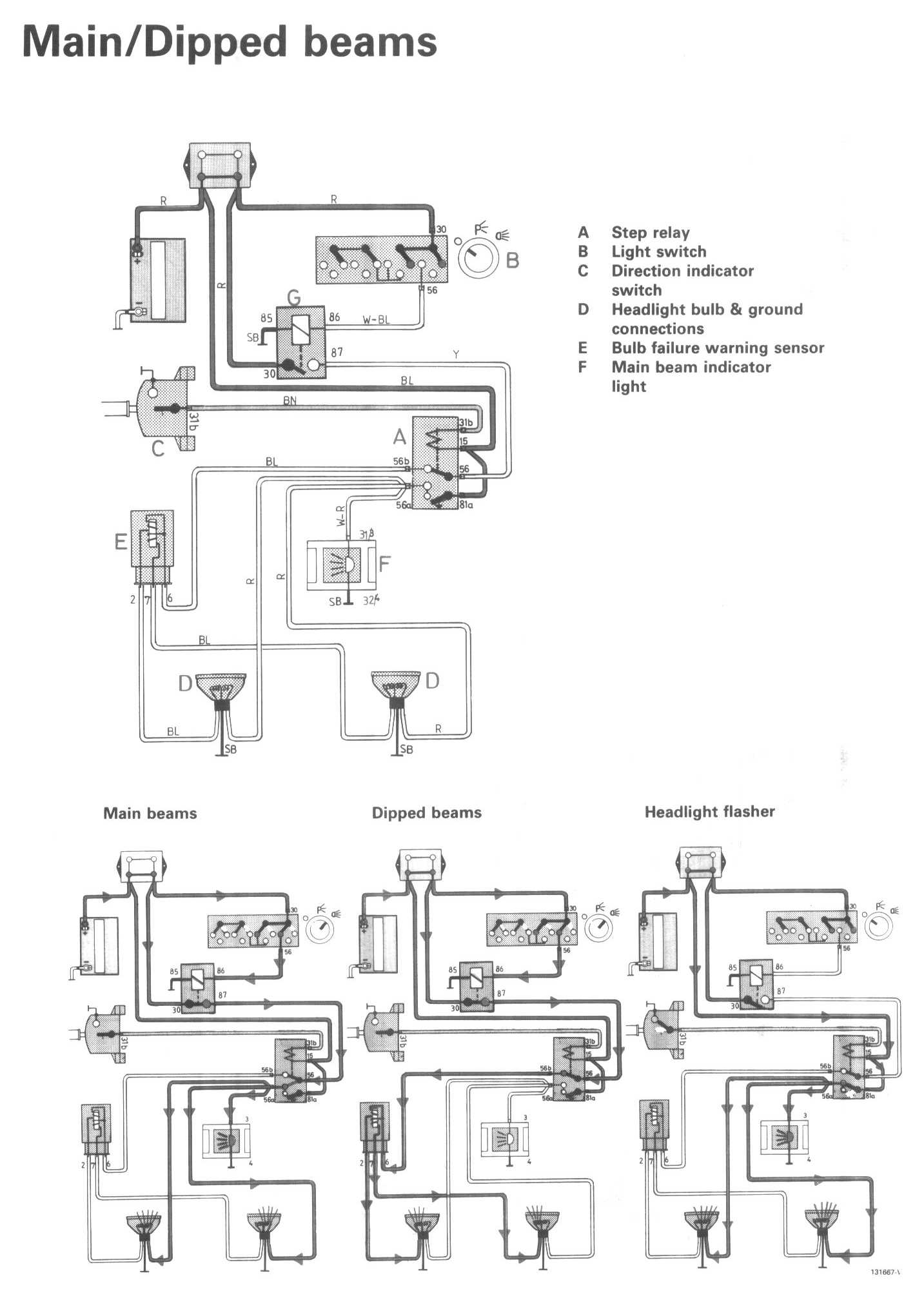

Main/Dipped Beams

Wiring Diagrams:

Locations/Connector Veiws:

LEGEND
A Step relay
B Light switch
C Direction indicator switch
D Headlight bulb & ground connections
E Bulb failure warning sensor
F Main beam indicator light
