Breakerless Electronic Ignition System

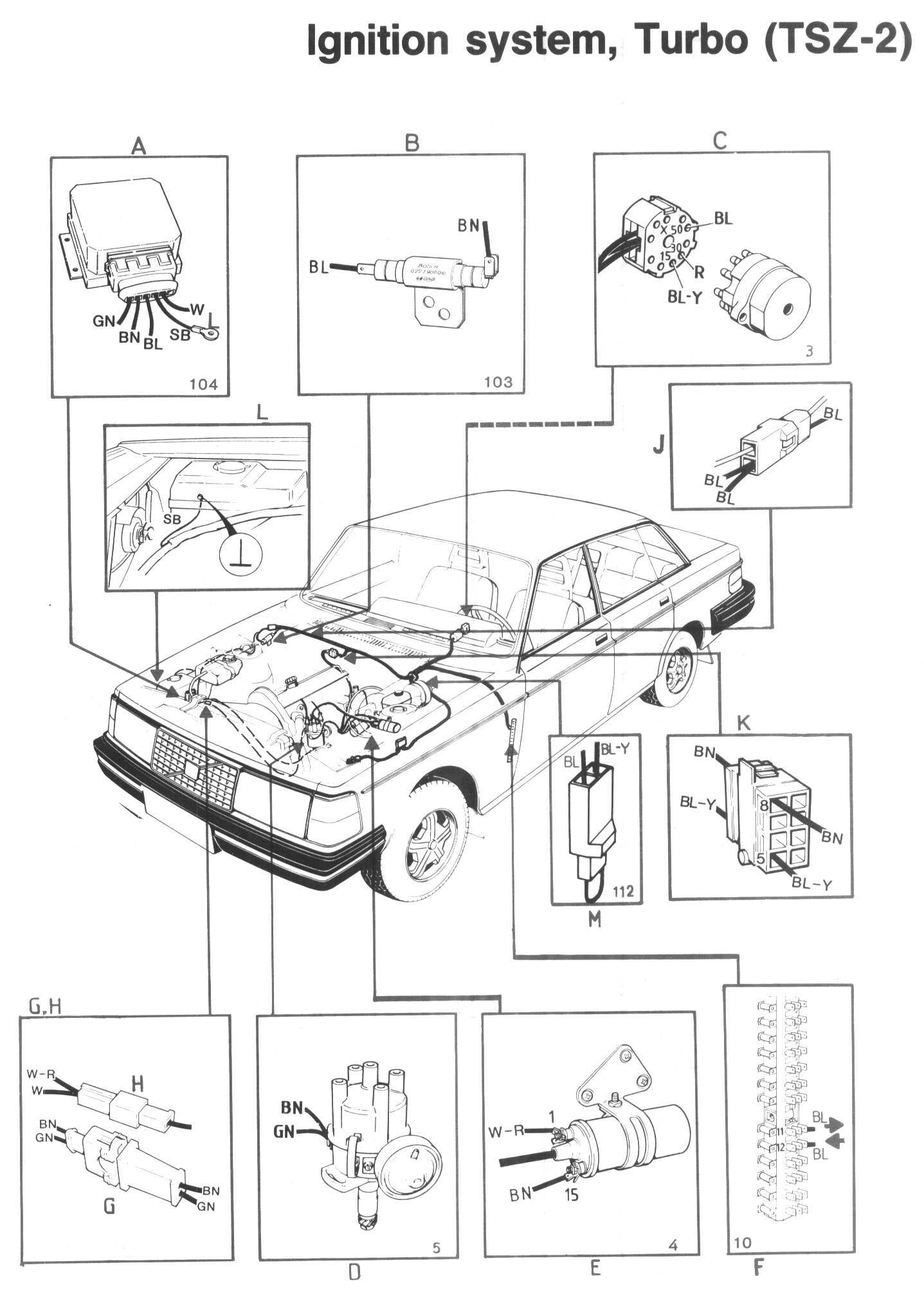

Locations/Connector Veiws:

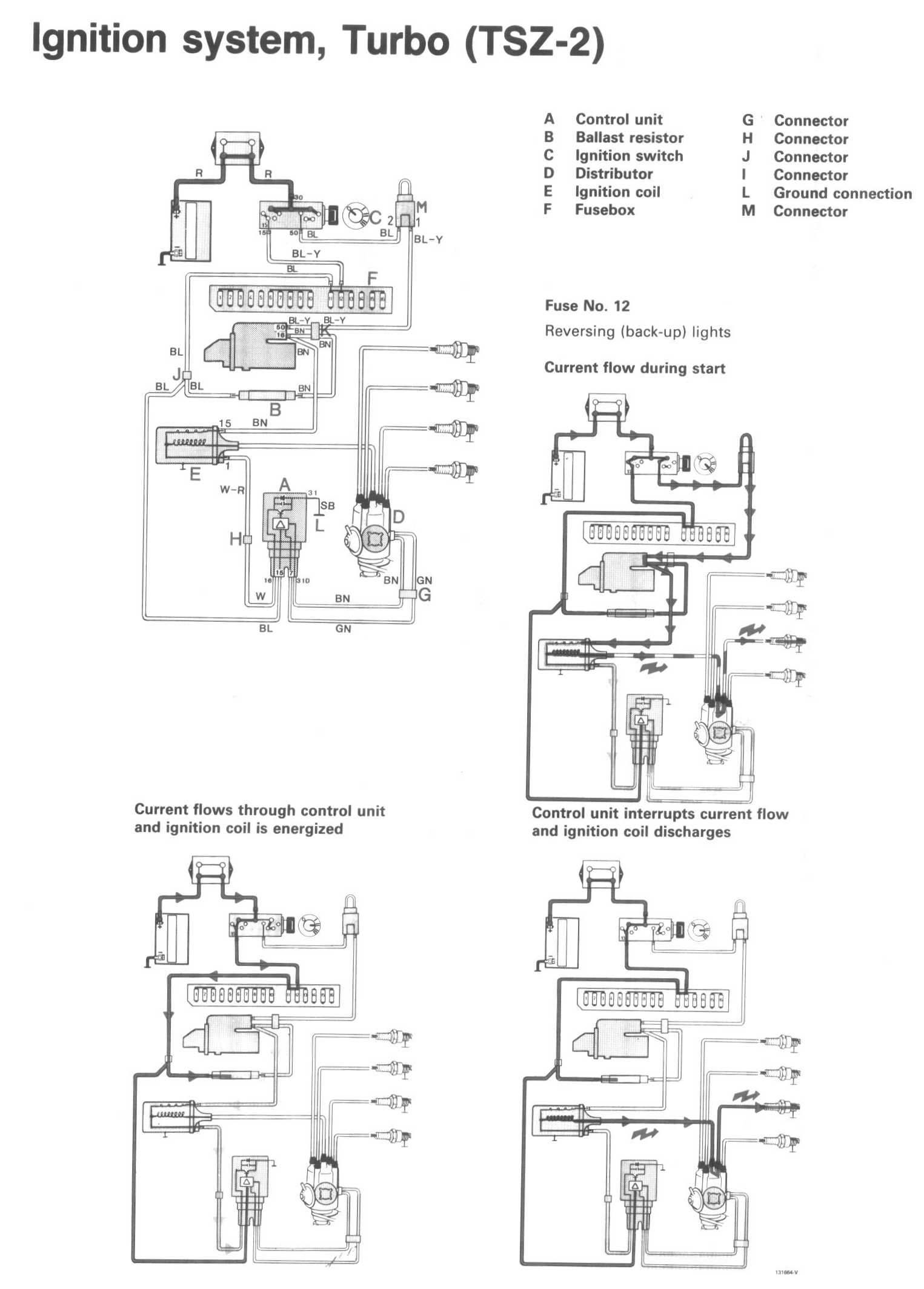

Wiring Diagrams:

LEGEND
A Control unit
B Ballast resistor
C Ignition switch
D Distributor
E Ignition coil
F Fusebox
G Connector
H Connector
J Connector
I Connector
L Ground connection
M Connector
