Intercooler

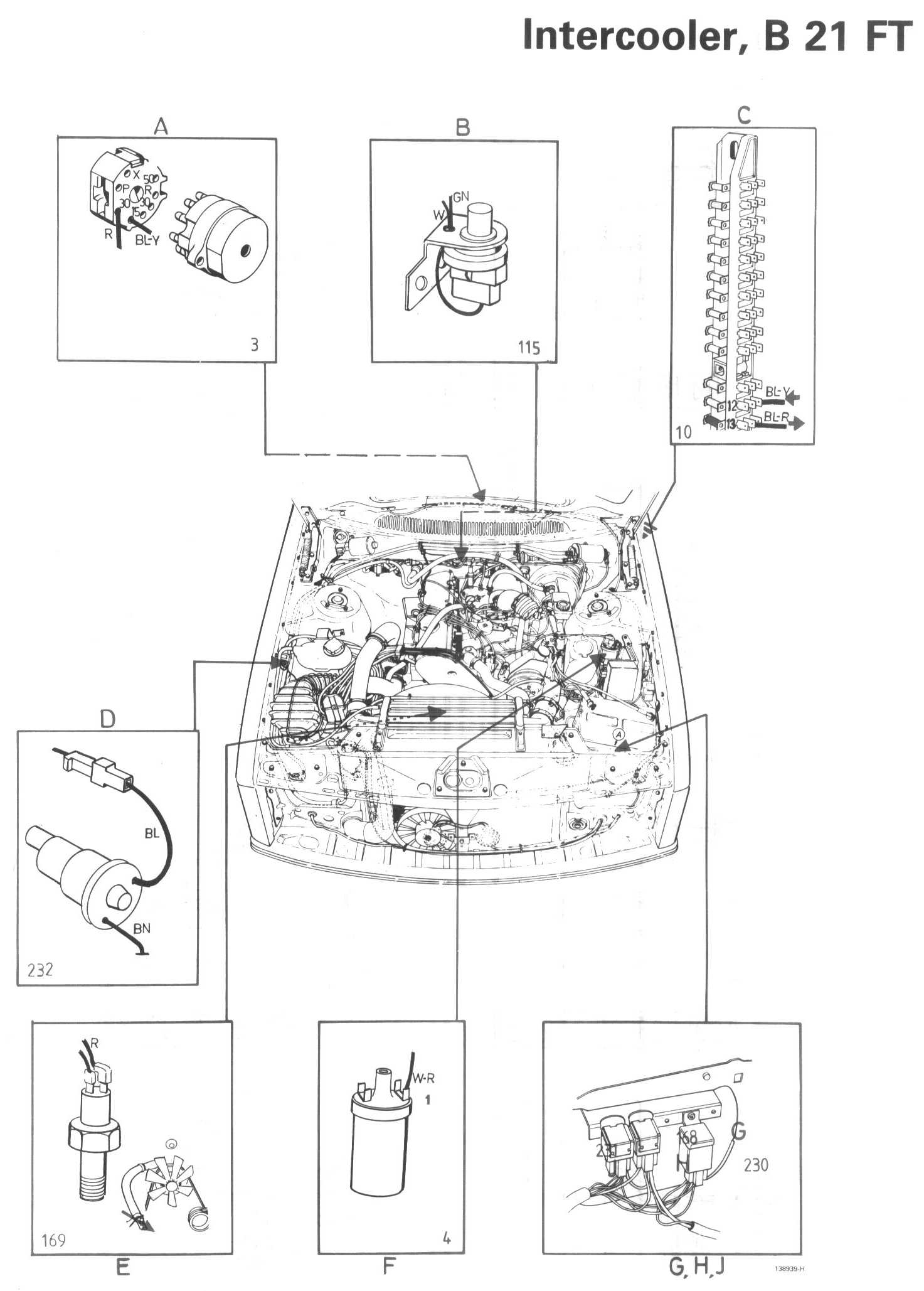

Locations/Connector Veiws:

Wiring Diagrams:

LEGEND
A Ignition switch
B Microswitch
C Fuse box
D Solenoid valve, charge pressure
E Electric cooling fan thermostat
F Ignition coil
G Engine rpm relay
H Electric cooling fan relay
J Relay (disengaging of AC)
