Electrical Diagrams

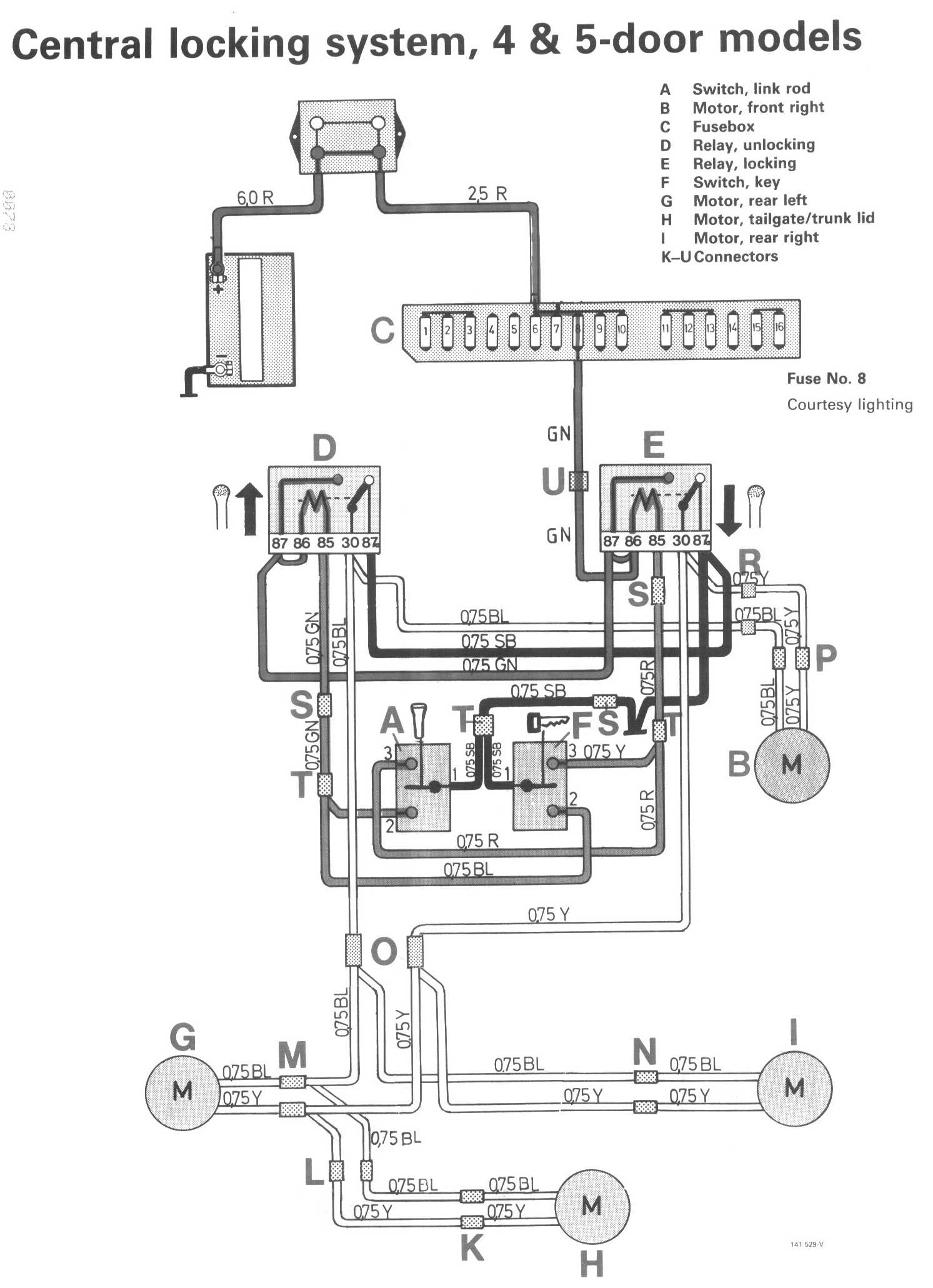

Wiring Diagrams:

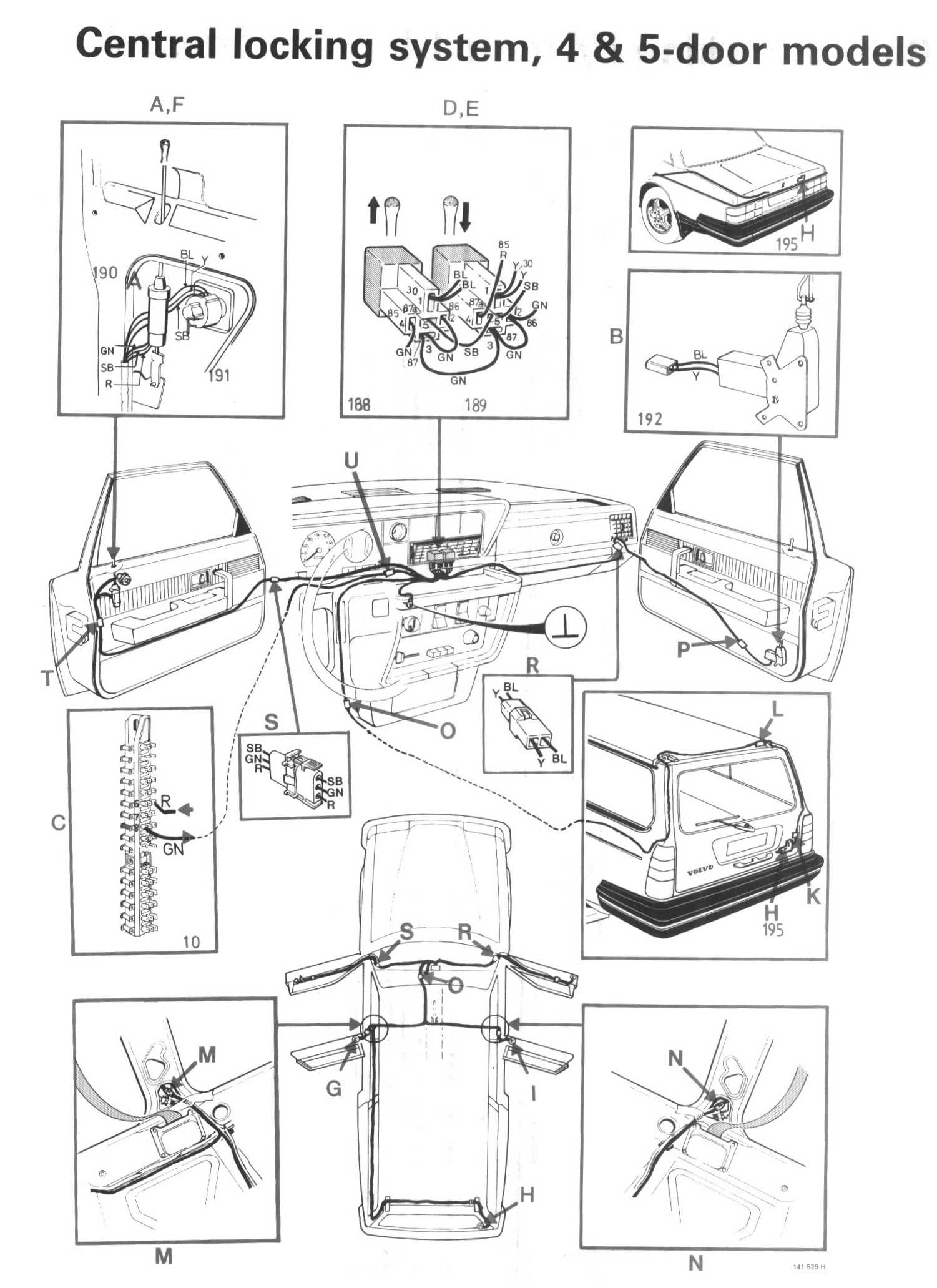

Location/Connector Views:

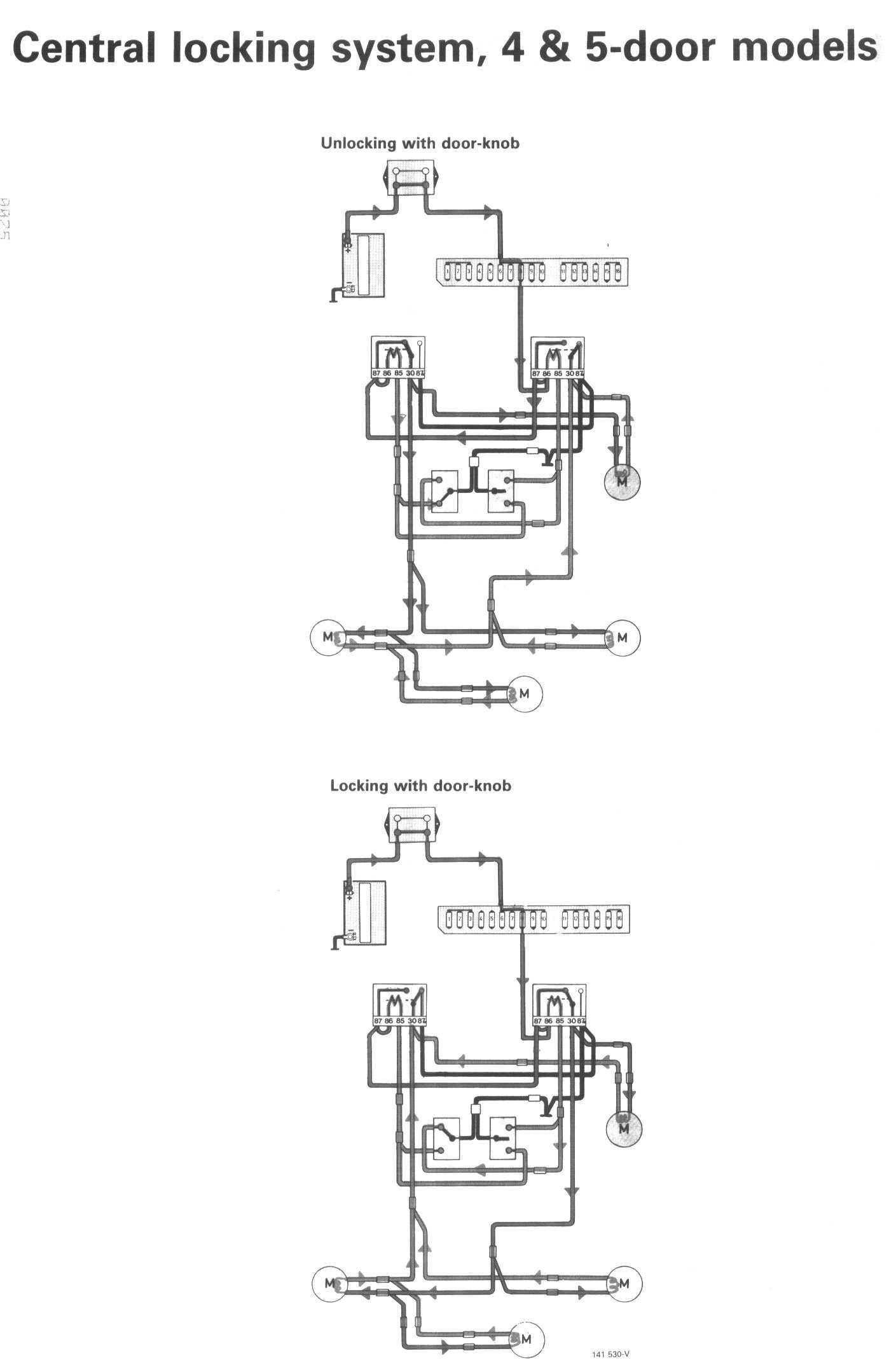

Unlocking / Locking With Door-knob:

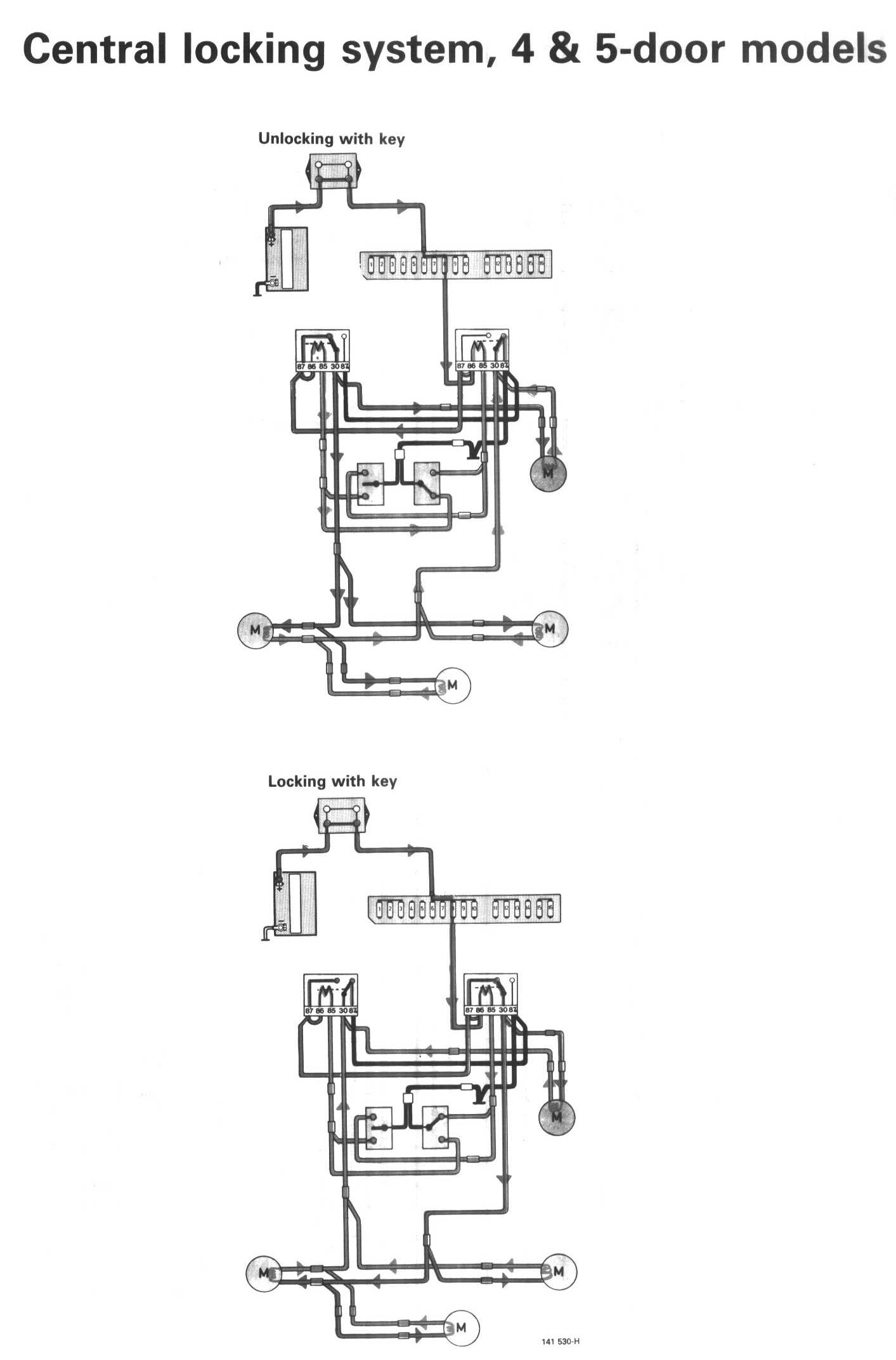

Unlocking / Locking With Key:

LEGEND
A Switch, link rod
B Motor, front right
C Fusebox
D Relay, unlocking
E Relay, locking
F Switch, key
G Motor, rear left
H Motor, tailgate/trunk lid
I Motor, rear right
K-U Connectors
