Shift Indicator - A/T

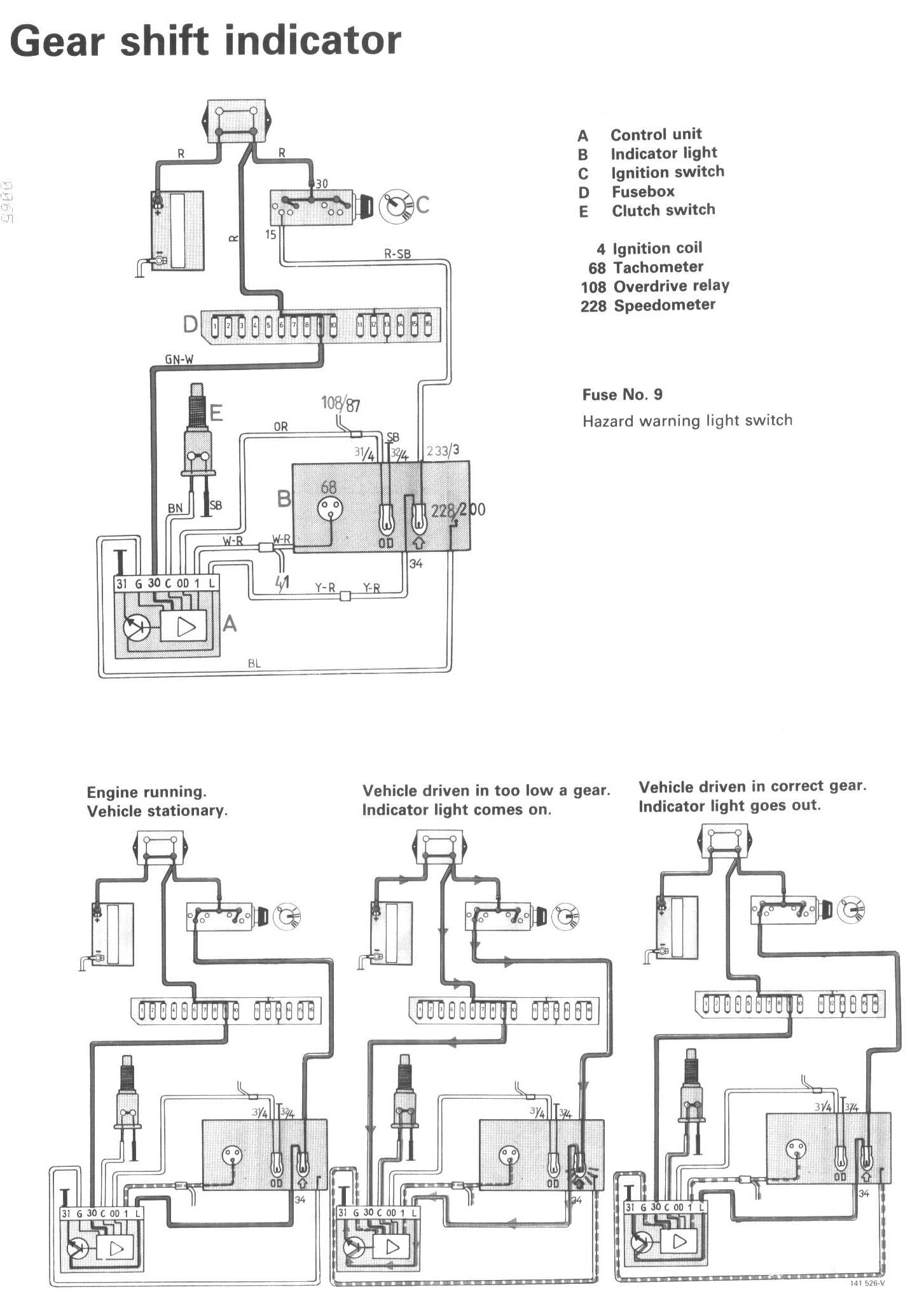

Wiring Diagrams:

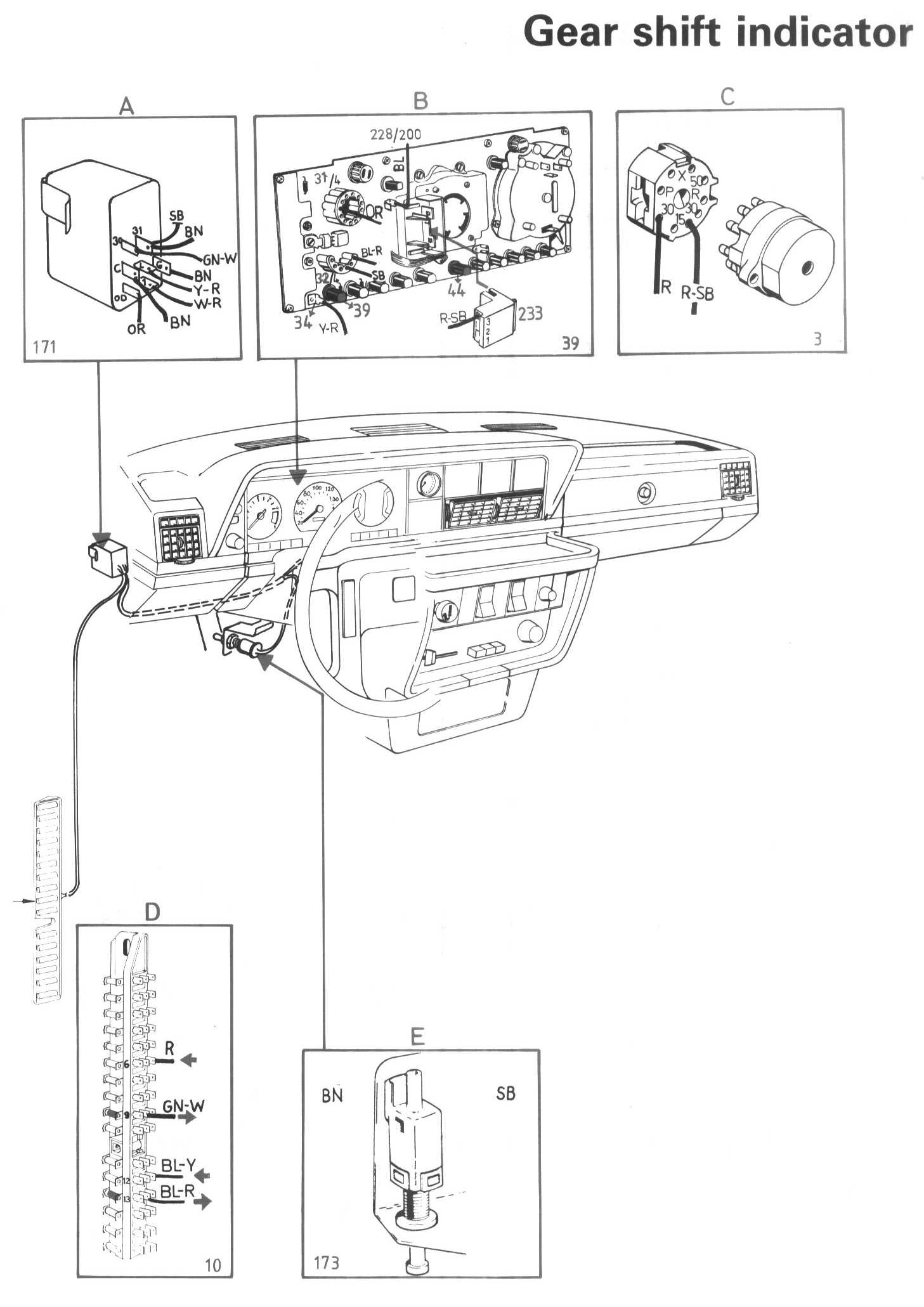

Location/Connector Views:

LEGEND
A Control unit
B Indicator light
C Ignition switch
D Fusebox
E Clutch switch
4 Ignition coil
68 Tachometer
108 Overdrive relay
228 Speedometer
