Tail Lamp

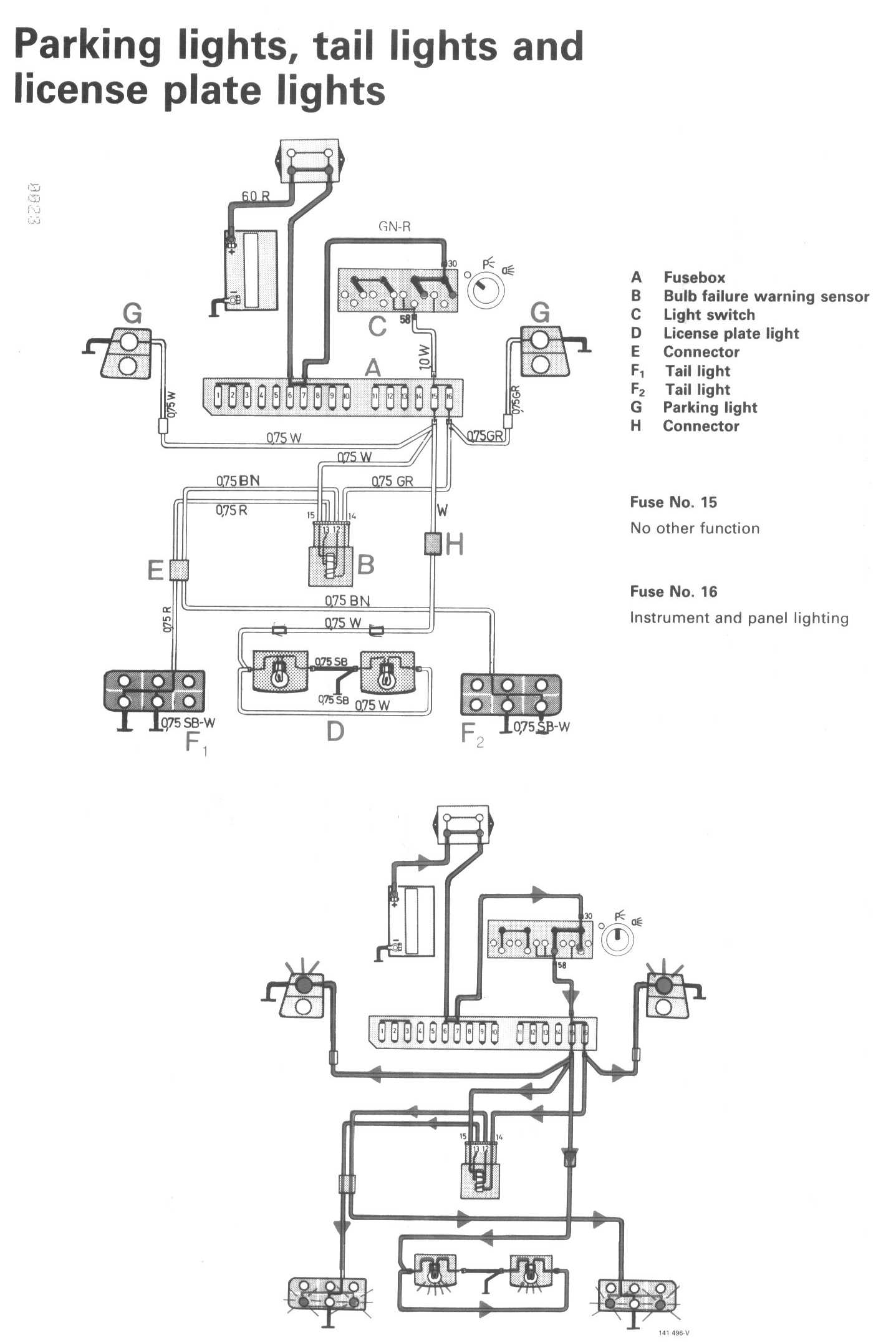

Wiring Diagrams:

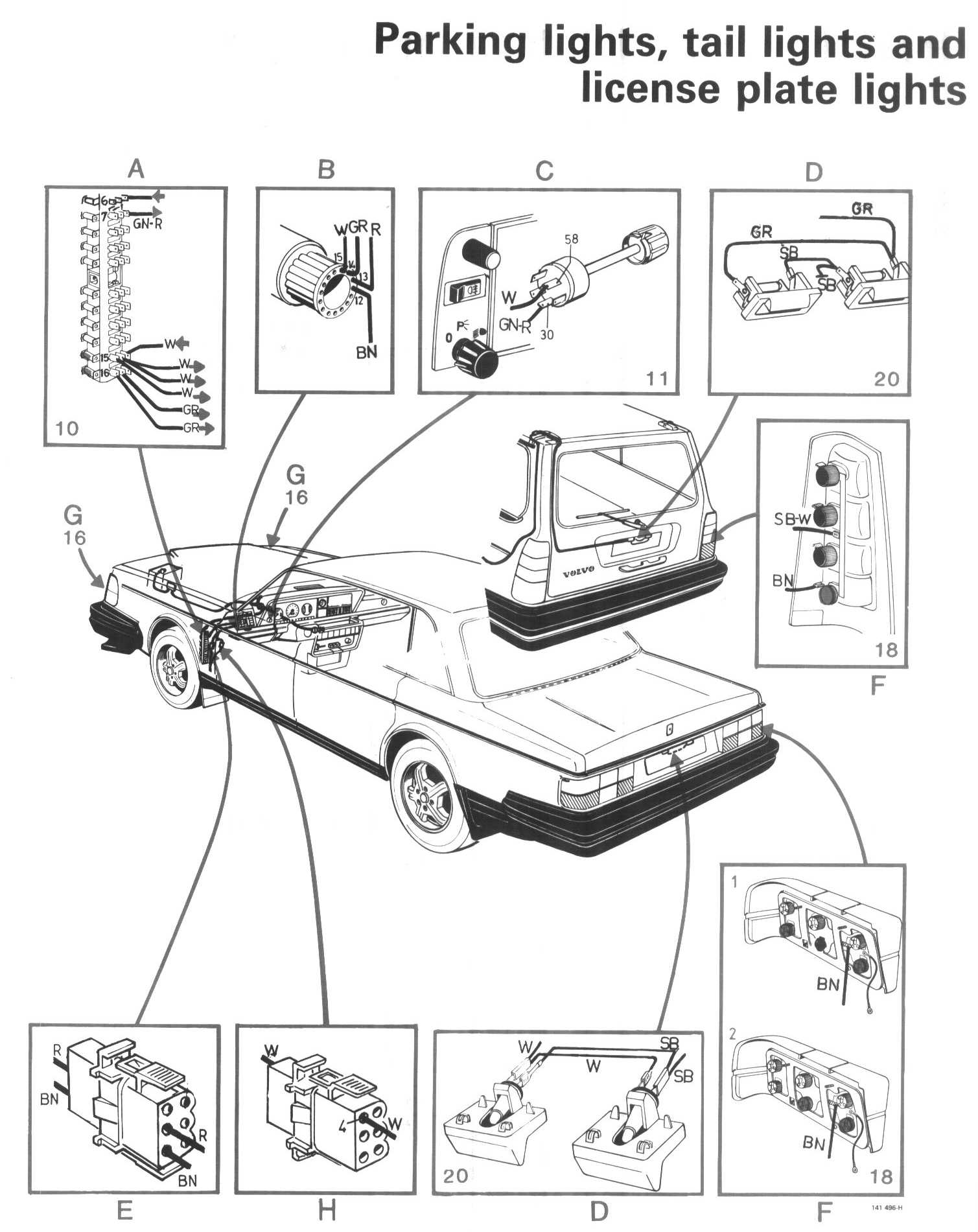

Location/Connector Views:

LEGEND
A Fusebox
B Bulb failure warning sensor
C Light switch
D License plate light
E Connector
F1 Tail light
F2 Tail light
G Parking light
H Connector
