With Chrysler Distributor P/N 1306059

TYPE 1 CHRYSLER DISTRIBUTOR (PIN 1306059)

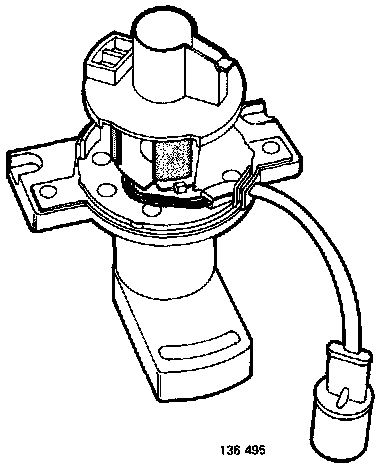

REPLACING HALL PICK-UP





Remove:
- Distributor cap
- Rotor arm/rotor
- Springs retaining Hall pick-up
- Disconnect connector
- Remove Hall pick-up.





Install:
- Hall pick-up
- Springs
- Rotor arm/rotor.
- Check that wires cannot be damaged by rotor.
- Refit distributor cap and reconnect connector.
- Install guide sleeves on connectors if needed.

REPLACING DISTRIBUTOR





Remove:
- HT leads from distributor cap
- Distributor cap.
- Turn crankshaft until rotor points towards rubber grommet.
- Disconnect connector.
- Remove distributor.





Install Distributor

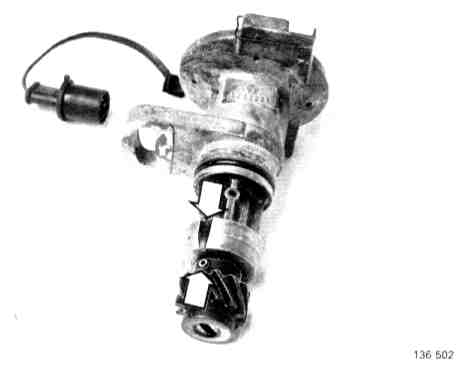

- Tubular pin protrudes more on one side than the other.
- Turn shaft until pin is opposite groove in distributor body.
- Fit distributor.

Fit:
- Rotor
- Distributor cap and reconnect HT leads.
- Reconnect connector.
- Check/adjust basic ignition timing.
