Engine Compartment and Trunk Light
Engine Compartment and Trunk Light
Wiring Diagrams:

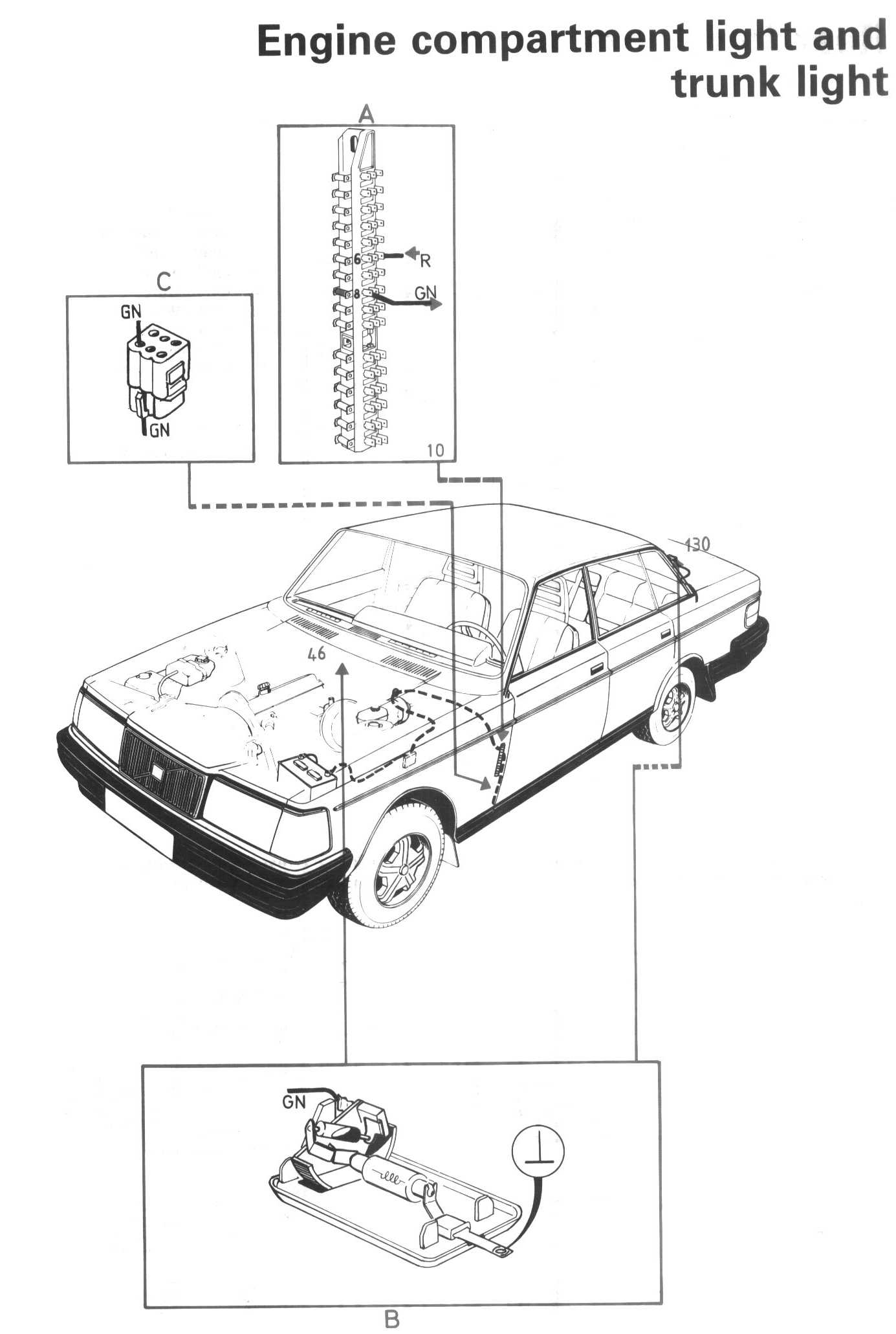

Location/Connector Views:
LEGEND
A
Fusebox
B
Engine compartment light and trunk Eight
C
Connector
