Horn

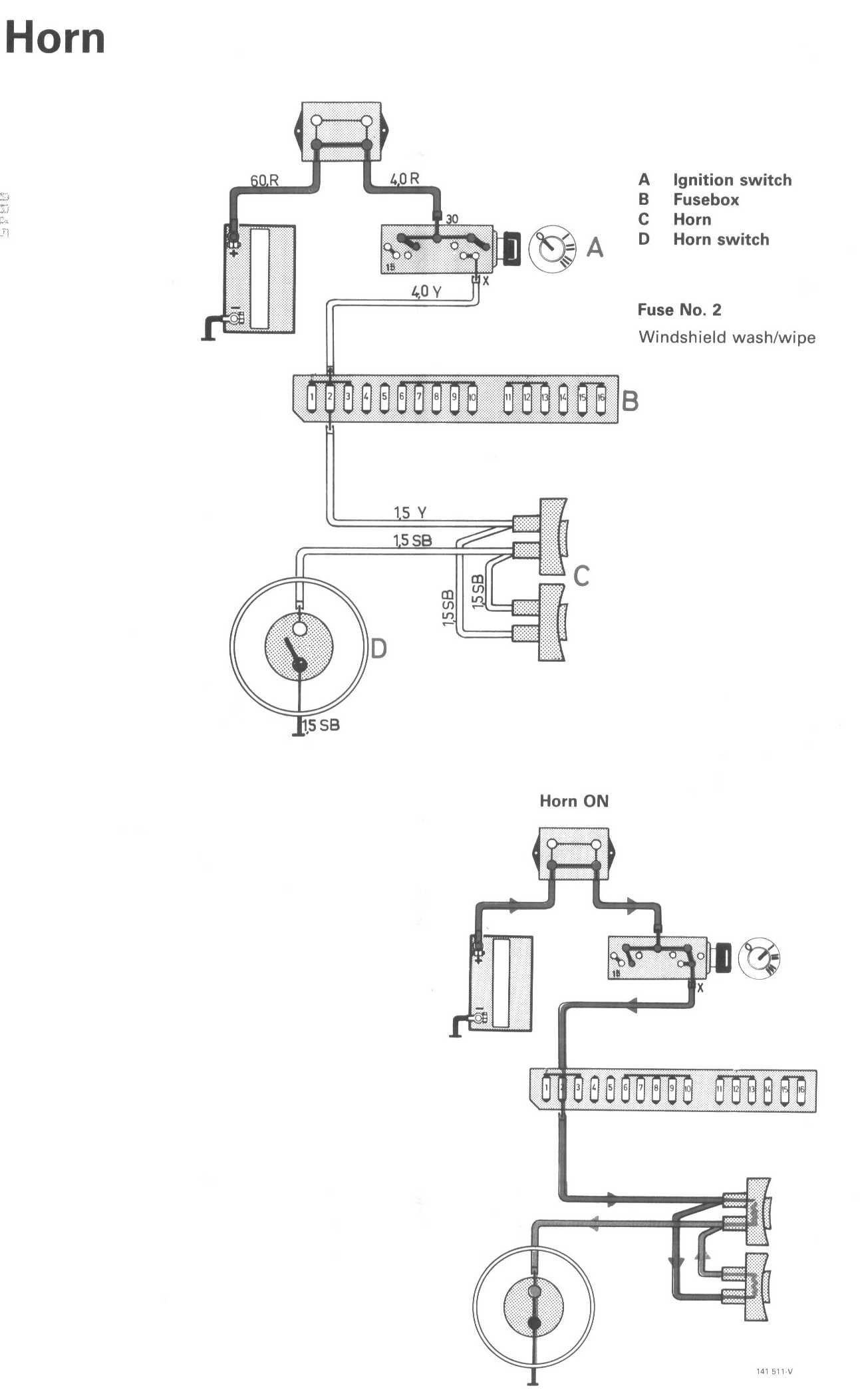

Wiring Diagrams:

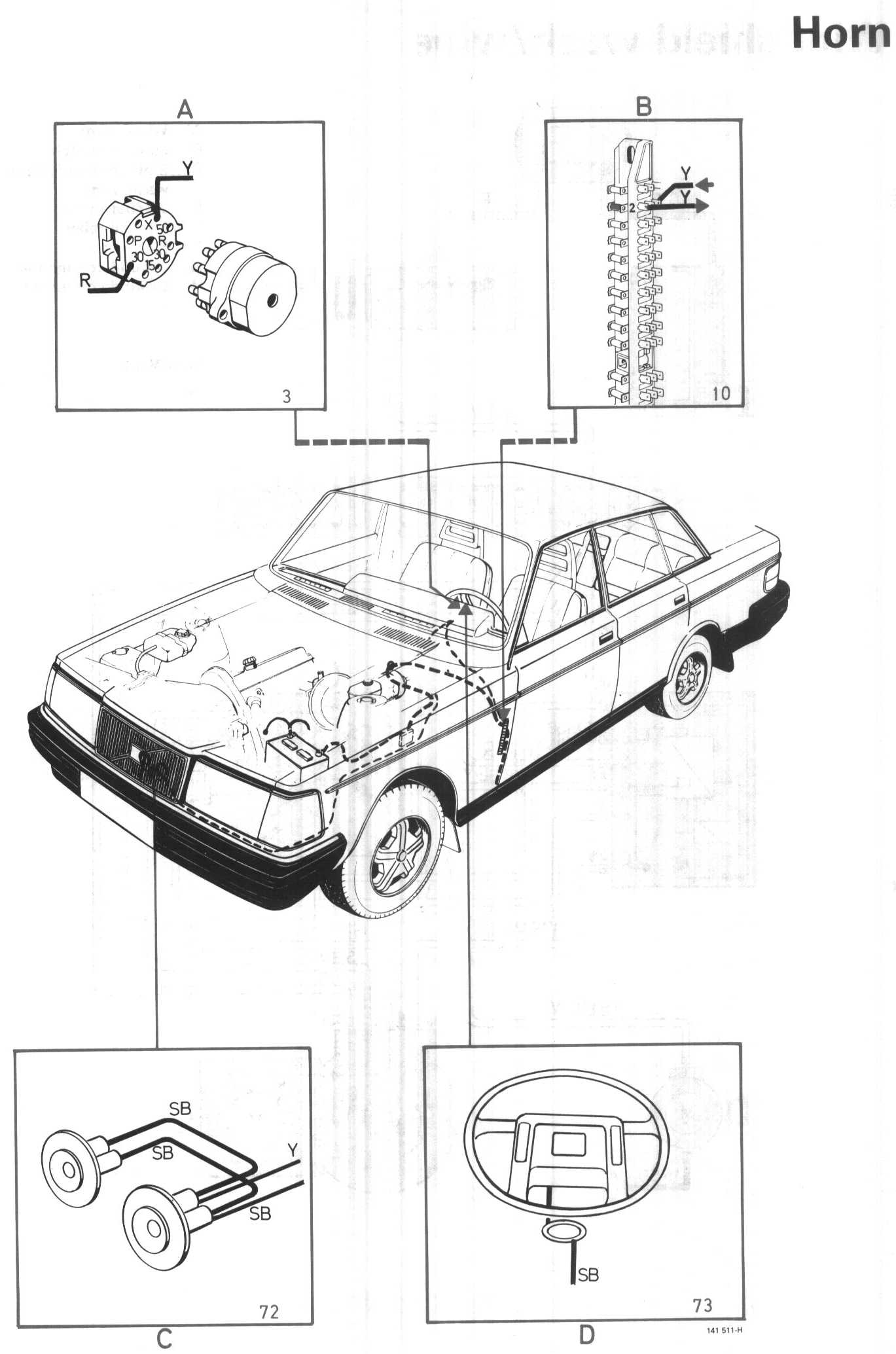

Location/Connector Views:




LEGEND
A Ignition switch
B Fusebox
C Horn
D Horn switch
