Lighting Instruments, and Controls

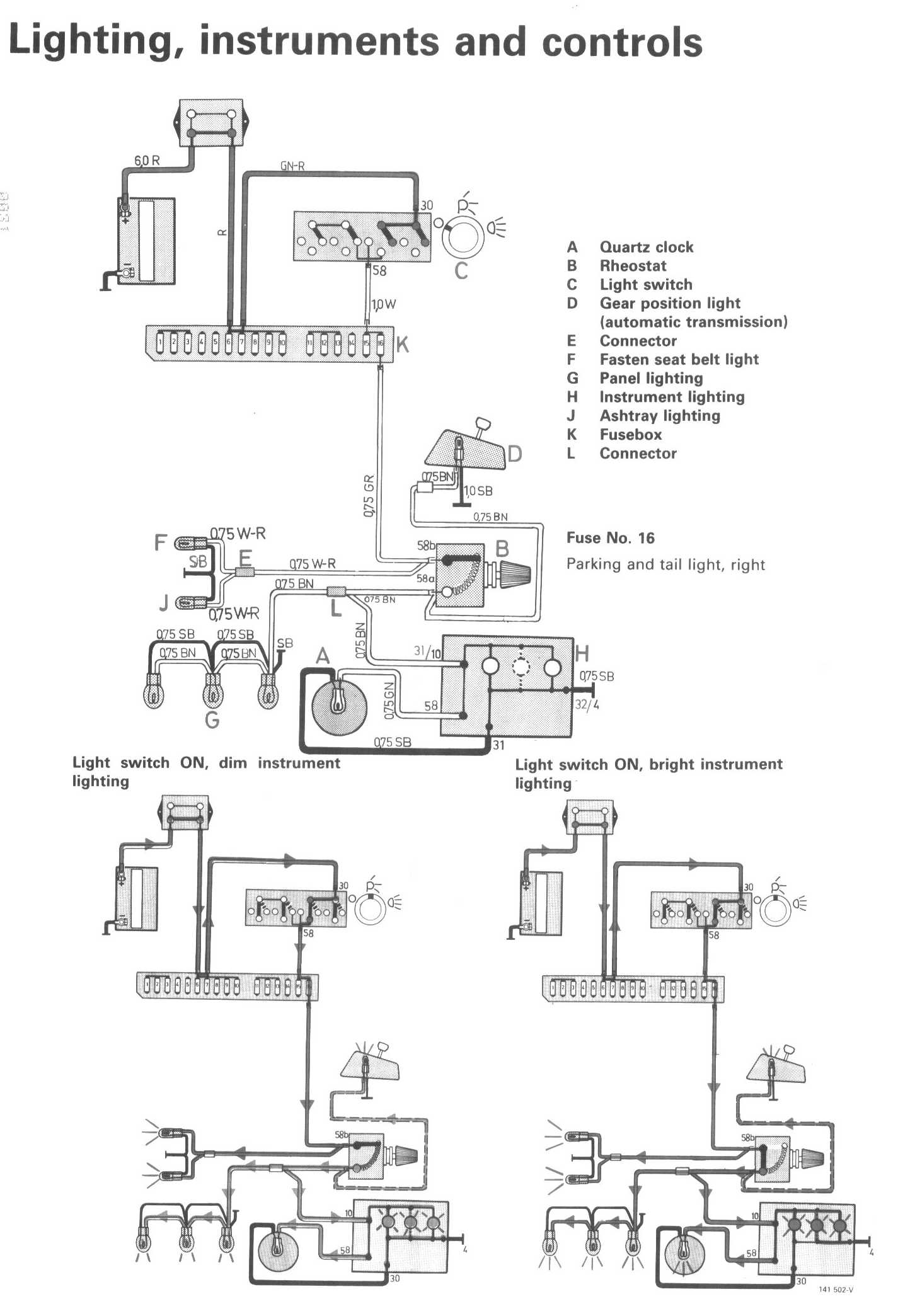

Wiring Diagrams:

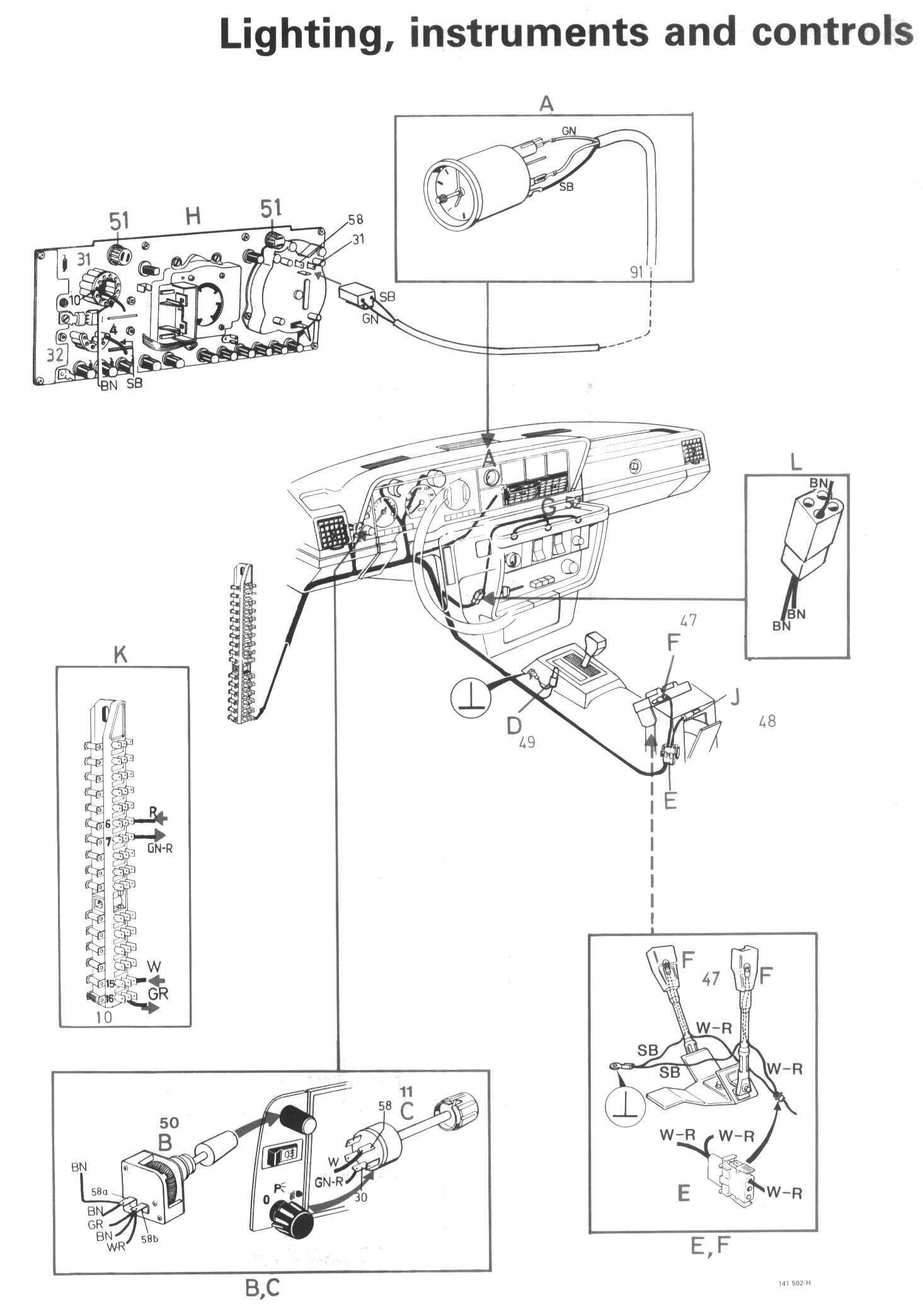

Location/Connector Views:

LEGEND
A Quartz clock
B Rheostat
C Light switch
D Gear position light (automatic transmission)
E Connector
F Fasten seat belt light
G Panel lighting
H Instrument lighting
J Ashtray lighting
K Fusebox
L Connector
